Control Valve Body Cover Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

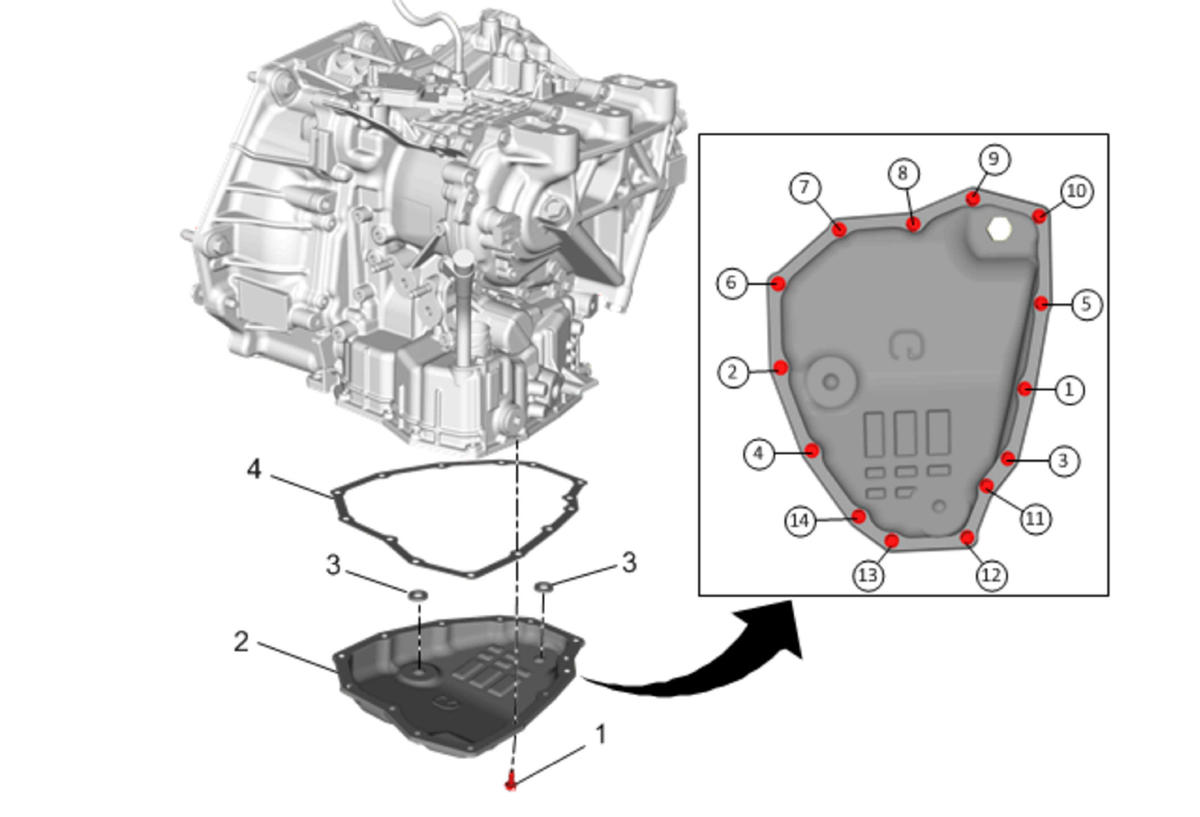

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drain the transmission fluid. Refer to Transmission Fluid Drain and Fill (Maintenance) Transmission Fluid Drain and Fill (Repair) . |
|
| 1 | Control Valve Body Cover Bolt (Qty: 14)
CAUTION:
Refer to Fastener Caution
.
NOTE:
Install all control valve body cover bolts by hand then tighten all bolts in specified sequence. Tighten 6 N.m (53 lb in) |
| 2 | Control Valve Body Cover |
| 3 | Magnet (Qty: 2) |
| 4 | Gasket
NOTE:
Do not reuse the gasket.
|
