Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
  2. Without draining the coolant or removing the hoses, remove and position aside the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  3. Remove the shift lever and selector lever cable (1) from the shift control housing (3).
    Fig 1: Shift Lever And Selector Lever Cable, Shift Control Housing And Cable Bracket
    GM4039264Courtesy of GENERAL MOTORS COMPANY
  4. Remove the shift lever and selector lever cable (2) from the selector and shift lever cable bracket (4).
  5. Disconnect the oxygen sensor electrical connector (1).

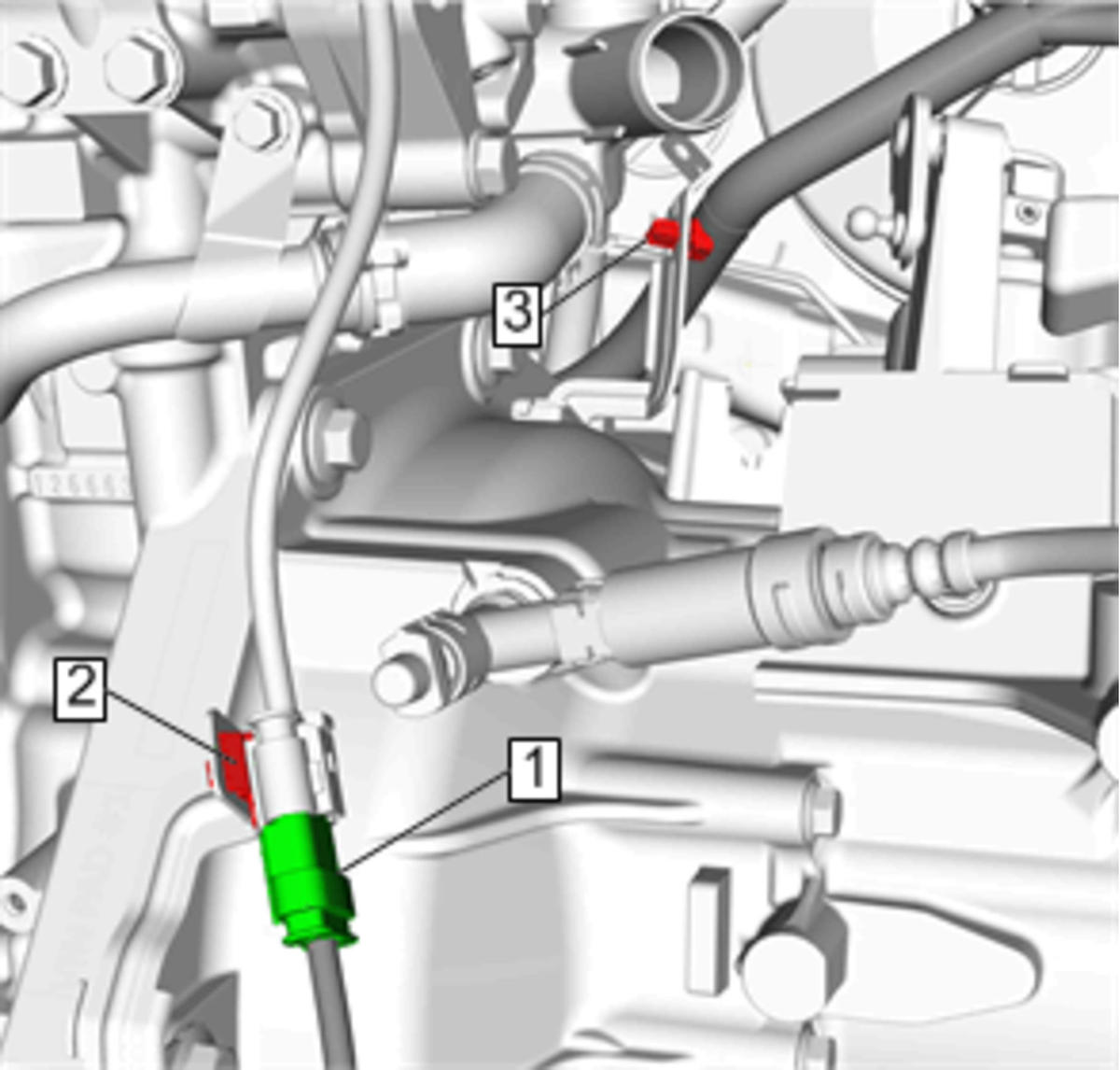

    Fig 2: Oxygen Sensor Electrical Connector, Connector Clip And Wiring Harness Retainer
    GM4190763Courtesy of GENERAL MOTORS COMPANY
  6. Unclip the connector clip (2) and the wiring harness retainer (3) from the oxygen sensor electrical connector bracket and the engine wiring harness bracket.
  7. Remove the clutch actuator cylinder front pipe retaining clip (1).
    Fig 3: Clutch Actuator Cylinder Front Pipe And Retaining Clip
    GM4010383Courtesy of GENERAL MOTORS COMPANY
  8. Disconnect the clutch actuator cylinder front pipe (2) from the clutch actuator cylinder pipe elbow.
  9. Disconnect the backup lamp switch electrical connector (1).

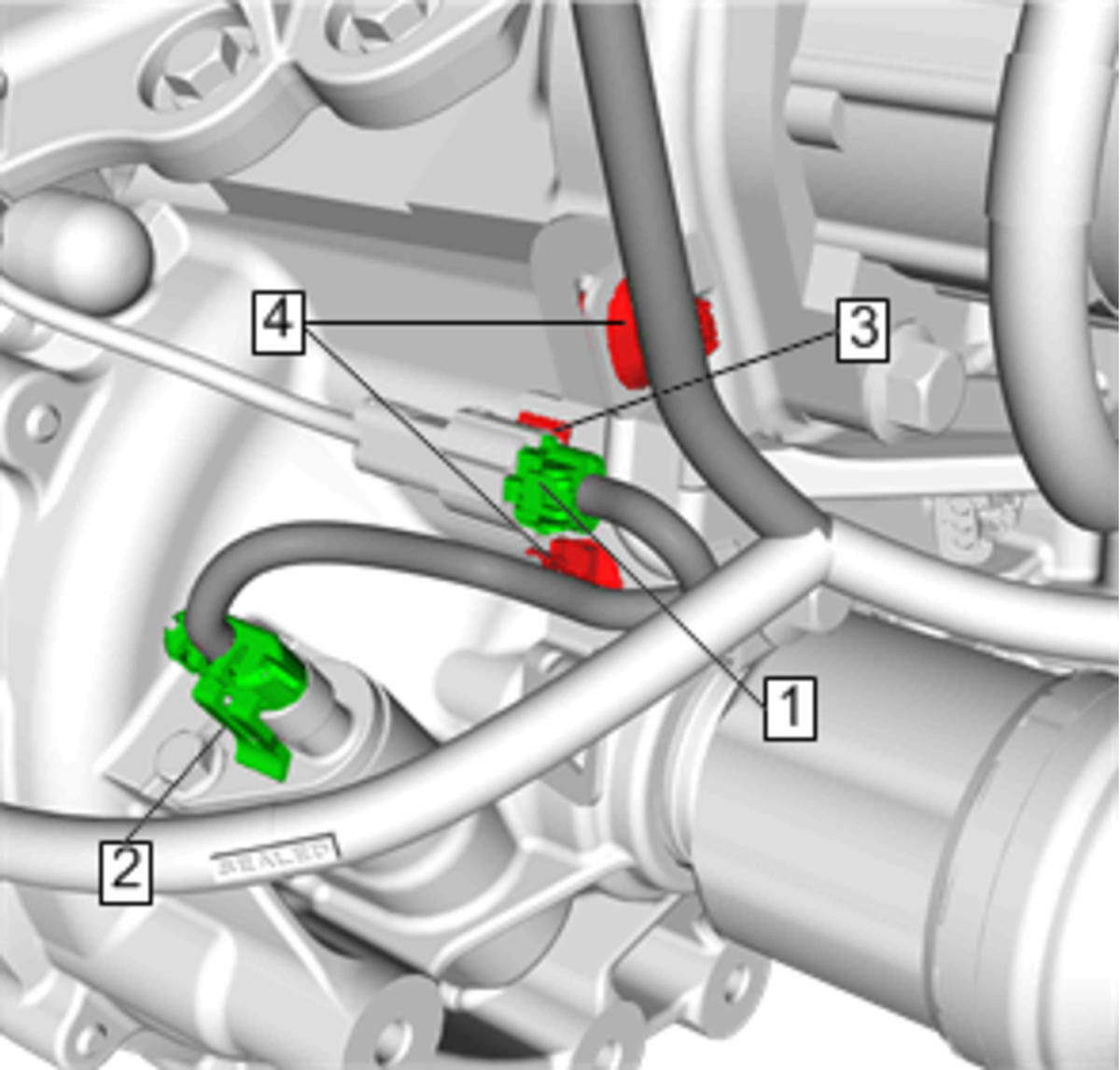

    Fig 4: Electrical Connectors, Connector Clip And Wiring Harness Retainers
    GM4190765Courtesy of GENERAL MOTORS COMPANY
  10. Disconnect the electrical connector (2) from the vehicle speed sensor, if equipped.
  11. Unclip the connector clip (3) and the wiring harness retainers (4) from the engine start cable bracket.
  12. Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q)Exhaust Muffler Replacement (LV7) .
  13. Drain the transmission fluid. Refer to Transmission Fluid Drain and Fill .
  14. Remove the both front wheel drive shafts (1) from the transmission. Refer to Front Wheel Drive Shaft Replacement .
    Fig 5: Front Wheel Drive Shaft
    GM4039284Courtesy of GENERAL MOTORS COMPANY
  15. Remove the transmission upper bolts (1) from the transmission.

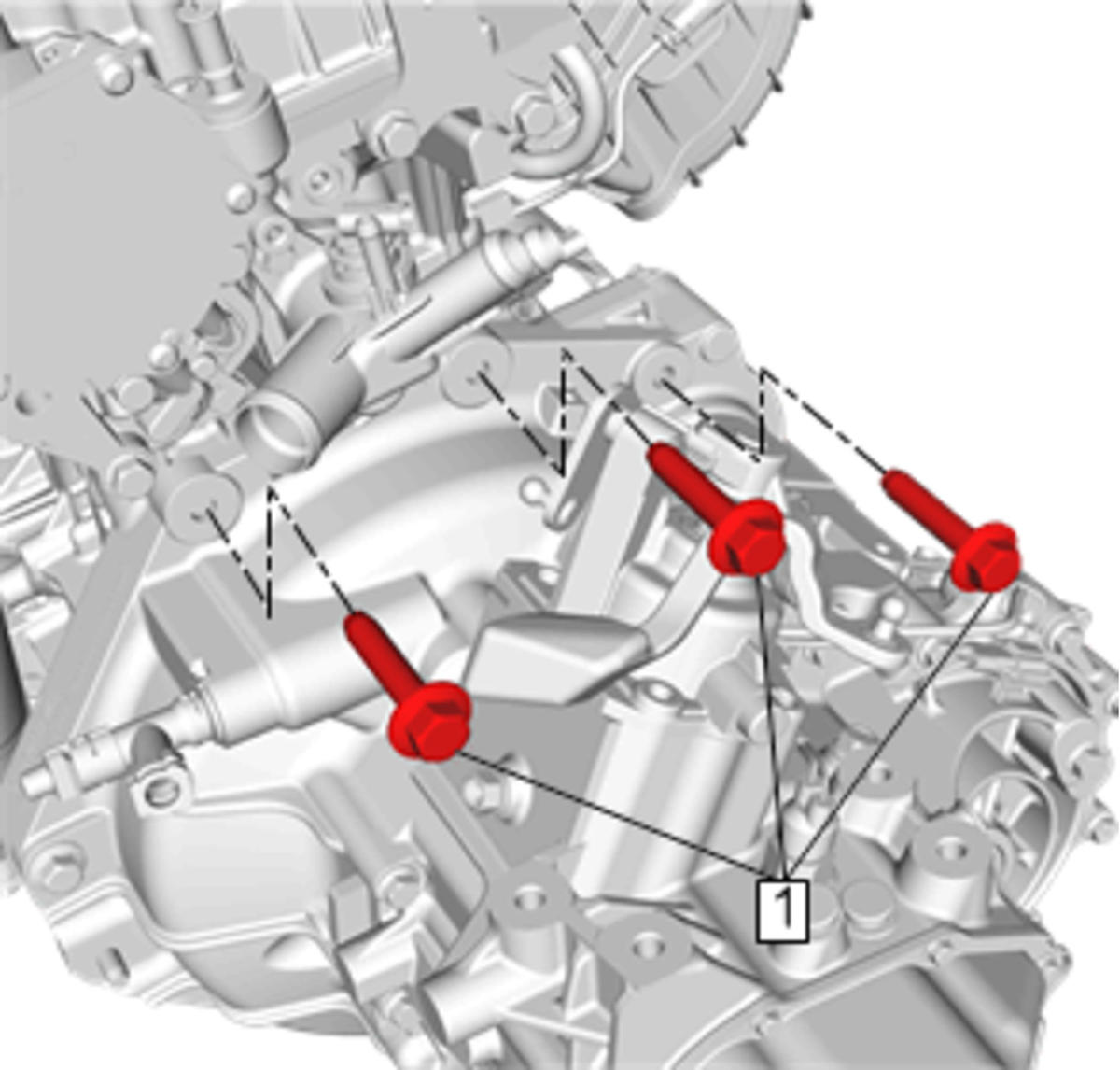

    Fig 6: Transmission Upper Bolts
    GM4190768Courtesy of GENERAL MOTORS COMPANY
  16. Install the engine support fixture. Refer to Engine Support Fixture (LV7)Engine Support Fixture (L5Q) .
  17. Remove the drivetrain and front suspension cradle. Refer to Drivetrain and Front Suspension Cradle Replacement .
  18. Remove the transmission rear mount bracket. Refer to Transmission Rear Mount Bracket Replacement .
  19. Remove the transmission mount - left side. Refer to Transmission Mount Replacement - Left Side .
  20. Remove the transmission mount bracket - left side. Refer to Transmission Mount Bracket Replacement - Left Side .
  21. Support the transmission with a suitable jack.
  22. Remove the transmission lower bolts (1).

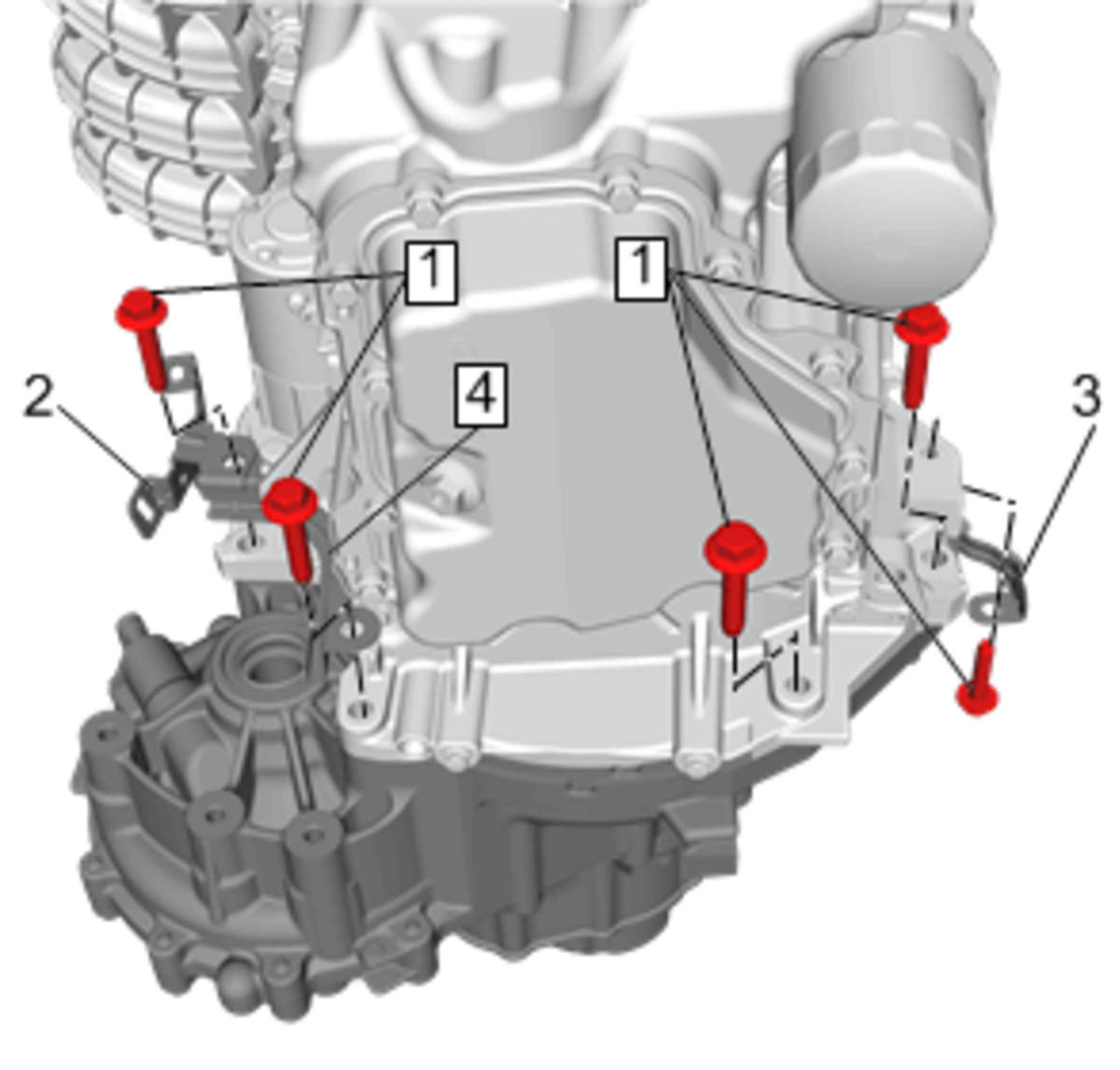

    Fig 7: Transmission Lower Bolts, Engine Starter Cable Bracket, Oxygen Sensor Connector Bracket And Clutch Housing Cover
    GM4190891Courtesy of GENERAL MOTORS COMPANY
  23. Remove the engine starter cable bracket (2), oxygen sensor connector bracket (3) and the clutch housing cover (4).
  24. Separate the transmission from the engine.
  25. Lower the transmission with the transmission jack far enough to remove the transmission.
