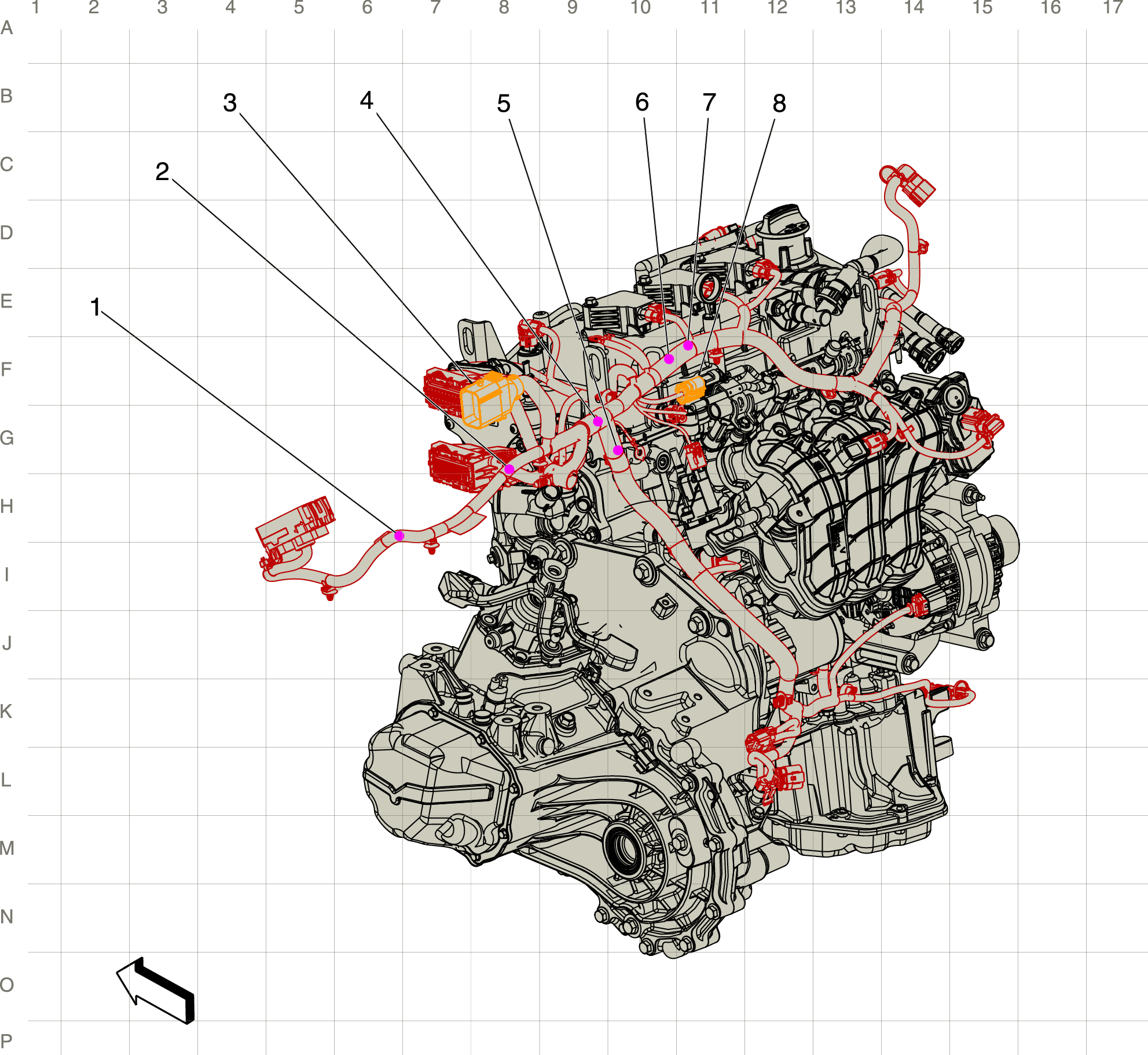

Engine Harness Routing (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| J115 Engine Harness |
| J117 Engine Harness |
| X100 Body Harness to Engine Harness X100 Body Harness to Engine Harness |
| J118 Engine Harness |
| J119 Engine Harness |
| J121 Engine Harness |
| J122 Engine Harness |
| X160 Engine Harness to Fuel Injector Extension Harness X160 Engine Harness to Fuel Injector Harness (L5Q) |
