Body Harness Routing - Left Front of the Engine Compartment (LHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

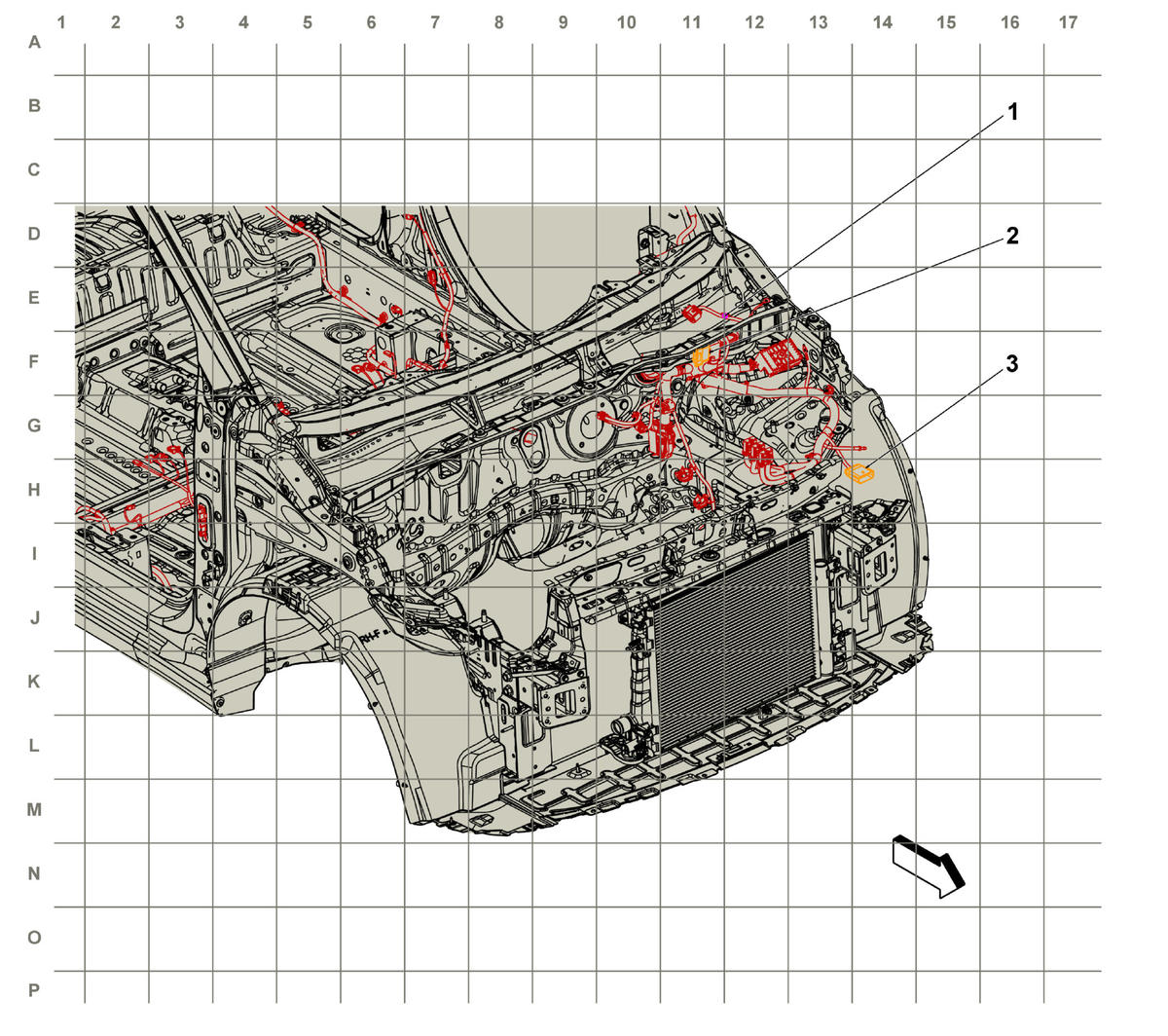

Fig 1: Body Harness Routing - Left Front of the Engine Compartment (LHD)
GM4041157Courtesy of GENERAL MOTORS COMPANY
Items
J300 Body Harness
X100 Body Harness to Engine Harness X100 Body Harness to Engine Harness
X105 Forward Lamp Harness to Body Harness X105 Forward Lamp Harness to Body Harness
