Instrument Panel Outer Air Outlet Replacement - Right Side
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel trim plate applique assembly - passenger side. Refer to Instrument Panel Trim Plate Applique Replacement (Driver)Instrument Panel Trim Plate Applique Replacement (Passenger) . |
|

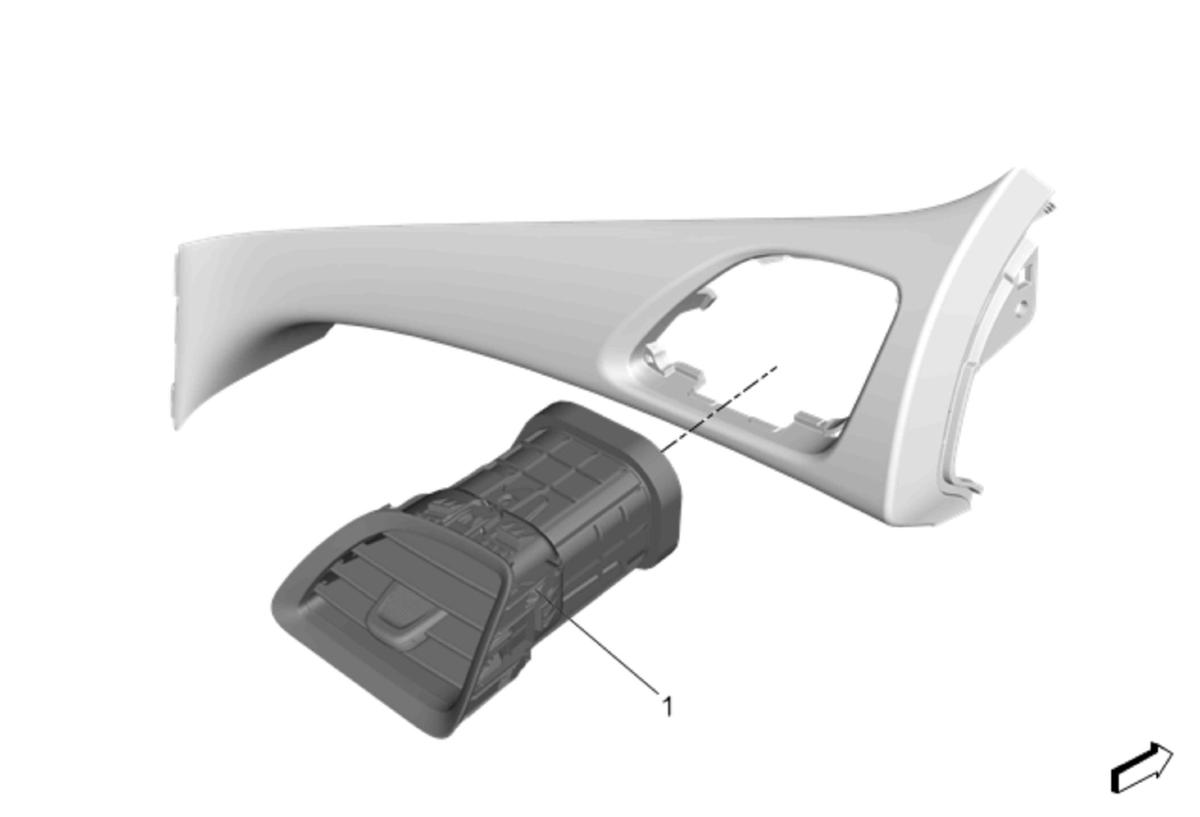

| 1 | Instrument Panel Outer Air Outlet
NOTE:
Carefully use a flat-bladed plastic trim remover to remove the instrument panel outer air outlet.
NOTE:
Cover the I/P trim plate applique with masking tapes not to damage to the surface of I/P trim plate applique.
|
