Ignition and Start Switch Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

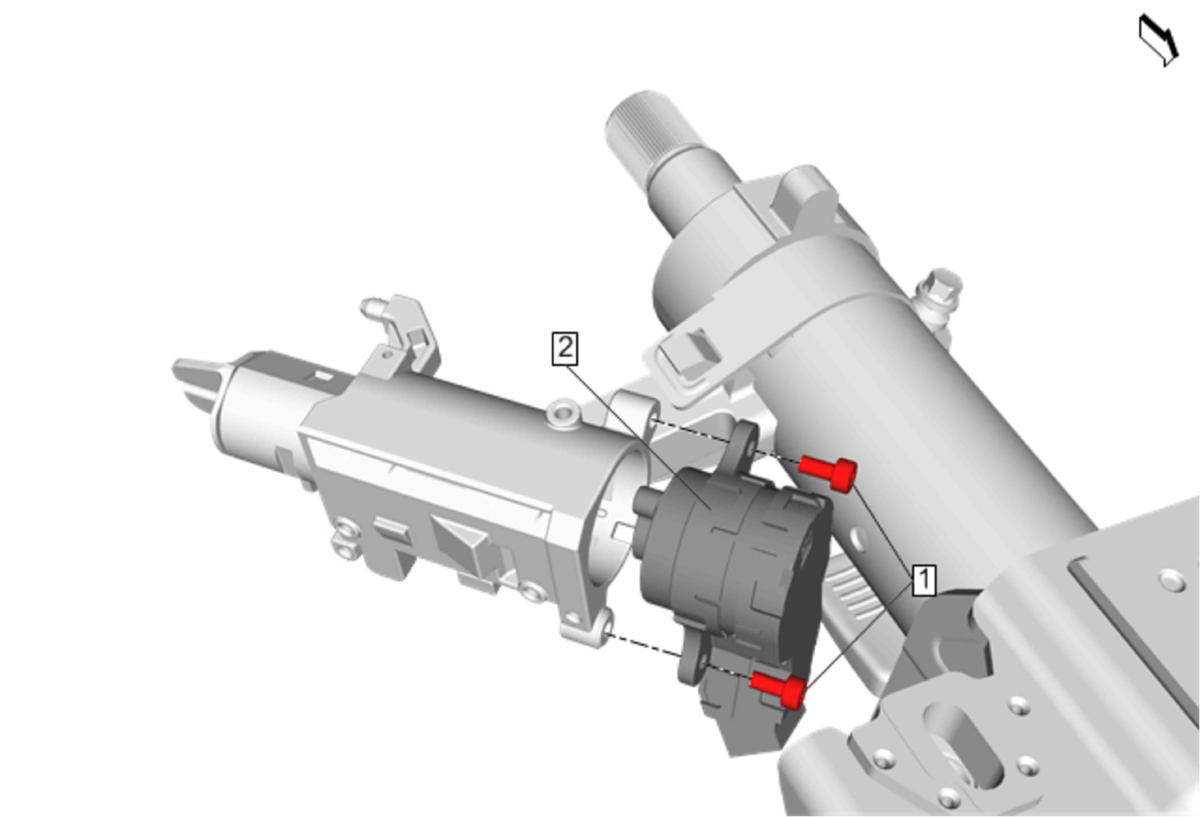

Fig 1: Ignition And Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Remove the steering column lower trim cover. Steering Column Lower Trim Cover Replacement Remove the ignition lock cylinder theft deterrent sensor cover. Ignition Lock Cylinder Theft Deterrent Sensor Cover Replacement
1	Ignition and Start Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Ignition and Start Switch Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Remove the steering column lower trim cover. Steering Column Lower Trim Cover Replacement
Remove the ignition lock cylinder theft deterrent sensor cover. Ignition Lock Cylinder Theft Deterrent Sensor Cover Replacement

Ignition and Start Switch Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Ignition and Start Switch
Procedure
Disconnect the electrical connector.
