Sunroof Sunshade Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

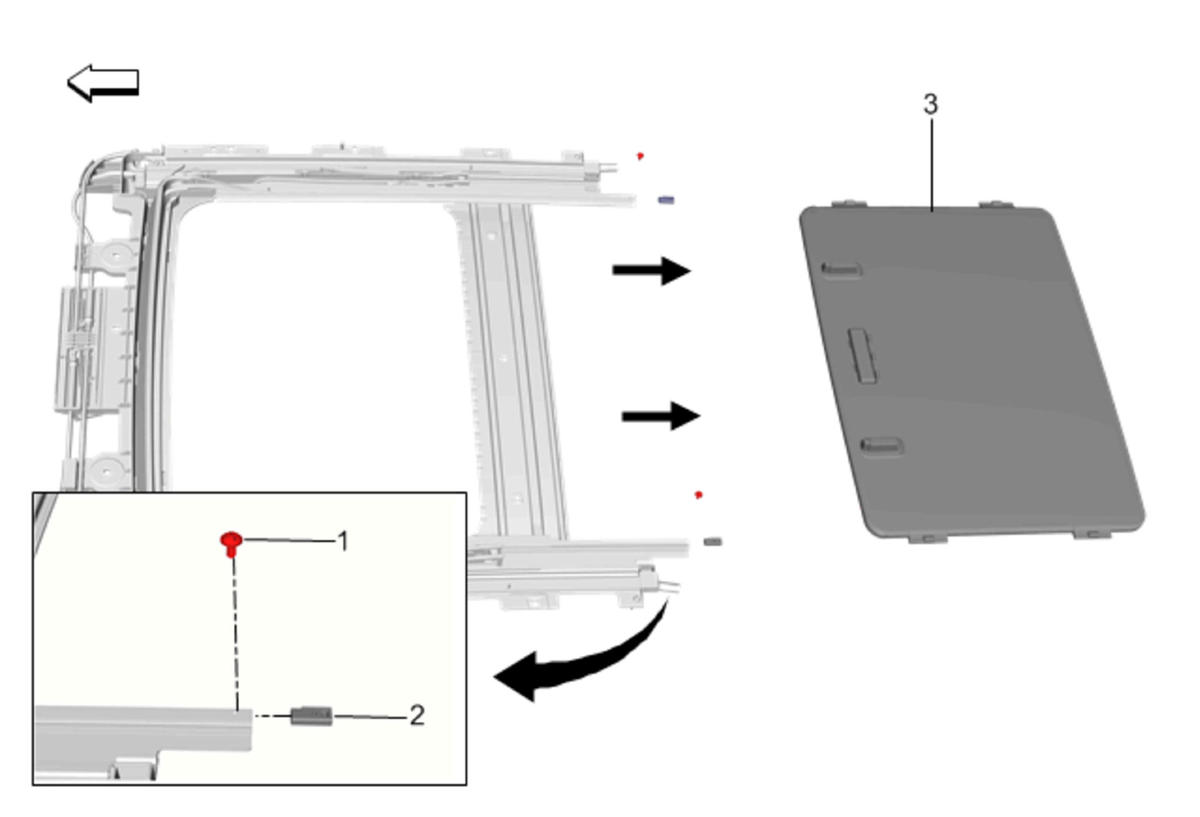

Fig 1: Sunroof Sunshade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the sunroof module. Refer to Sunroof Module Assembly Replacement . Remove the sunroof housing drain gutter. Refer to Sunroof Housing Drain Gutter Replacement .
1	Sunshade Stopper Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Sunshade Stopper
3	Sunroof Sunshade Procedure The sunshade must be removed from the rear of the sunroof module. Slide the sunshade rearward releasing it from the module assembly.
