Sunroof Housing Drain Gutter Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

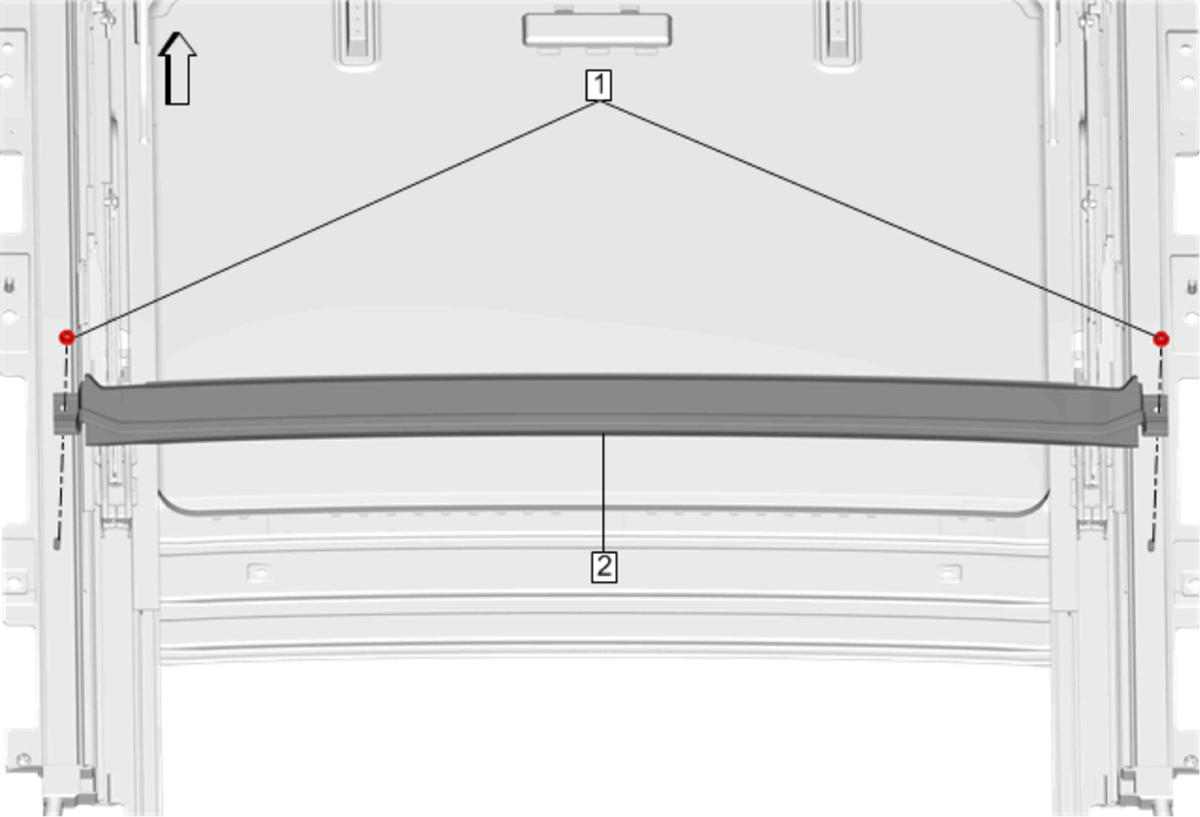

| Callout | Component Name |
|---|---|
| Preliminary Procedures Lower the sunroof module assembly. Refer to Sunroof Module Assembly Replacement . |
|
| 1 | Sunroof Module Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 4 N.m (35 lb in) |
| 2 | Sunroof Housing Drain Gutter |
