Right Side of the Passenger Compartment Components (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

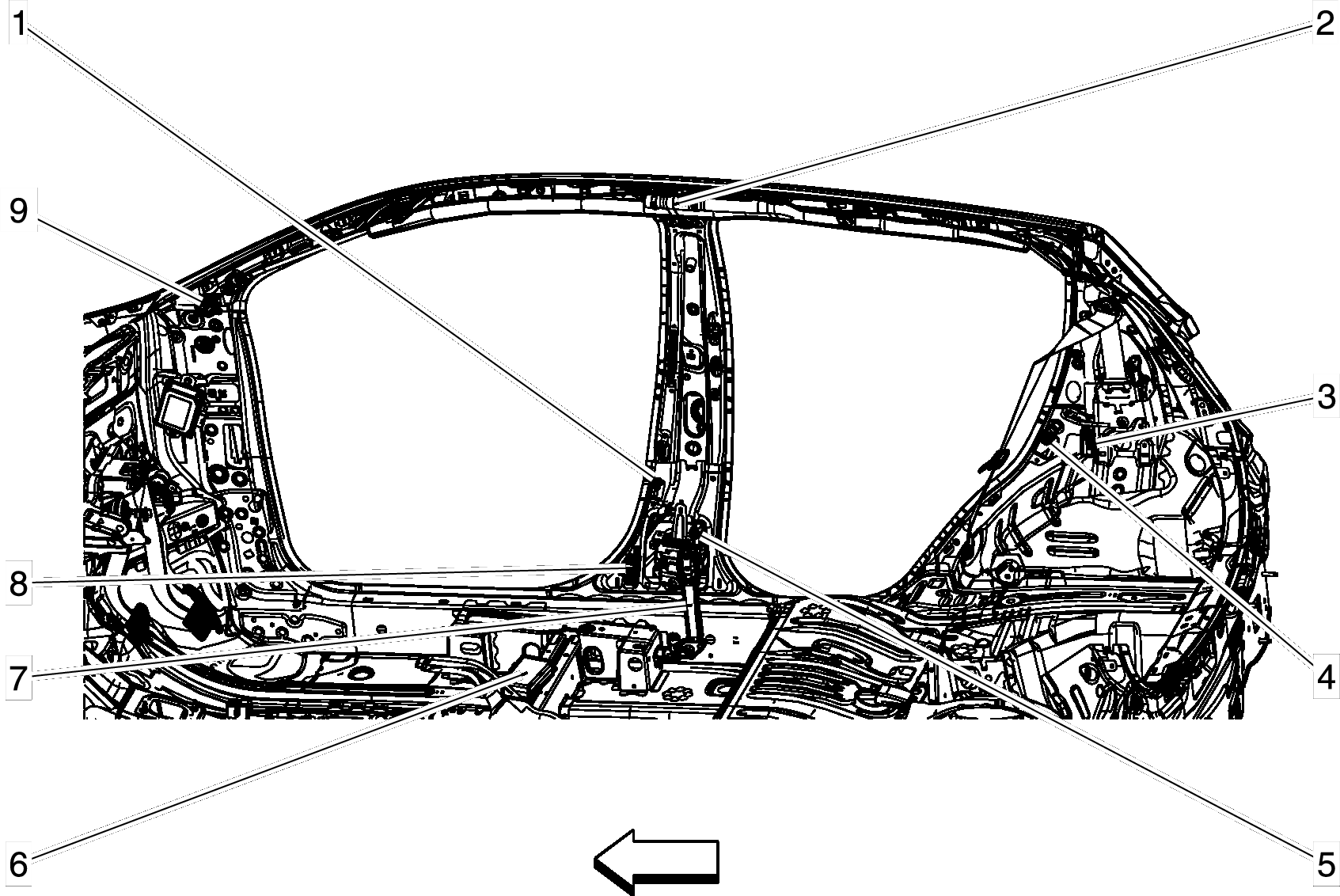

Fig 1: Right Side of the Passenger Compartment Components (RHD)
GM4167360Courtesy of GENERAL MOTORS COMPANY
Items
B28D Door Ajar Switch - Driver B28D Door Ajar Switch - Driver
F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
K77 Remote Control Door Lock Receiver (XL7 or XL8) K77 Remote Control Door Lock Receiver
B28RR Door Ajar Switch - Right Rear B28RR Door Ajar Switch - Right Rear
F112D Seat Belt Retractor Pretensioner - Driver (AWV or AYC) F112D Seat Belt Retractor Pretensioner - Driver
C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery UE1
F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
B63RF Side Impact Sensor - Right Front (AYC, AYF) B63RF Side Impact Sensor - Right Front AYC/AYFB63RF Side Impact Sensor - Right Front AYF
P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter
