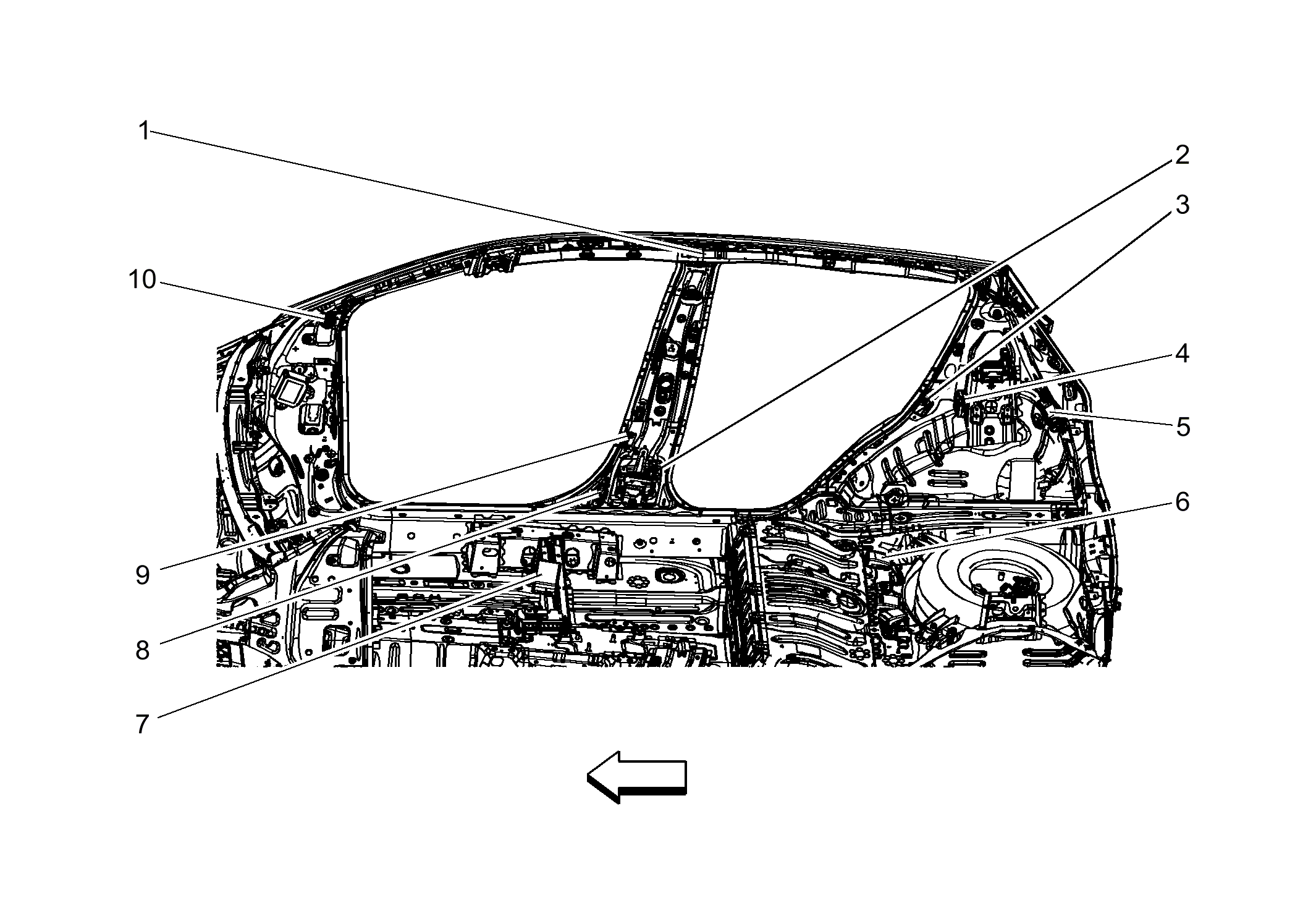

Right Side of the Passenger Compartment Components (LHD)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right |
| F112P Seat Belt Retractor Pretensioner - Passenger (AWV or AYC) F112P Seat Belt Retractor Pretensioner - Passenger |
| B28RR Door Ajar Switch - Right Rear B28RR Door Ajar Switch - Right Rear |
| K77 Remote Control Door Lock Receiver (XL7 or XL8) K77 Remote Control Door Lock Receiver |
| K86 Advanced Parking Assist Control Module (UD7) |
| B88MR Seat Belt Switch - Rear Middle |
| C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery UE1 |
| B63RF Side Impact Sensor - Right Front (AYC, AYF) B63RF Side Impact Sensor - Right Front AYC/AYFB63RF Side Impact Sensor - Right Front AYF |
| B28P Door Ajar Switch - Passenger B28P Door Ajar Switch - Passenger |
| P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
