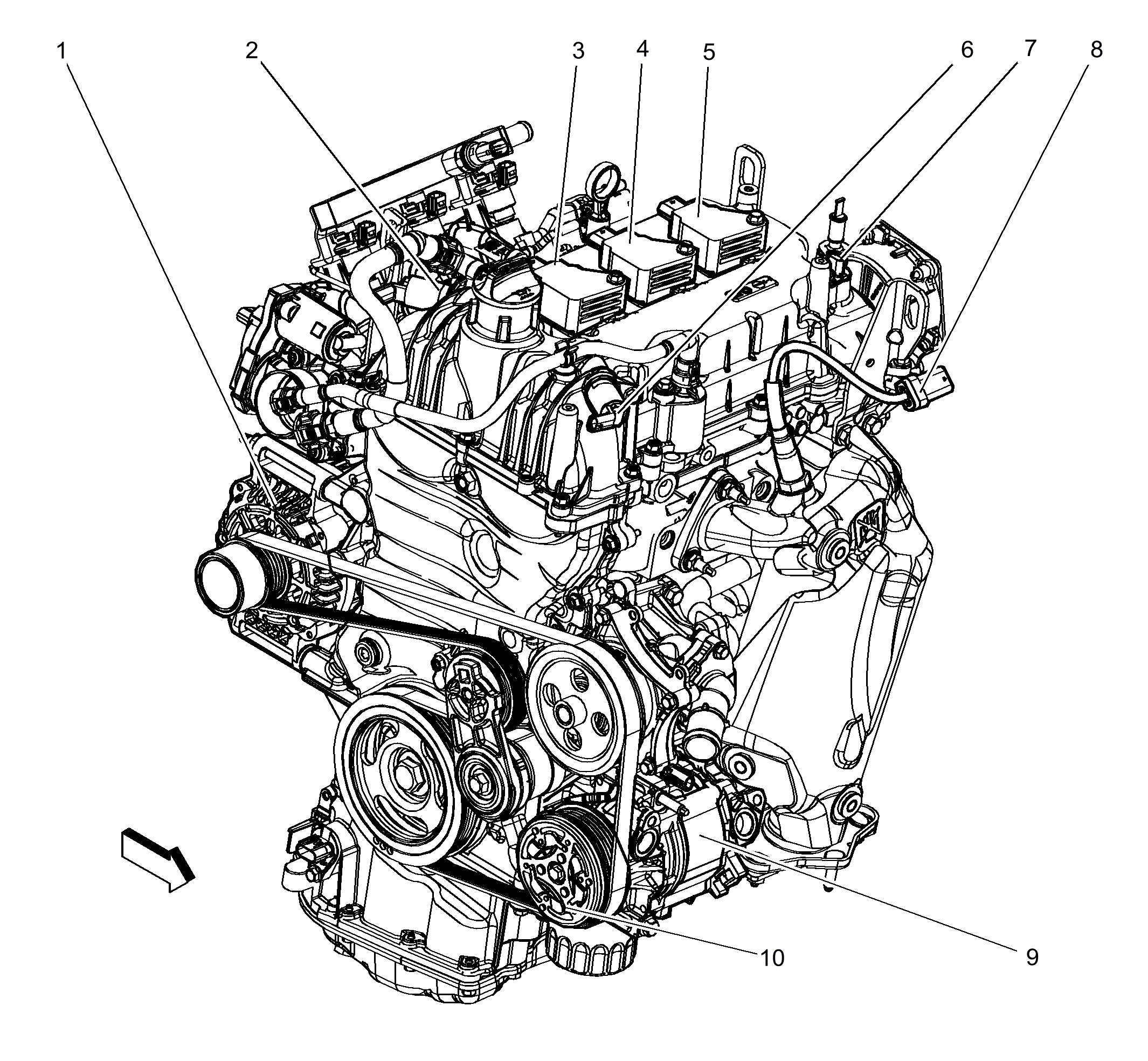

Engine Components - Right Front (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| G13 Generator G13 Generator X1G13 Generator X2 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| T8A Ignition Coil 1 (LQ5 or LV7) T8A Ignition Coil 1 (L5Q/LV7) |
| T8B Ignition Coil 2 (LQ5 or LV7) T8B Ignition Coil 2 (L5Q/LV7) |
| T8C Ignition Coil 3 (LQ5 or LV7) T8C Ignition Coil 3 (L5Q/LV7) |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| G1 A/C Compressor G1 A/C Compressor |
| Q2 A/C Compressor Clutch |
