Front Grille Opening Cover Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

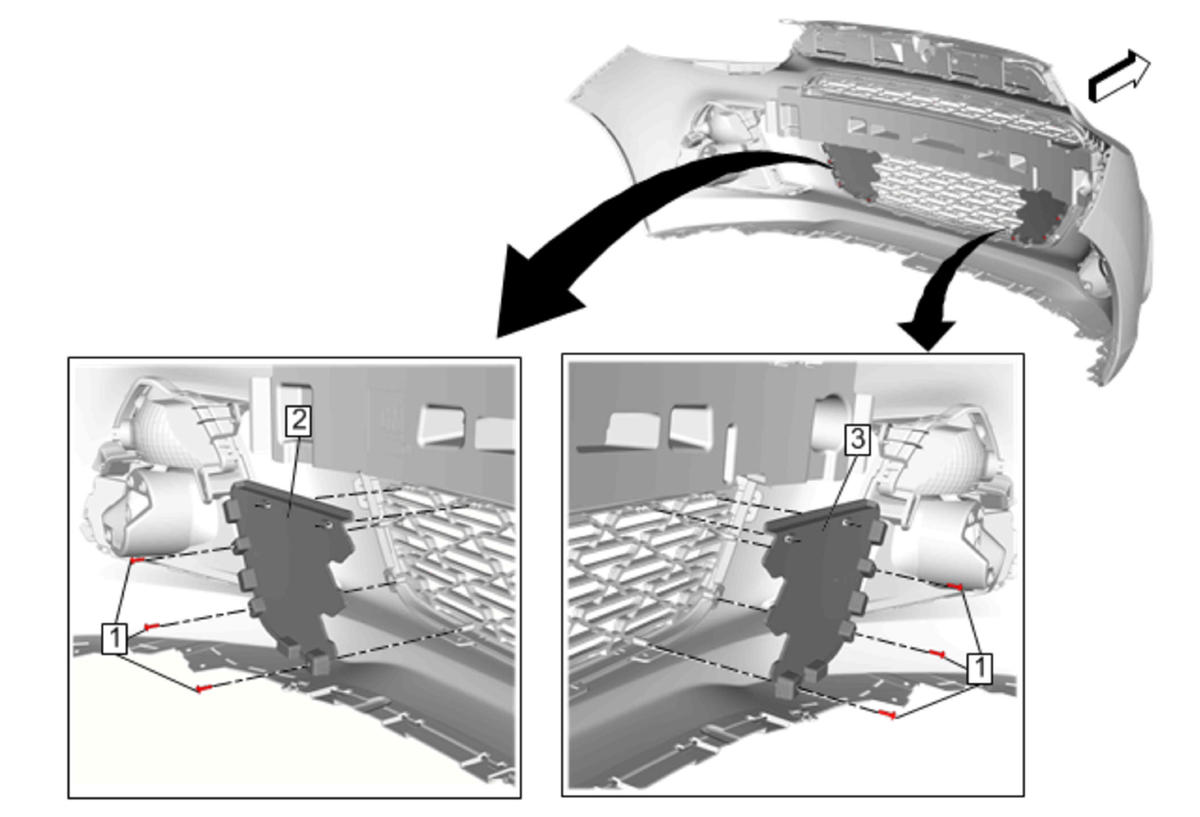

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement |
|
| 1 | Front Grille Opening Cover Screw [6x]
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Front Grille Opening Cover-Left Side Procedure Use a flat bladed plastic trim tool to release the tabs from the front bumper fascia. |
| 3 | Front Grille Opening Cover-Right Side Procedure Use a flat bladed plastic trim tool to release the tabs from the front bumper fascia. |
