Front Fog Lamp Bezel Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

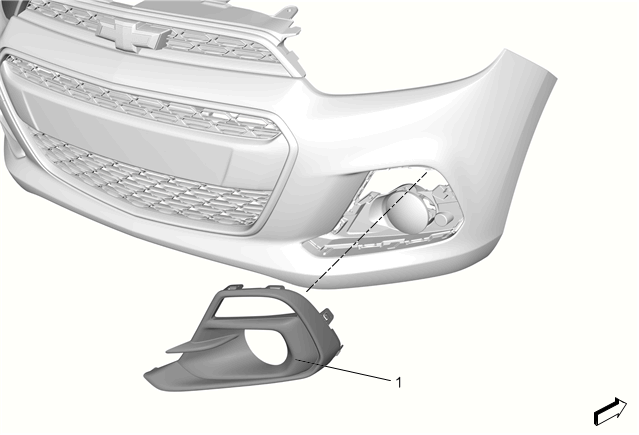

Fig 1: Front Fog Lamp Bezel
GM4115612Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Lift the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  4. Remove the daytime running lamp. Refer to Daytime Running Lamp Replacement .
1 Front Fog Lamp Bezel

Procedure

  1. Release the bezel assembly taps.
  2. Remove the front fog lamp bezel.
