Daytime Running Lamp Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

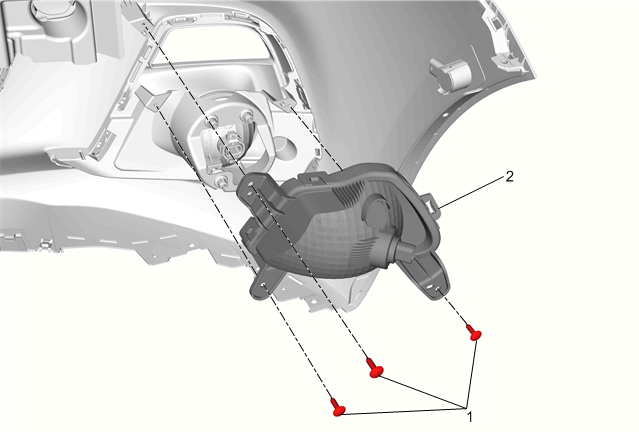

Fig 1: Daytime Running Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect daytime running lamp bulb electrical connector.
1	Daytime Running Lamp Screw (Qty: 3)
2	Daytime Running Lamp

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect daytime running lamp bulb electrical connector.

Daytime Running Lamp Screw (Qty: 3)

Daytime Running Lamp
