Front Fog Lamp Bezel Replacement (Activ)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

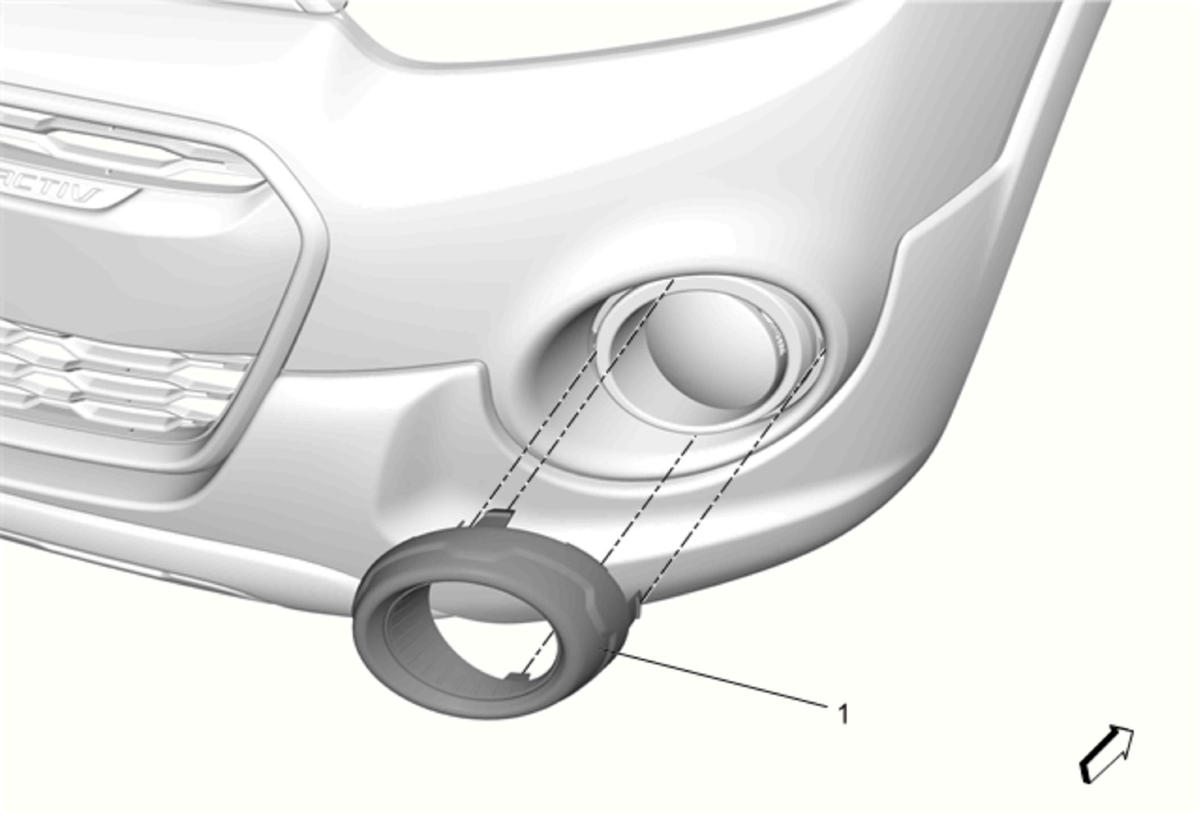

Fig 1: Front Fog Lamp Bezel (Activ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lift the vehicle. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove the daytime running lamp. Refer to Daytime Running Lamp Replacement .
1	Front Fog Lamp Bezel Procedure Release the bezel assembly taps. Remove the front fog lamp bezel.

Callout

Component Name

Preliminary Procedures

Lift the vehicle.
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Remove the daytime running lamp. Refer to Daytime Running Lamp Replacement .

Front Fog Lamp Bezel

Procedure

Release the bezel assembly taps.
Remove the front fog lamp bezel.
