Windshield Washer Nozzle Hose Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

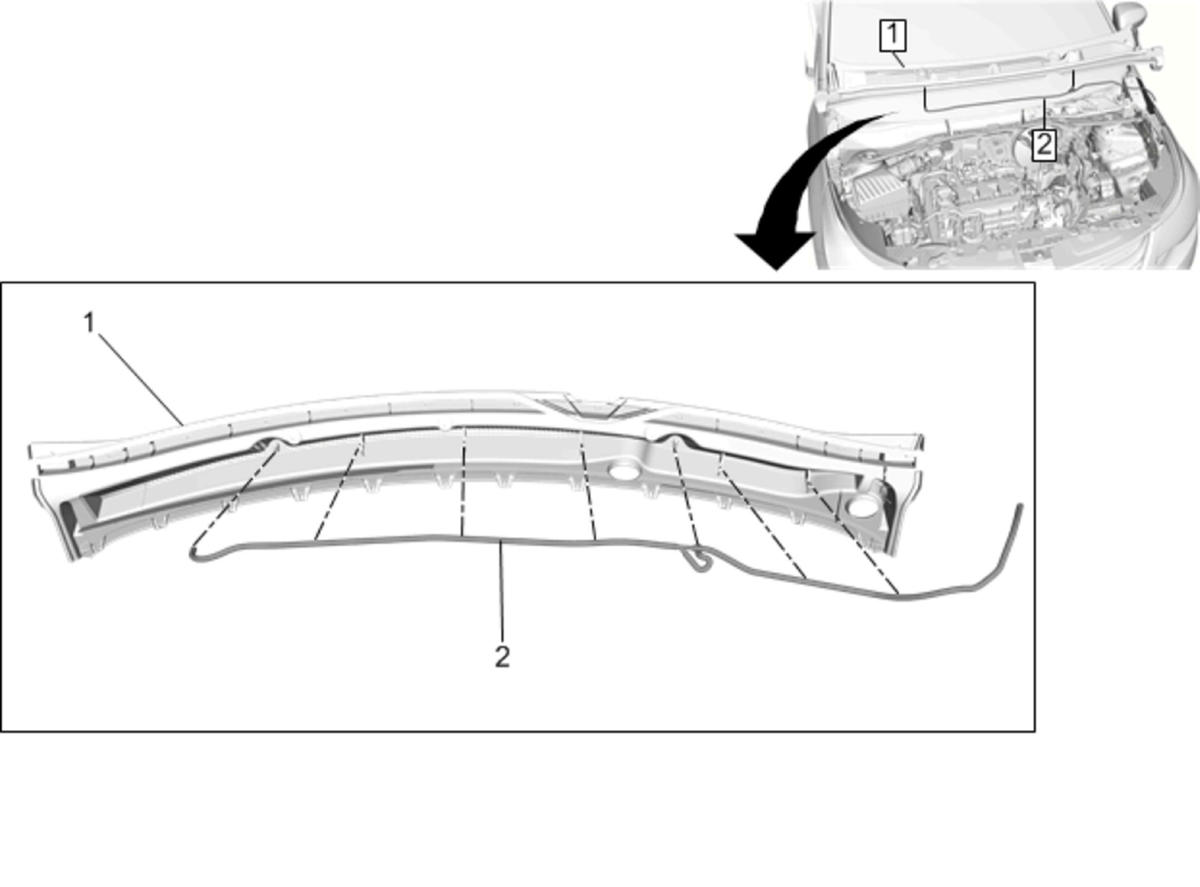

Fig 1: Windshield Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lift up the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Air Inlet Grille Panel
2	Windshield Washer Nozzle Hose Procedure Disconnect the windshield washer nozzle hose from the windshield washer pump hose. Disconnect the windshield washer hose from the underside of air inlet grille panel. Disconnect the windshield washer hose at both windshield washer nozzle. Remove the windshield washer hose from the vehicle.

Callout

Component Name

Preliminary Procedure
Lift up the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

Air Inlet Grille Panel

Windshield Washer Nozzle Hose

Procedure

Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
Disconnect the windshield washer hose from the underside of air inlet grille panel.
Disconnect the windshield washer hose at both windshield washer nozzle.
Remove the windshield washer hose from the vehicle.
