Air Inlet Grille Panel Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

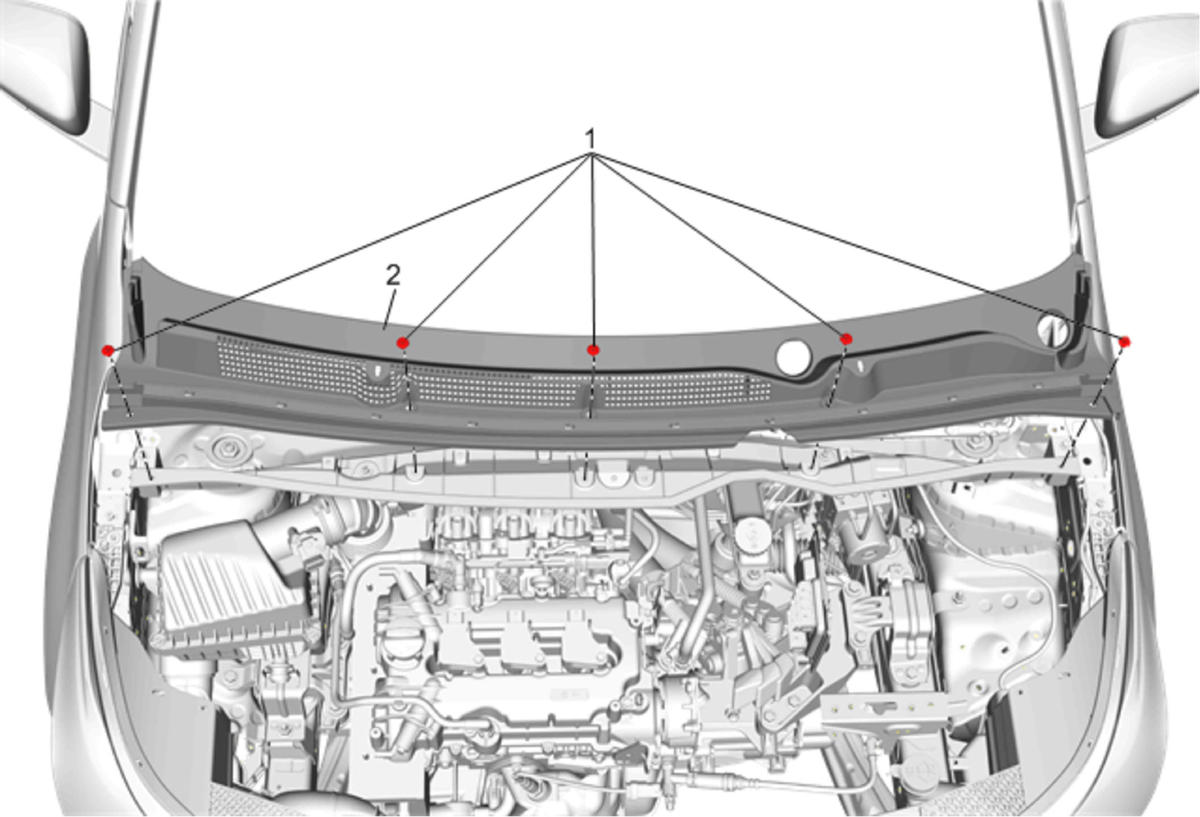

Fig 1: Air Inlet Grille Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove both wiper arm assemblies. Refer to Windshield Wiper Arm Replacement . Remove the hood rear weatherstrip. Refer to Hood Rear Weatherstrip Replacement . Remove both air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .
1	Air Inlet Grille Panel Retainer (Qty: 5) Procedure Release and remove the retainers from the air inlet grille panel.
2	Air Inlet Grille Panel Procedure Lift up the air inlet grille panel and remove the windshield washer nozzle from the air inlet grille panel. Refer to Windshield Washer Nozzle Replacement . Remove the grille panel from the vehicle.

Callout

Component Name

Preliminary Procedures

Remove both wiper arm assemblies. Refer to Windshield Wiper Arm Replacement .
Remove the hood rear weatherstrip. Refer to Hood Rear Weatherstrip Replacement .
Remove both air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .

Air Inlet Grille Panel Retainer (Qty: 5)
Procedure
Release and remove the retainers from the air inlet grille panel.

Air Inlet Grille Panel

Procedure

Lift up the air inlet grille panel and remove the windshield washer nozzle from the air inlet grille panel. Refer to Windshield Washer Nozzle Replacement .
Remove the grille panel from the vehicle.
