Rear Window Wiper Motor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

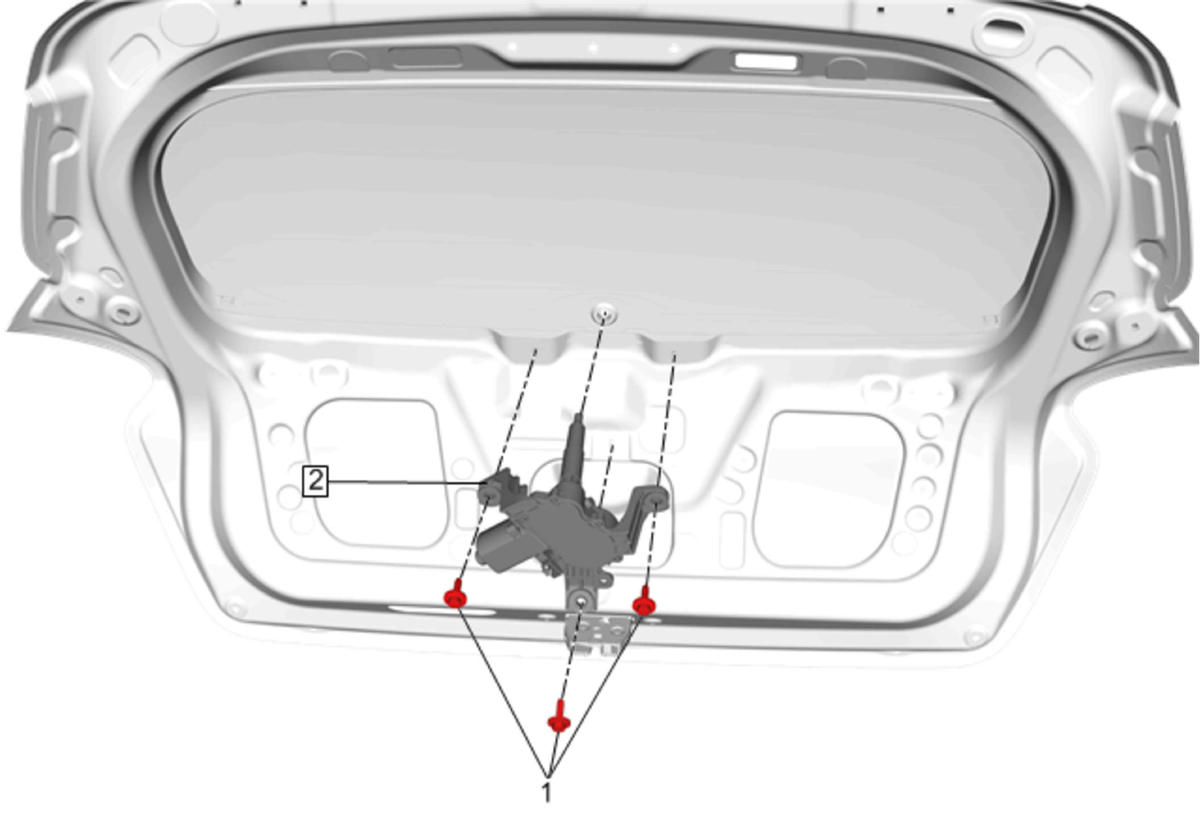

Fig 1: Rear Window Wiper Motor
GM4025754Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Open and support the liftgate assembly.
  2. Remove the rear window wiper arms. Refer to Rear Window Wiper Arm Replacement .
  3. Remove the liftgate trim panel.
  4. Disconnect the rear window wiper motor electrical connector.
1 Rear Window Wiper Motor Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Rear Window Wiper Motor Assembly

Procedure

  1. Pull the rear window wiper motor inward from the rear liftgate.
  2. Inspect the rear window wiper motor grommet for damage. Replace if needed.
