Rear Window Wiper Arm Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

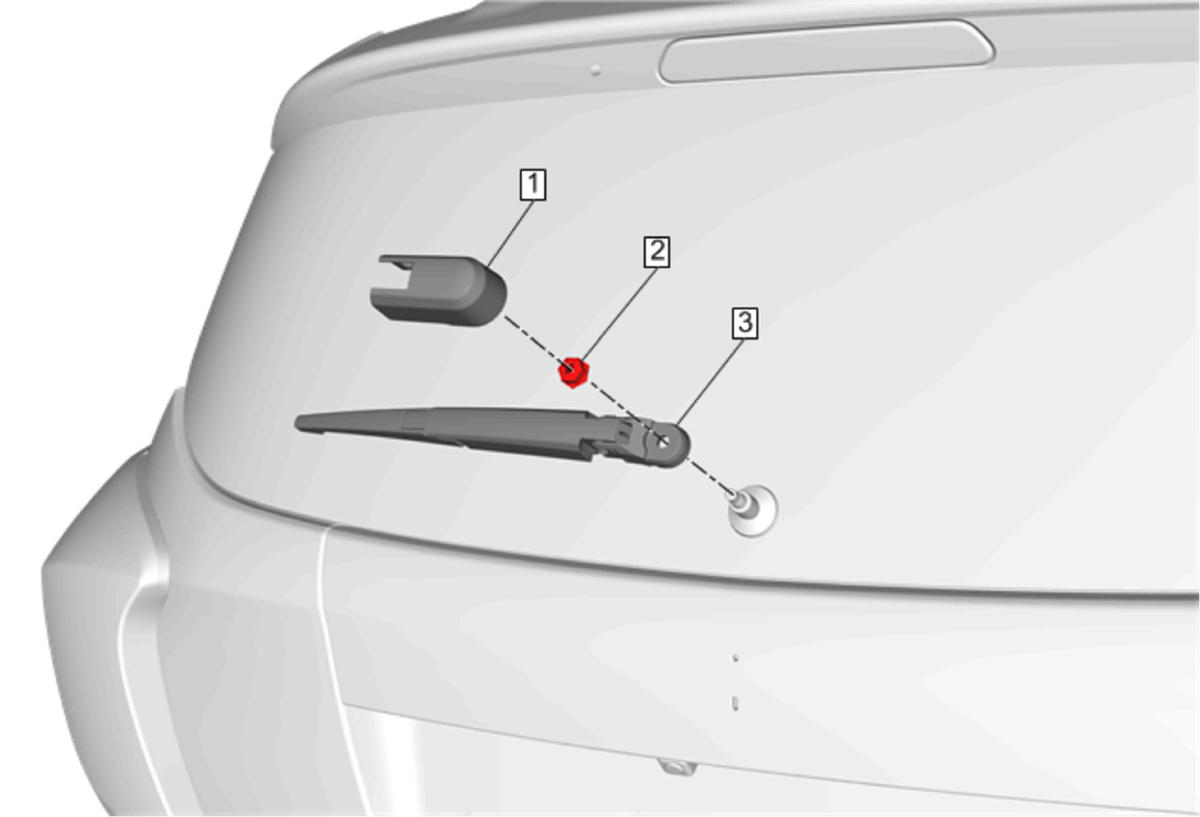

| Callout | Component Name |
|---|---|
| 1 | Rear Window Wiper Arm Finish Cap Procedure Use a small flat-bladed tool to remove finish cap. |
| 2 | Rear Window Wiper Arm Nut
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Rear Window Wiper Arm Assembly Procedure Use the wiper arm puller if the arm fails to release from the wiper motor pivot shaft. |
