Rear Side Door Window Regulator Handle Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

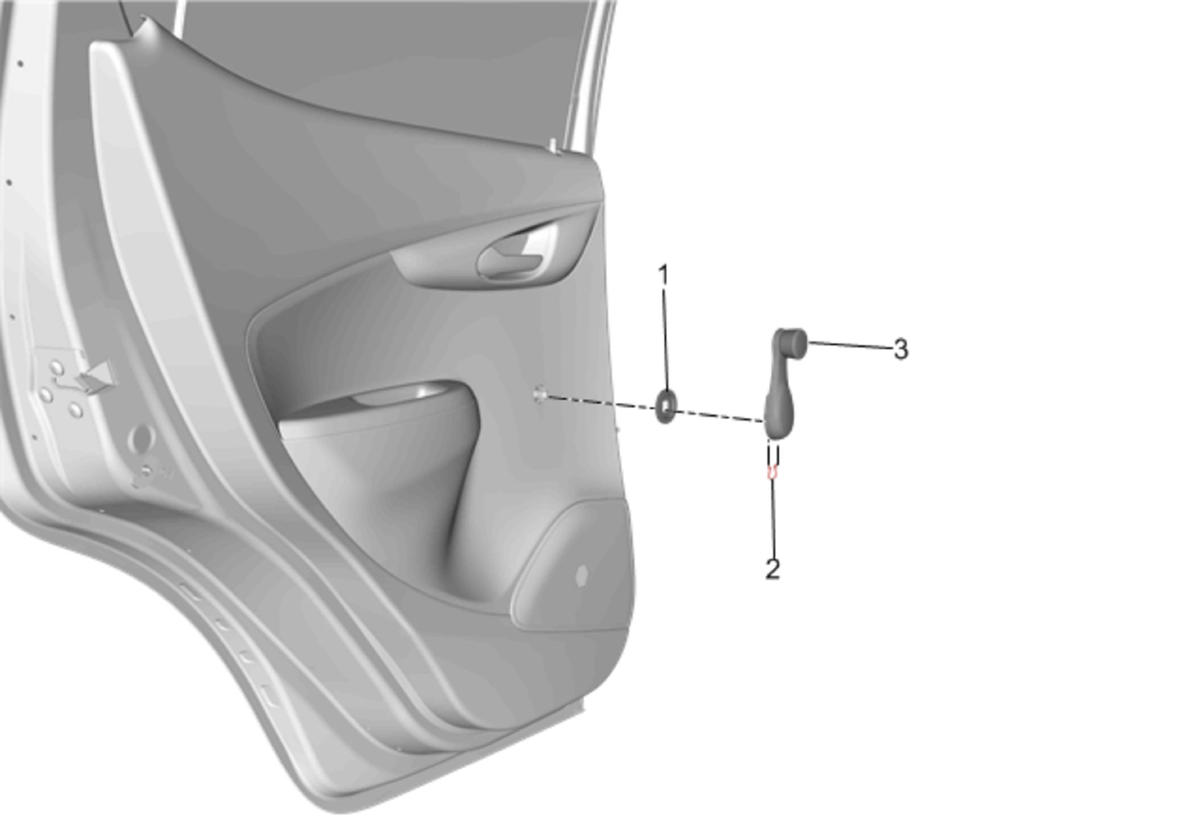

| Callout |
Component Name |
| 1 |
Rear Side Door Window Regulator Handle Spacer |
| 2 |
Rear Side Door Window Regulator Handle Clip
Procedure
Use the appropriate tool, remove the clip from handle. |
| 3 |
Rear Side Door Window Regulator Handle |
