Front Side Door Water Deflector Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

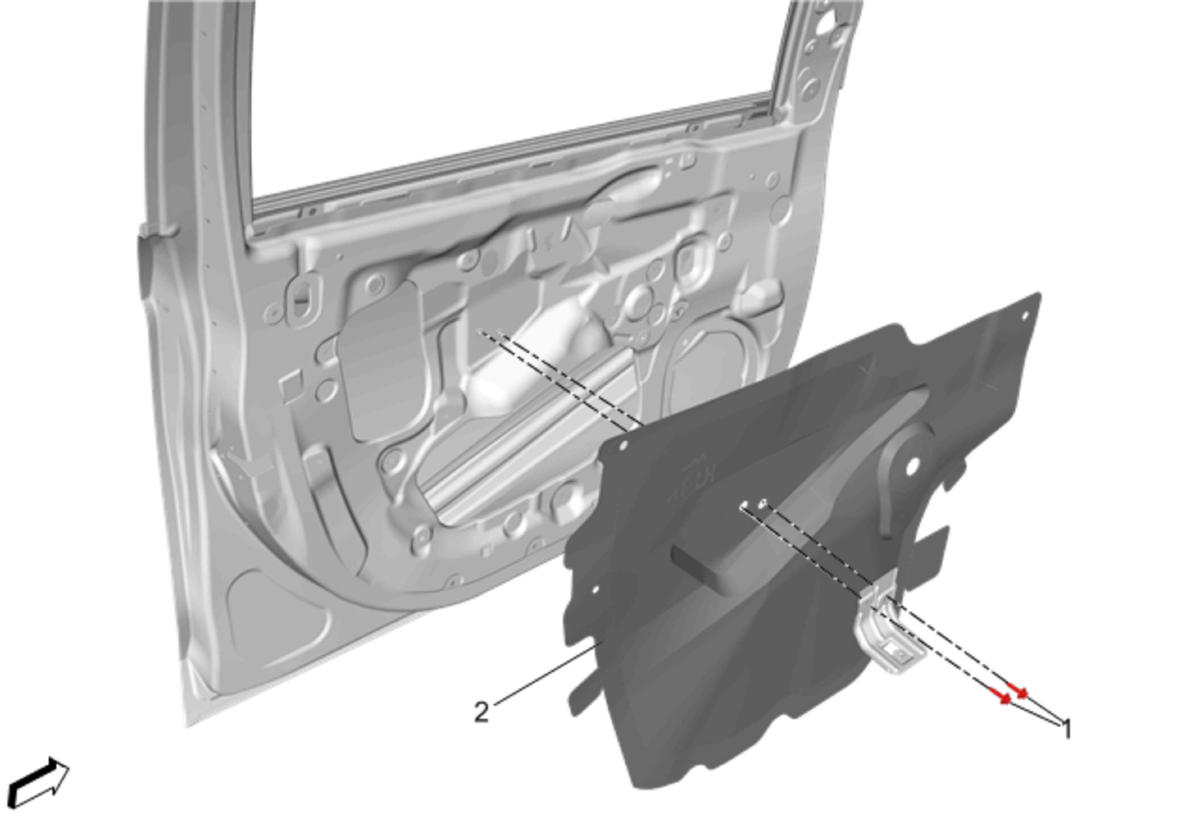

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement |
|
| 1 | Front Side Door Armrest Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Front Side Door Water Deflector Procedure Guide the electrical connectors and door lock cable through the water deflector while removing it from the door.
NOTE:
Make sure that the front side door water deflector is leakproof.
|
