Front Side Door Upper Trim Panel Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

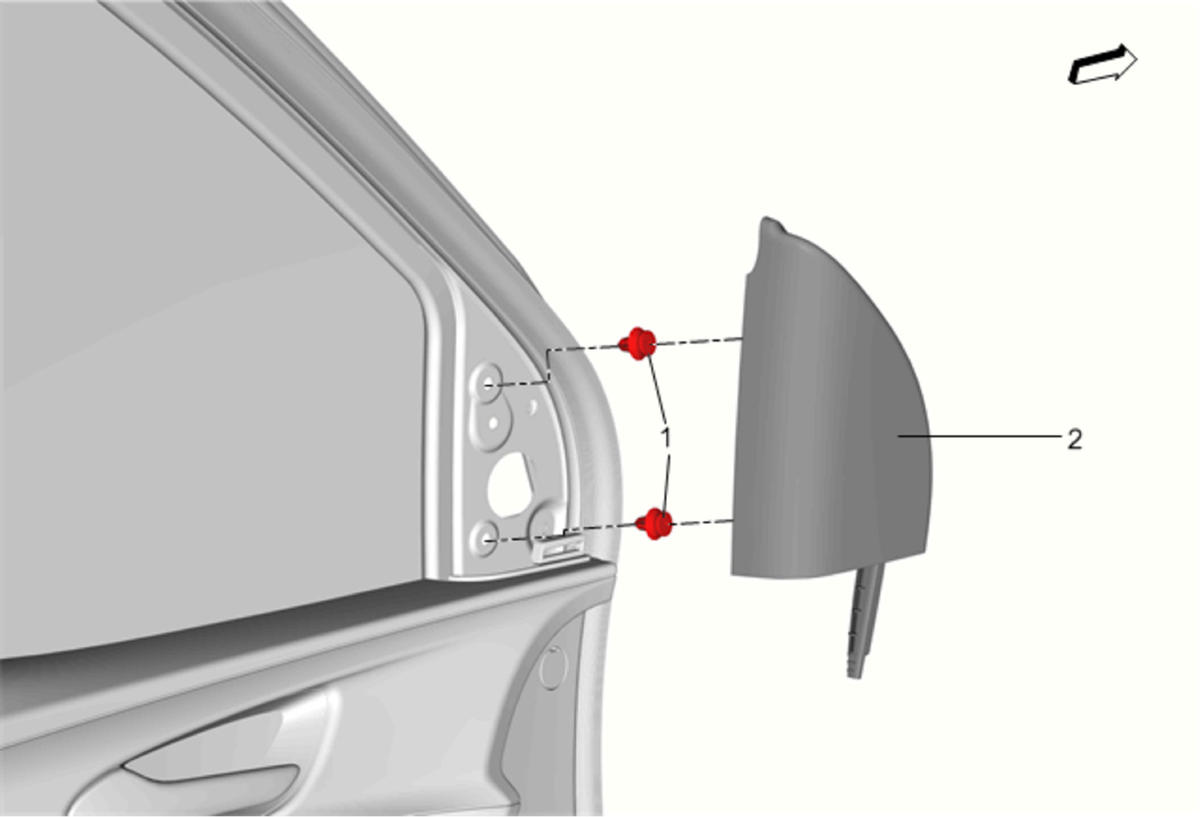

| Callout |
Component Name |
| 1 |
Front Side Door Upper Trim Panel Assembly Clip (Qty: 2) |
| 2 |
Front Side Door Upper Trim Panel Assembly
Procedure
Begin at the upper of the door upper trim panel and pull the door upper trim panel away from the front side door. |
