Front Side Door Armrest Pull Cup Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

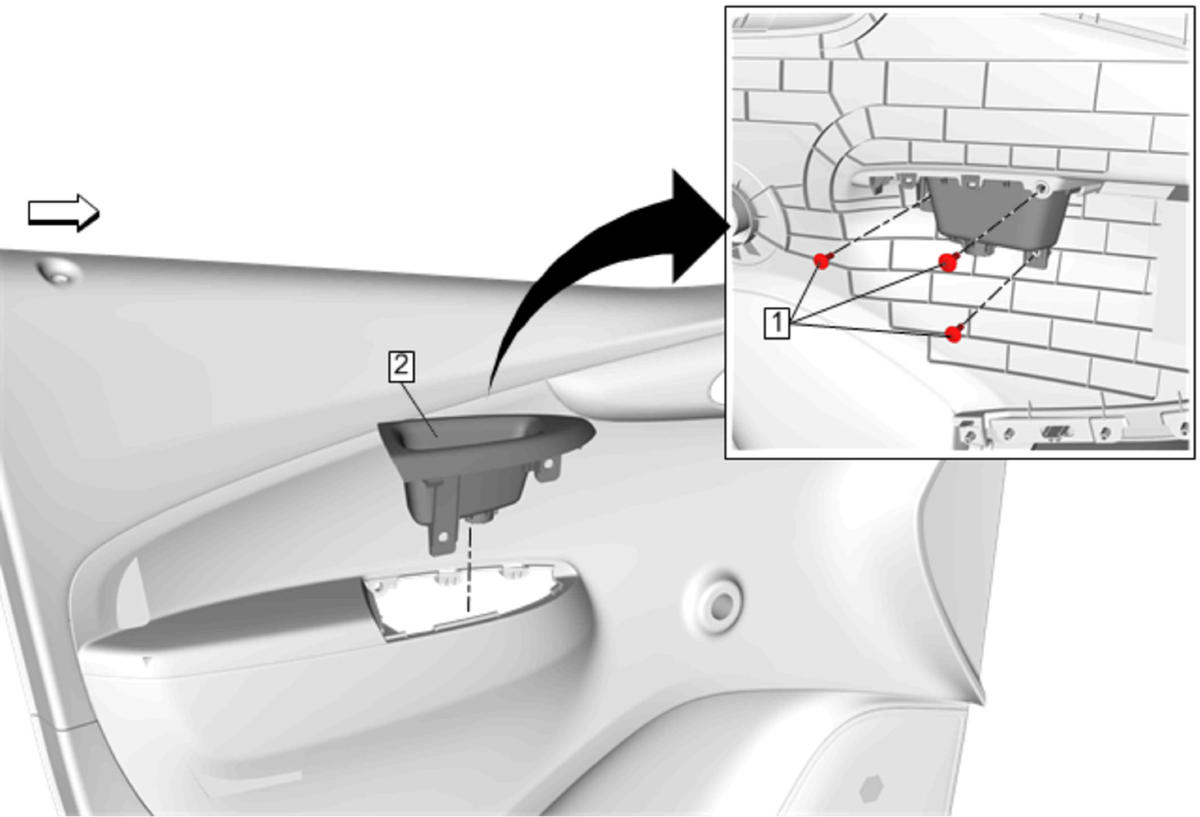

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Trim Replacement |
|
| 1 | Front Side Door Armrest Pull Cup Fastener [3x]
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 2 | Front Side Door Armrest Pull Cup Procedure At the back of the door trim, release the locking tabs to door trim to remove the front side door armrest pull cup. |
