Instrument Panel Tie Bar Replacement: Notes

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel lower trim panel (1). Refer to Instrument Panel Lower Trim Panel Replacement .
    Fig 1: Instrument Panel Lower Trim Panel
    GM4052340Courtesy of GENERAL MOTORS COMPANY
  2. Remove the instrument panel tie bar braces (2), (4). Refer to Instrument Panel Tie Bar Brace Replacement
    Fig 2: Instrument Panel Tie Bar Braces
    GM4052366Courtesy of GENERAL MOTORS COMPANY
  3. Remove the air inlet grille panel (2). Refer to Air Inlet Grille Panel Replacement .
    Fig 3: Air Inlet Grille Panel
    GM4025510Courtesy of GENERAL MOTORS COMPANY

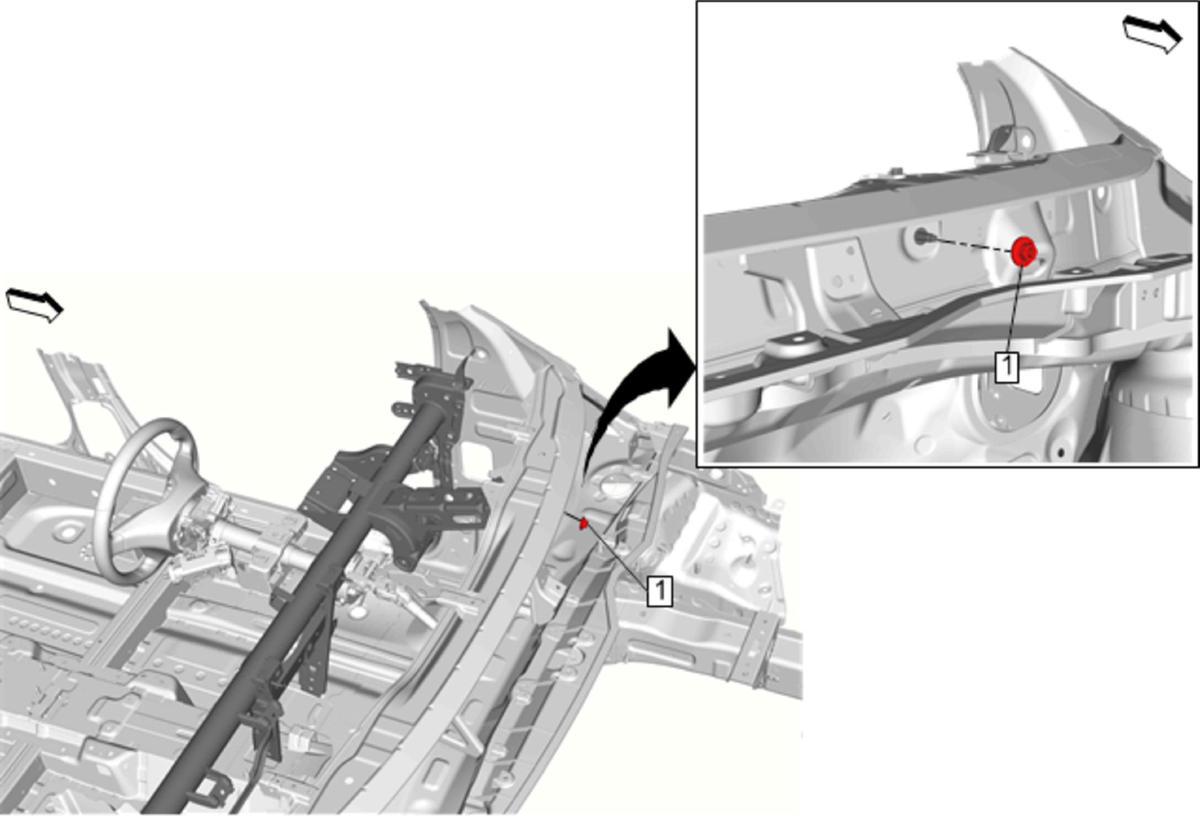

  4. Remove the instrument panel tie bar nut (1) on the plenum lower panel.
    Fig 4: Instrument Panel Tie Bar Nut On Plenum Lower Panel
    GM4053488Courtesy of GENERAL MOTORS COMPANY

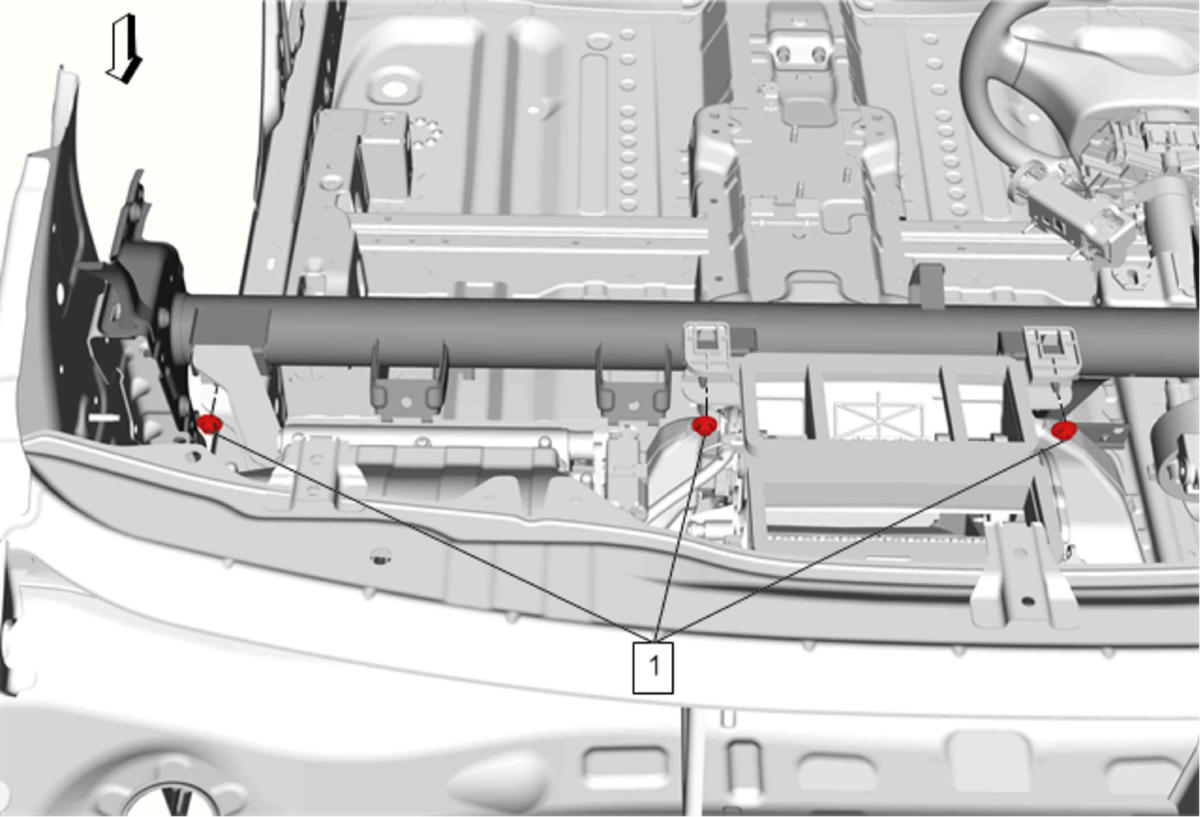

  5. Remove the A/C evaporator and blower module to I/P tie bar securing nuts (1).
    Fig 5: A/C Evaporator And Blower Module To I/P Tie Bar Securing Nuts
    GM4094008Courtesy of GENERAL MOTORS COMPANY

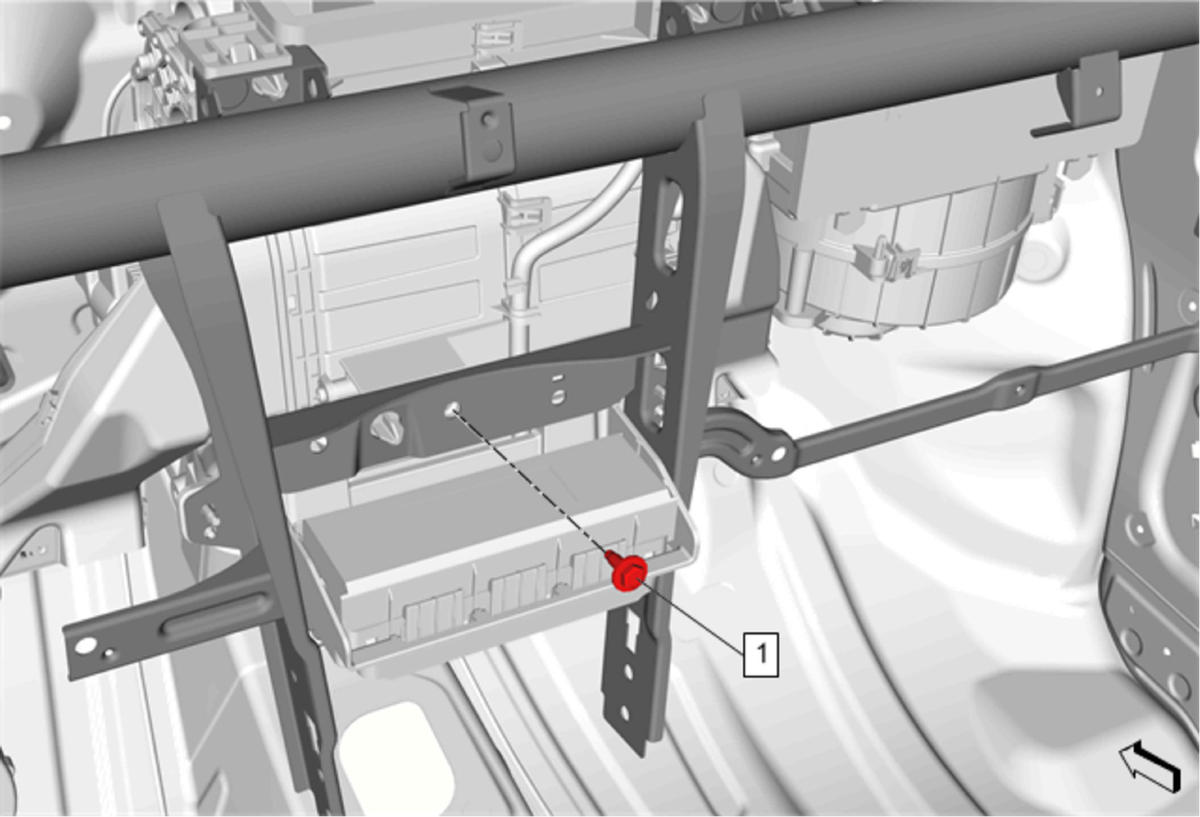

  6. Remove the A/C evaporator and blower module to I/P tie bar securing bolts (1).
    Fig 6: A/C Evaporator And Blower Module To I/P Tie Bar Securing Bolts
    GM4094009Courtesy of GENERAL MOTORS COMPANY

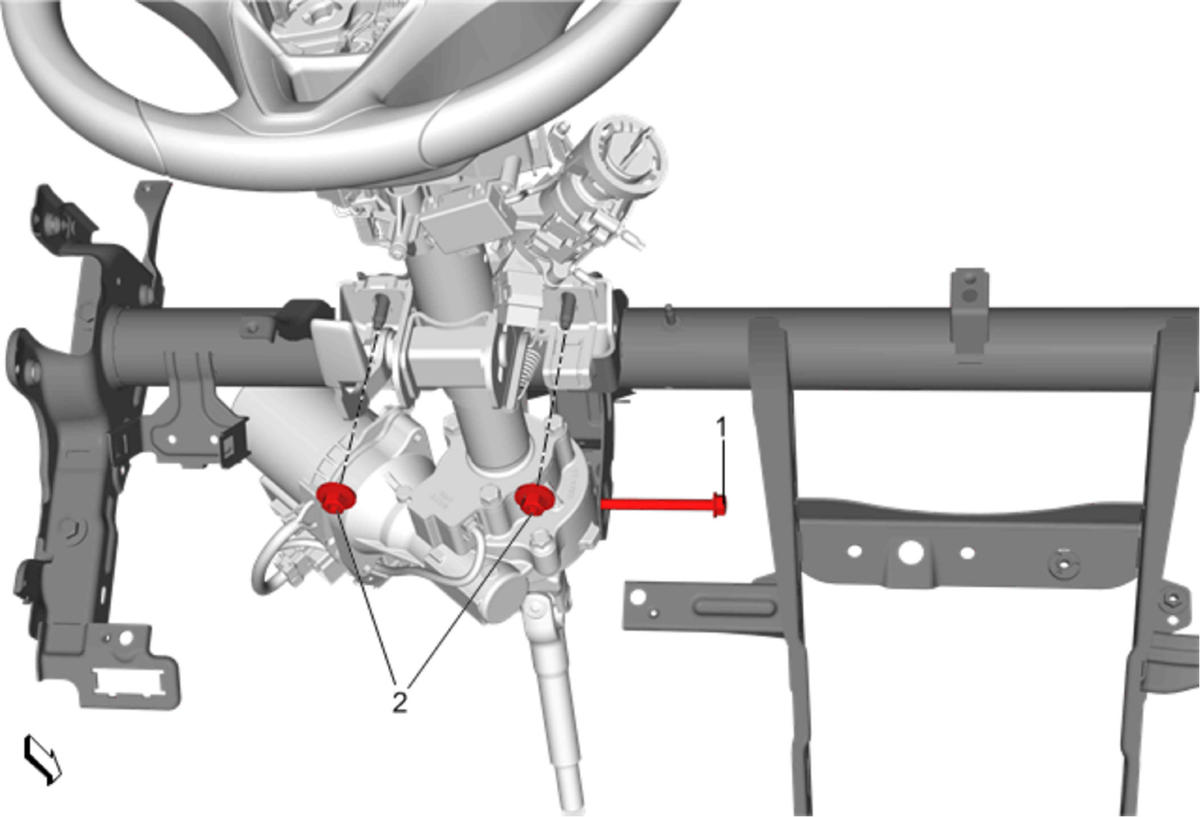

  7. Remove the steering column to I/P tie bar securing bolt (1).
    Fig 7: I/P Tie Bar Securing Bolt
    GM4053489Courtesy of GENERAL MOTORS COMPANY
  8. Remove the steering column to I/P tie bar securing nuts (2).
  9. Disconnect the electrical connectors and detach the connector clips from the column.
  10. Lower the steering column carefully.

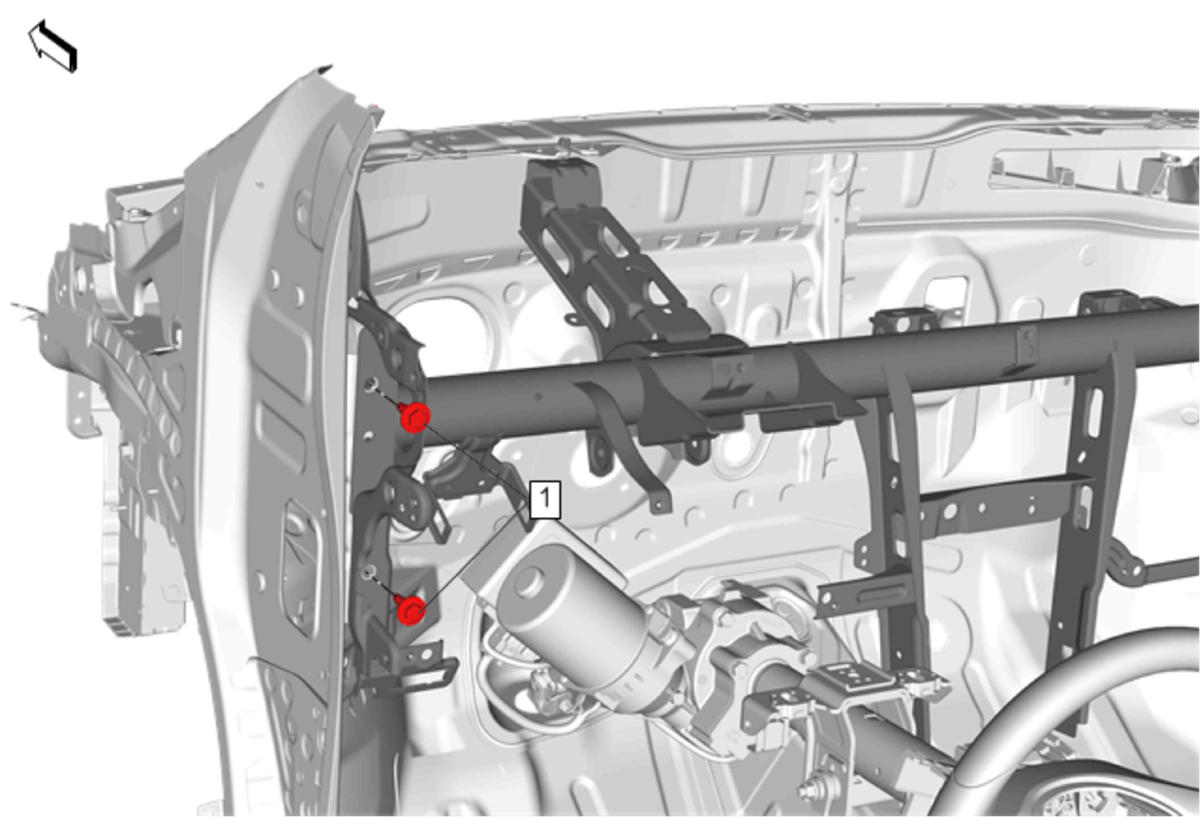

  11. Remove the I/P tie bar bolts (1) on the left side of I/P.
    Fig 8: I/P Tie Bar Bolts On Left Side Of I/P
    GM4053490Courtesy of GENERAL MOTORS COMPANY

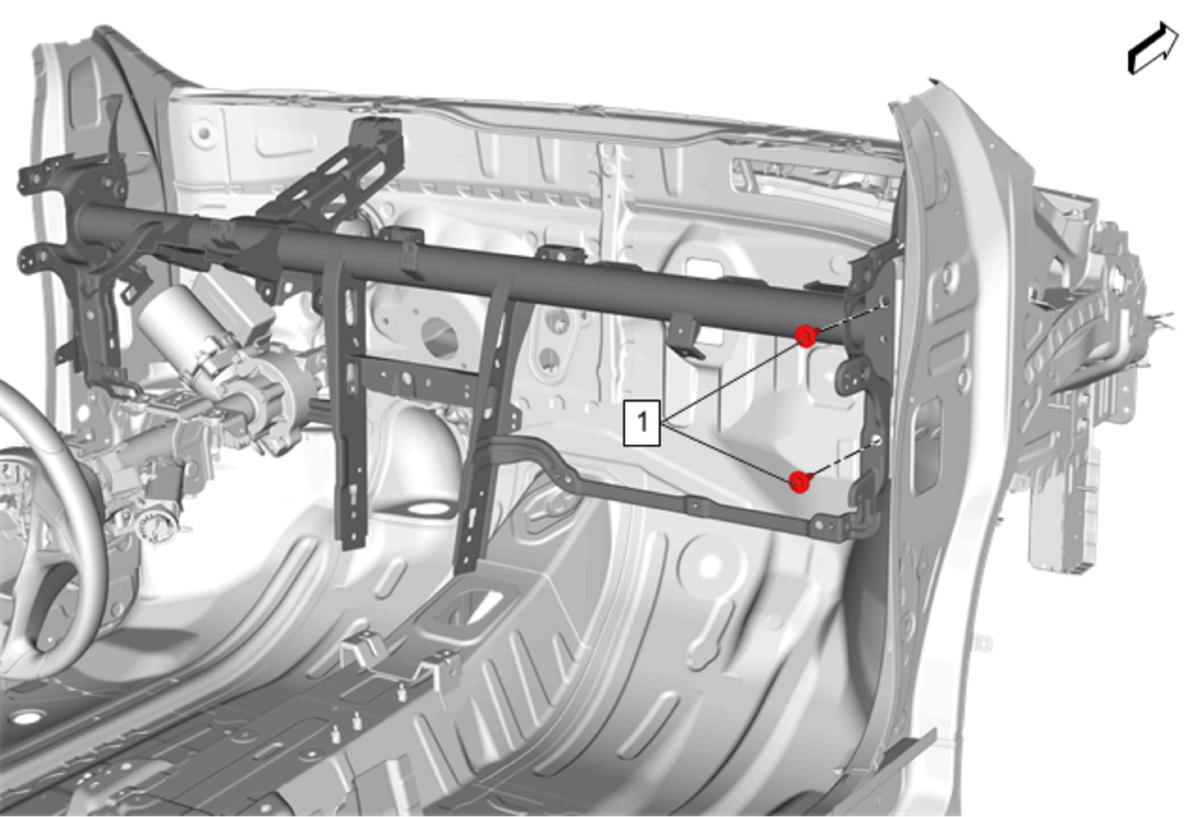

  12. Remove the I/P tie bar bolts (1) on the right side of I/P.
    Fig 9: I/P Tie Bar Bolts On Right Side Of I/P
    GM4053491Courtesy of GENERAL MOTORS COMPANY
  13. Note location and routing of the I/P wiring harness prior to removal of the I/P tie bar assembly to ensure proper reinstallation.

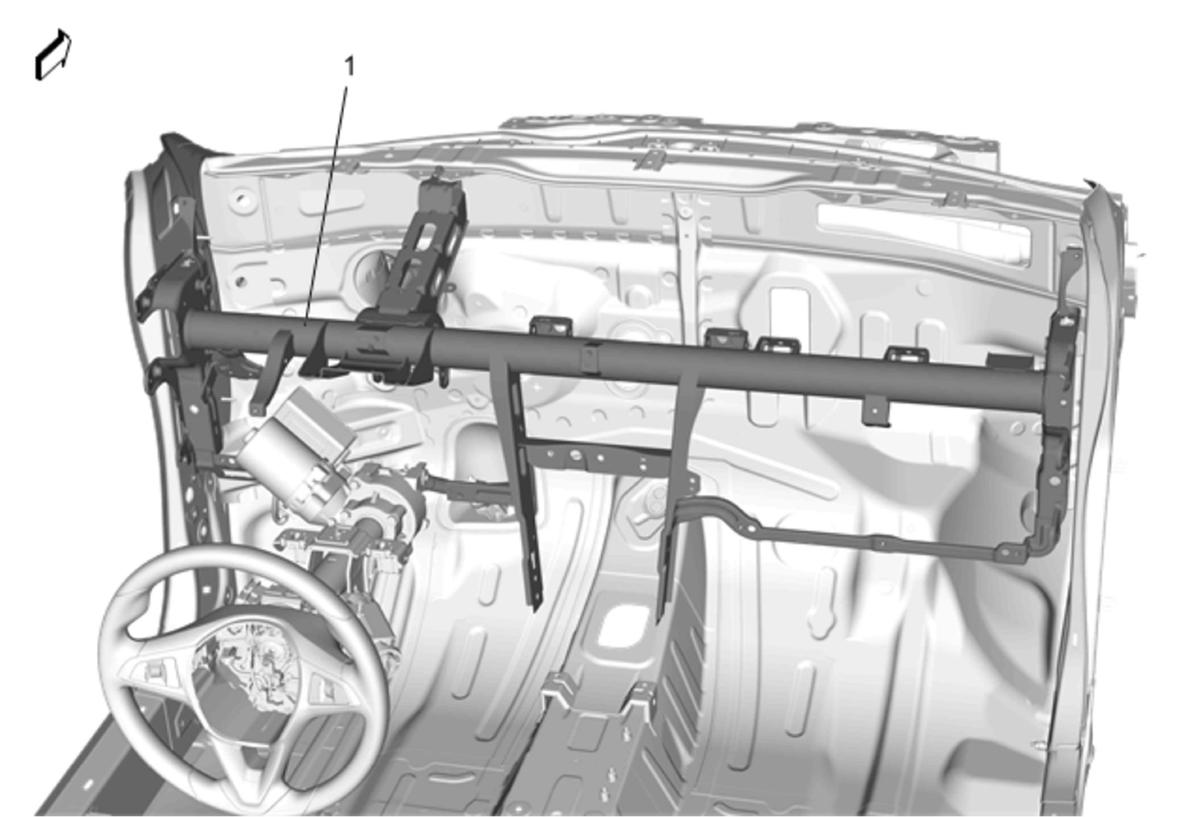

    Fig 10: I/P Tie Bar Assembly
    GM4053492Courtesy of GENERAL MOTORS COMPANY
  14. Disconnect the wiring harness from the I/P tie bar assembly.
  15. With the aid of an assistant, remove the I/P tie bar assembly (1) from the vehicle.
  16. If replacing the I/P tie bar assembly, transfer all necessary components.
