Instrument Panel Switch Trim Plate Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

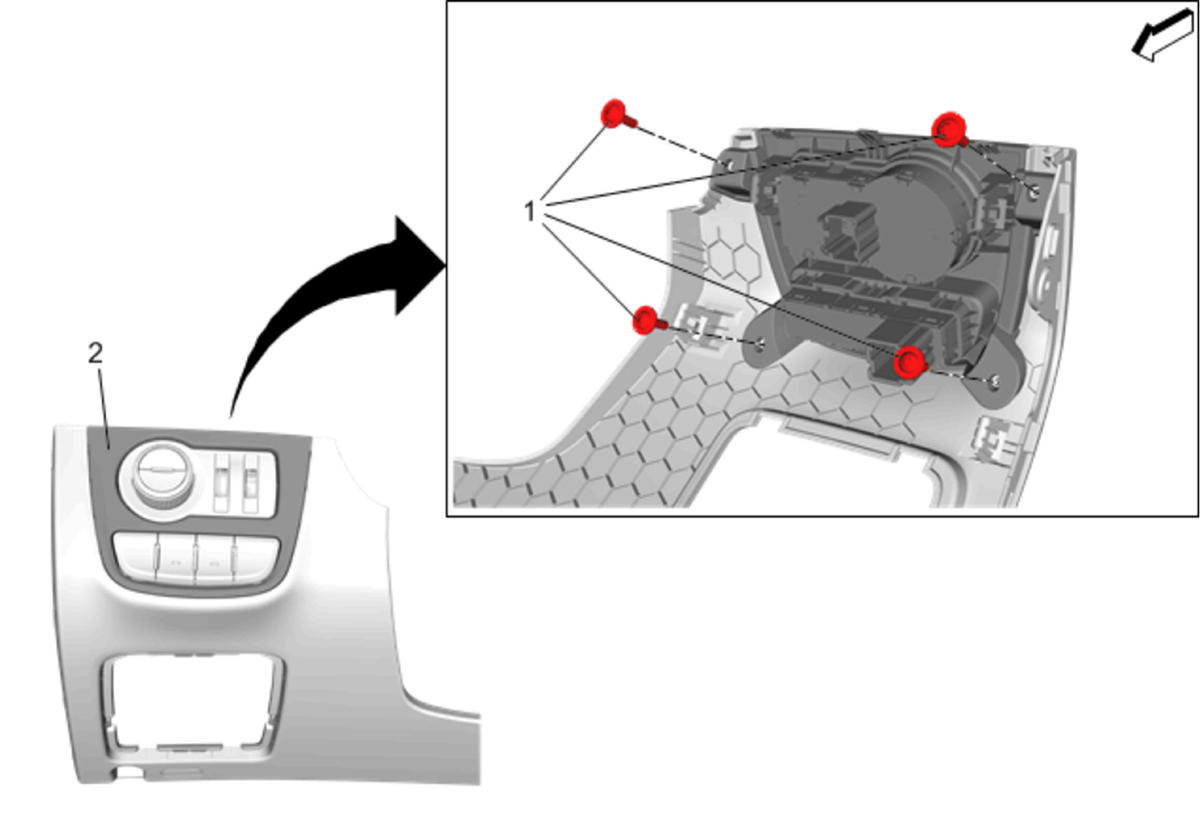

Fig 1: Instrument Panel Switch Trim Plate
GM4052362Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1 Instrument Panel Switch Trim Plate Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .
2 Instrument Panel Switch Trim Plate
Procedure
Transfer all necessary components.
