Front Floor Console Trim Plate Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

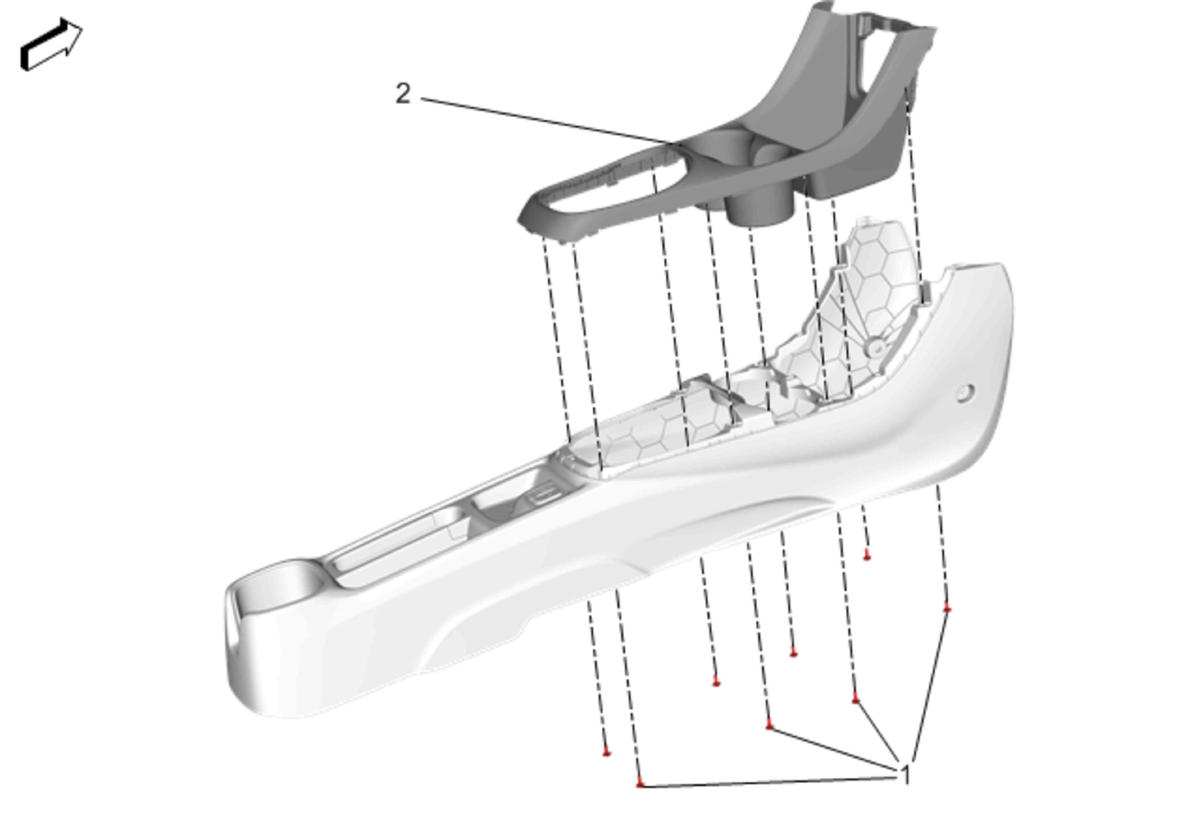

Fig 1: Front Floor Console Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement .
1	Front Floor Console Trim Plate Screw (Qty: 8) CAUTION: Refer to Fastener Caution .
2	Front Floor Console Trim Plate Procedure At the back of trim plate, push it out.

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement .

Front Floor Console Trim Plate Screw (Qty: 8)

CAUTION: Refer to Fastener Caution .

Front Floor Console Trim Plate
Procedure
At the back of trim plate, push it out.
