Front Floor Console Accessory Trim Plate Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

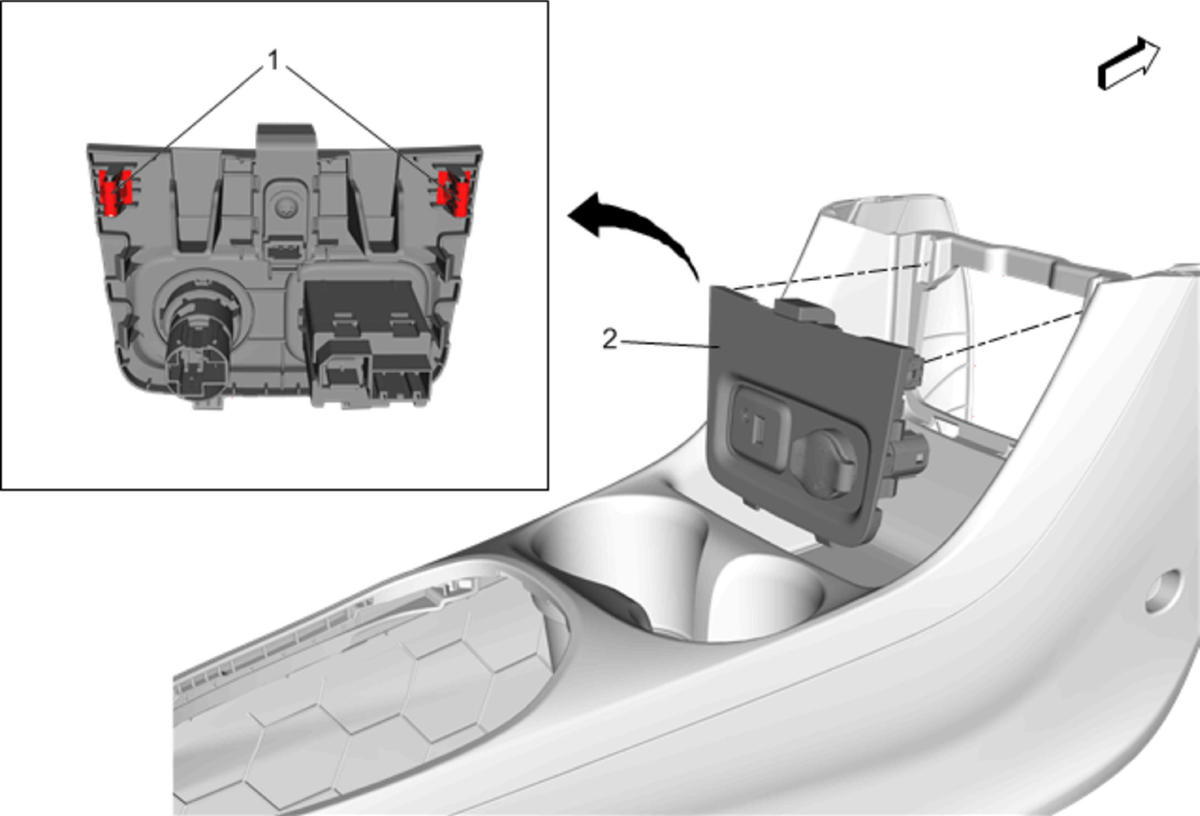

Fig 1: Front Floor Console Accessory Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedure Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Front Floor Console Accessory Trim Plate Clip (Qty: 2)
2	Front Floor Console Accessory Trim Plate Procedure At the back of trim plate, push it out. Disconnect electrical connections. If needed, replace appropriate part.

Callout

Component Name

WARNING: Refer to Battery Disconnect Warning .

Preliminary Procedure Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Front Floor Console Accessory Trim Plate Clip (Qty: 2)

Front Floor Console Accessory Trim Plate

Procedure

At the back of trim plate, push it out.
Disconnect electrical connections.
If needed, replace appropriate part.
