Assembly Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel tank fuel pump module to the tank. Refer to Fuel Tank Fuel Pump Module Replacement (35L (9 US Gallon) Tank) .
  2. Install the fuel tank wiring harness (2) to the fuel tank.

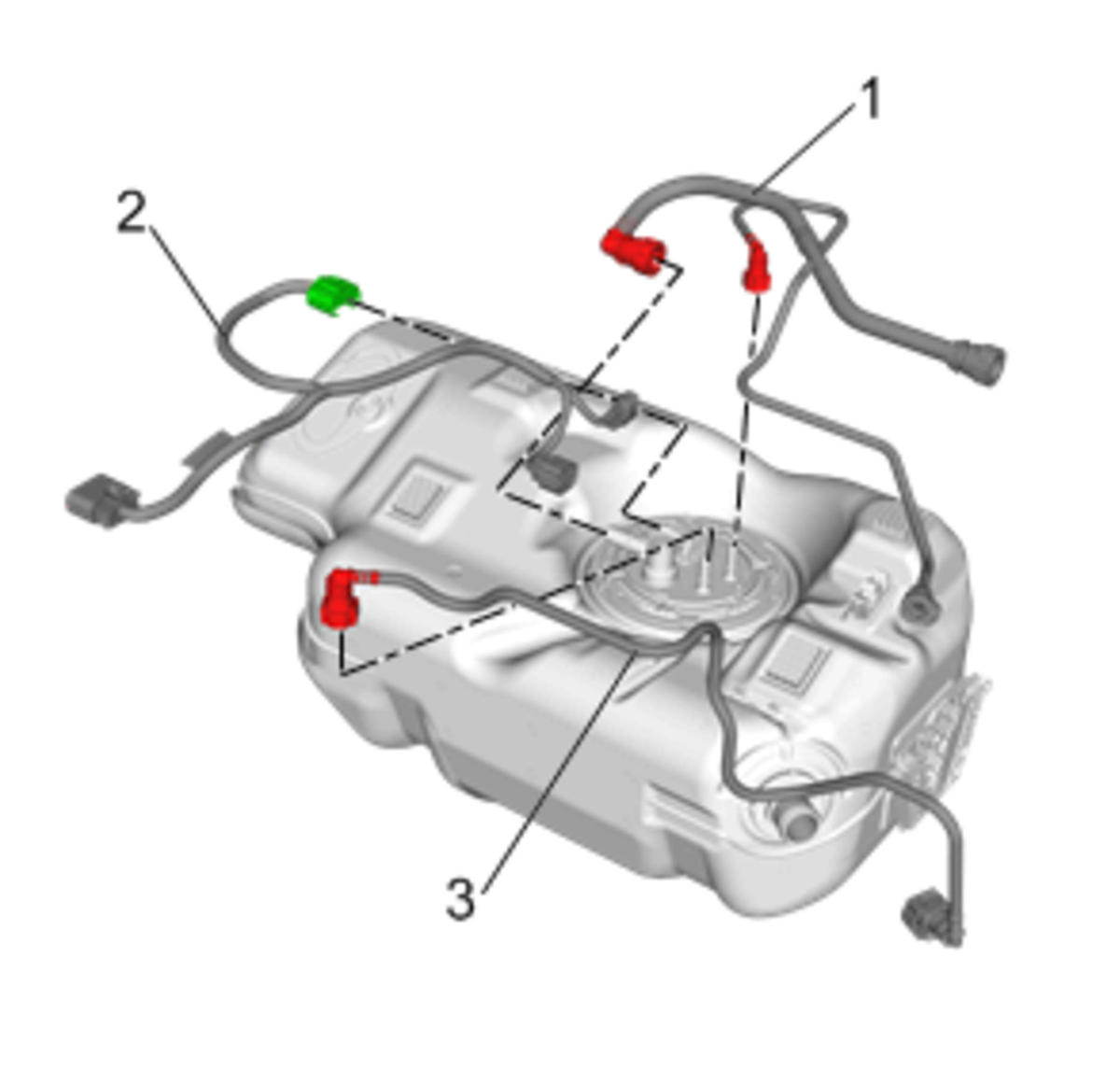

    Fig 1: Fuel Feed/Evaporative Emission Separator Assembly
    GM4174674Courtesy of GENERAL MOTORS COMPANY
  3. Install the fuel feed/evaporative emission separator hose (3) to the fuel tank. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Install the fuel feed/evaporative emission separator assembly (1) to the fuel tank. Refer to Plastic Collar Quick Connect Fitting Service .
  5. Install the evaporative emission canister. Refer to Evaporative Emission Canister Replacement (35L (9 US Gallon) Tank) .
