Fuel Level Sensor Replacement (35L (9 US Gallon) Tank)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

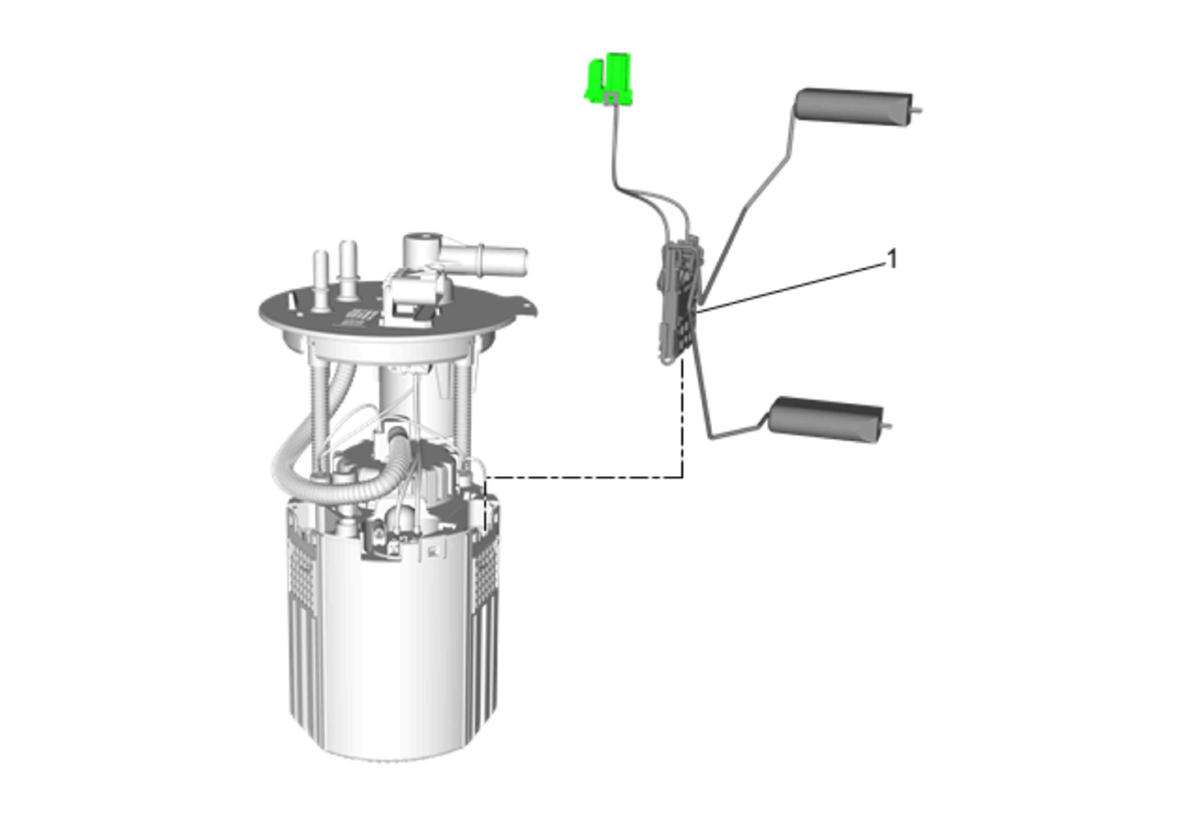

Fig 1: Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel pump. Refer to Fuel Tank Fuel Pump Module Replacement (35L (9 US Gallon) Tank) .
1	Fuel Level Sensor Procedure Disconnect the fuel level sensor electrical connector. Remove the fuel level sensor.

Callout

Component Name

Preliminary Procedures
Remove the fuel pump. Refer to Fuel Tank Fuel Pump Module Replacement (35L (9 US Gallon) Tank) .

Fuel Level Sensor

Procedure

Disconnect the fuel level sensor electrical connector.
Remove the fuel level sensor.
