Evaporative Emission Canister Purge Solenoid Valve Replacement (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

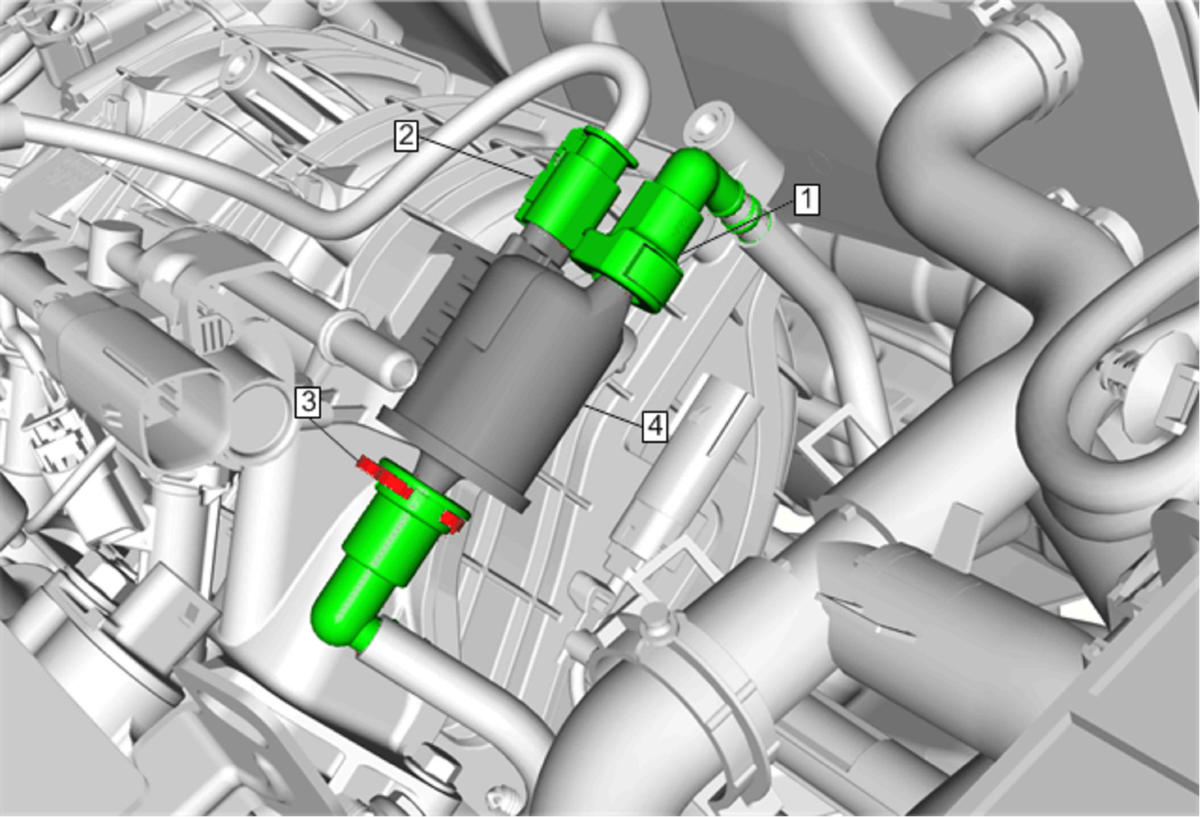

Fig 1: Evaporative Emission Canister Purge Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LV7) . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Evaporative Emission Pipe Connector Procedure Disconnect the evaporative emission pipe connector. Refer to Plastic Collar Quick Connect Fitting Service .
2	Evaporative Emission Canister Purge Solenoid Valve Electrical Connector Procedure Disconnect the evaporative emission canister purge solenoid valve electrical connector. Refer to Plastic Collar Quick Connect Fitting Service .
3	Evaporative Emission Canister Purge Tube Assembly Quick Connector Procedure Remove the evaporative emission canister purge tube assembly quick connector. Refer to Plastic Collar Quick Connect Fitting Service .
4	Evaporative Emission Canister Purge Solenoid Valve
