Camshaft Position Actuator Solenoid Valve Replacement (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

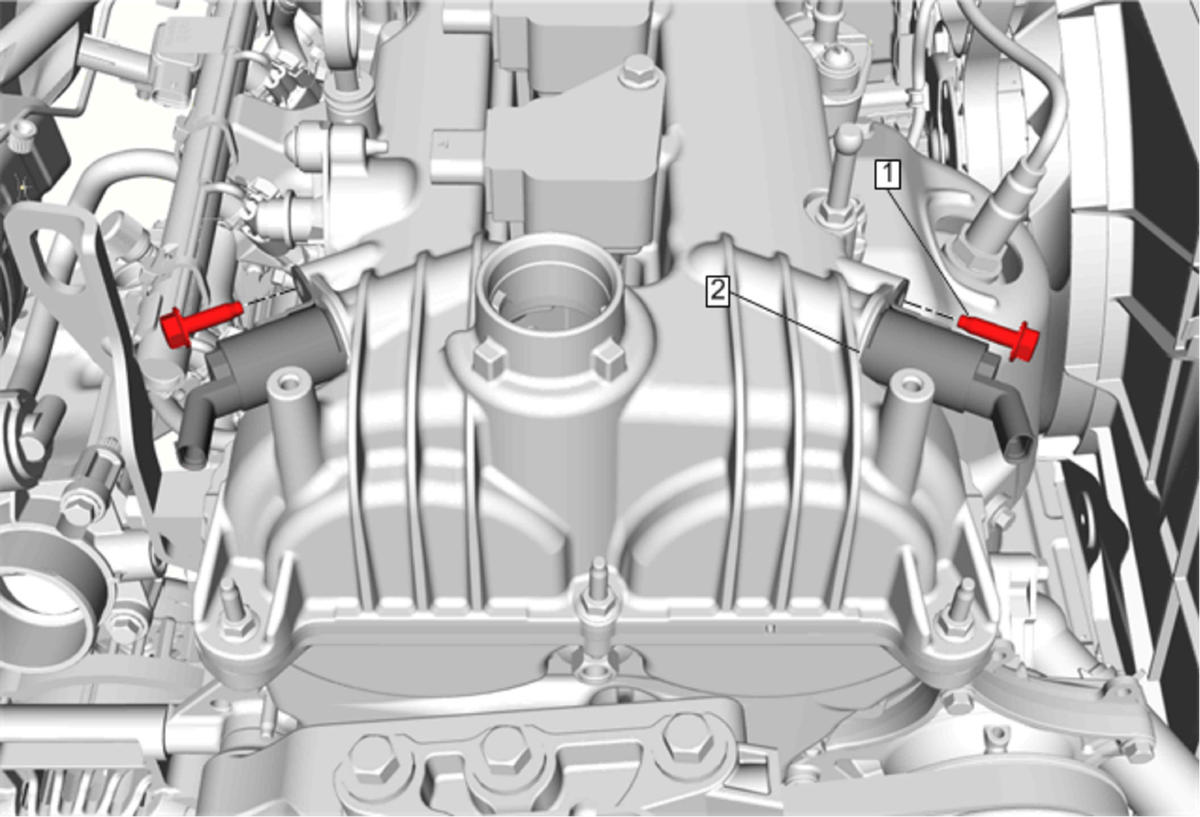

Fig 1: Camshaft Position Actuator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LV7) . Disconnect the camshaft position actuator solenoid valve connectors.
1	Camshaft Position Actuator Solenoid Valve Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the camshaft position actuator solenoid valve bolts. Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Solenoid Valve (Qty: 2)

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LV7) .
Disconnect the camshaft position actuator solenoid valve connectors.

Camshaft Position Actuator Solenoid Valve Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure
Remove the camshaft position actuator solenoid valve bolts.
Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Solenoid Valve (Qty: 2)
