Air Cleaner Housing Cover Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

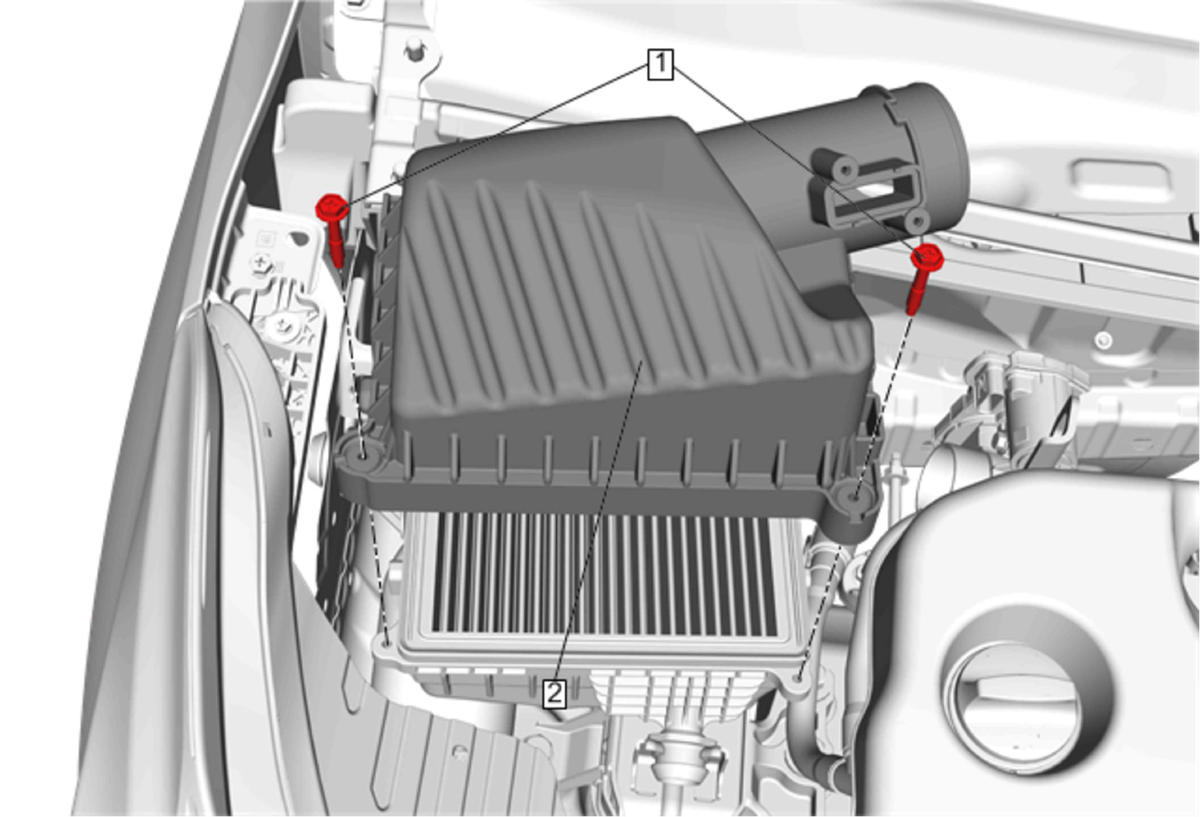

Fig 1: Air Cleaner Housing Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Mass Airflow Sensor Replacement Remove the air cleaner outlet duct from the air cleaner housing cover. Refer to Air Cleaner Outlet Duct Replacement (L5Q) Air Cleaner Outlet Duct Replacement (LV7)
1	Air Cleaner Housing Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Air Cleaner Housing Cover

Callout

Component Name

Preliminary Procedures

Mass Airflow Sensor Replacement
Remove the air cleaner outlet duct from the air cleaner housing cover. Refer to Air Cleaner Outlet Duct Replacement (L5Q) Air Cleaner Outlet Duct Replacement (LV7)

Air Cleaner Housing Bolt [2x]

CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Air Cleaner Housing Cover
