Mass Airflow Sensor Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

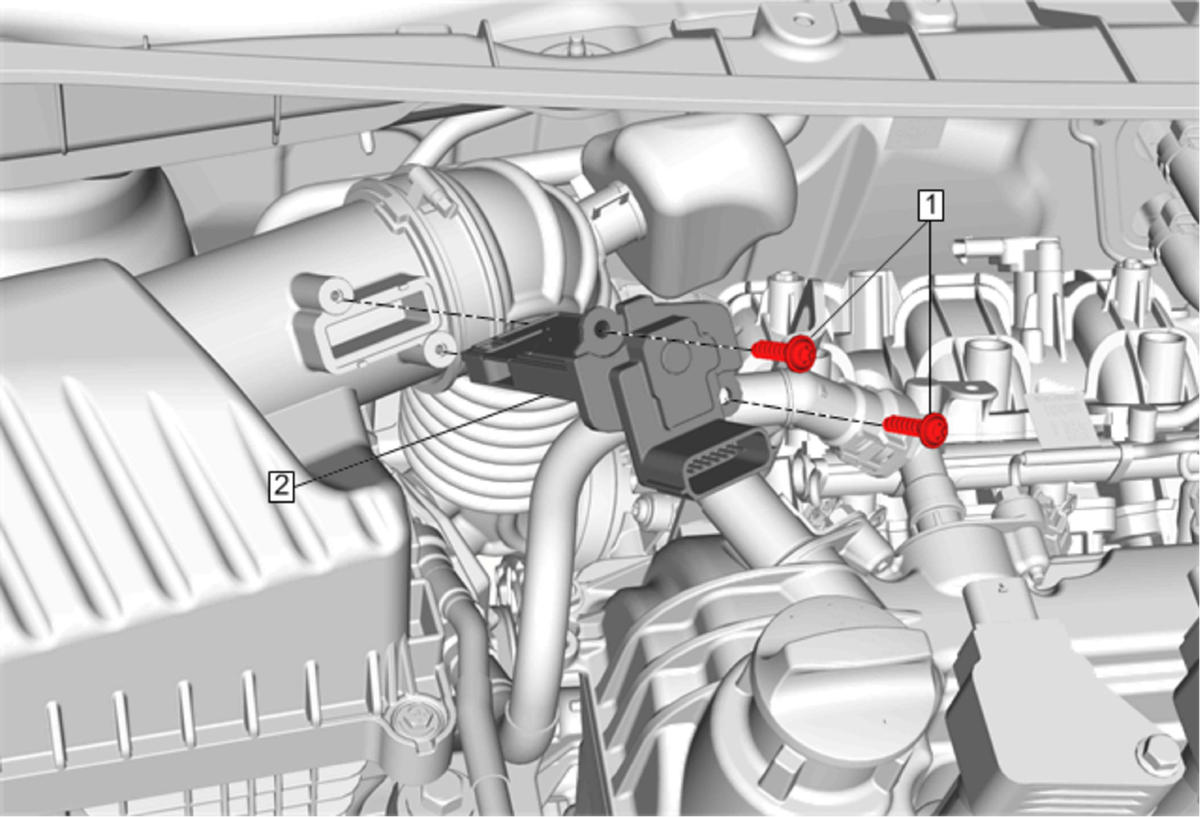

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Fastener (Qty 2)
CAUTION:
Refer to Fastener Caution
. Tighten 2 N.m (18 lb in) |
| 2 | Mass Airflow Sensor Procedure Disconnect the electrical wiring harness connector. |
