Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a)Refrigerant Recovery and Recharging (R-1234yf) .
  2. Drain the coolant. Refer to Cooling System Draining and Filling .
  3. Remove the drive belt. Refer to Drive Belt Replacement (LV7) .
  4. Remove the catalytic converter heat shield. Refer to Catalytic Converter Heat Shield Replacement (LV7) .
  5. Remove the air conditioning compressor tube. Refer to Air Conditioning Compressor Tube Replacement .

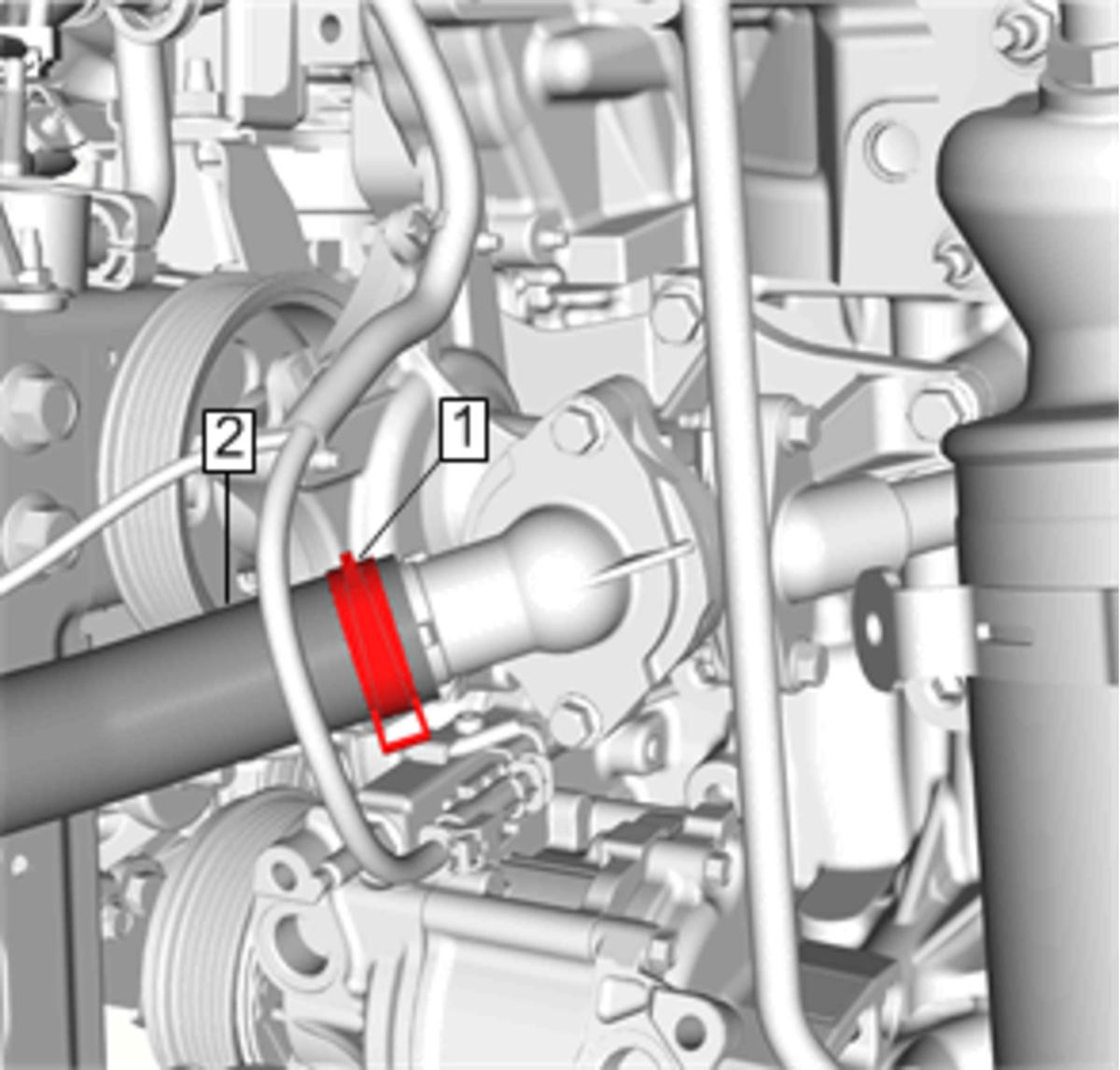

  6. Disconnect the radiator outlet clamp (1) and hose (2).
    Fig 1: Radiator Outlet Clamp And Hose
    GM4281934Courtesy of GENERAL MOTORS COMPANY

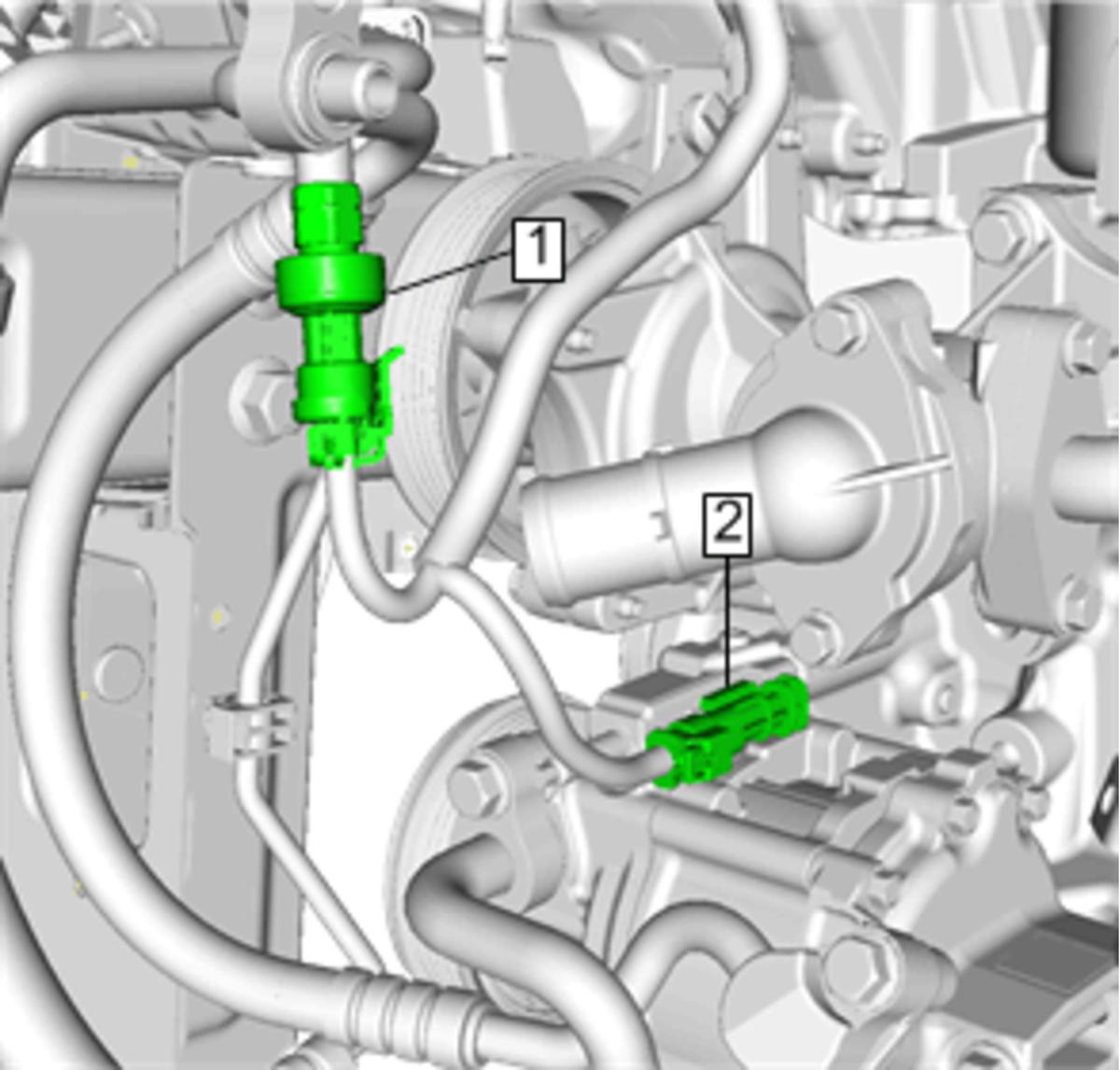

  7. Disconnect the refrigerant pressure sensor connector (1) and compressor clutch connector (2).
    Fig 2: Refrigerant Pressure Sensor Connector And Compressor Clutch Connector
    GM4035828Courtesy of GENERAL MOTORS COMPANY

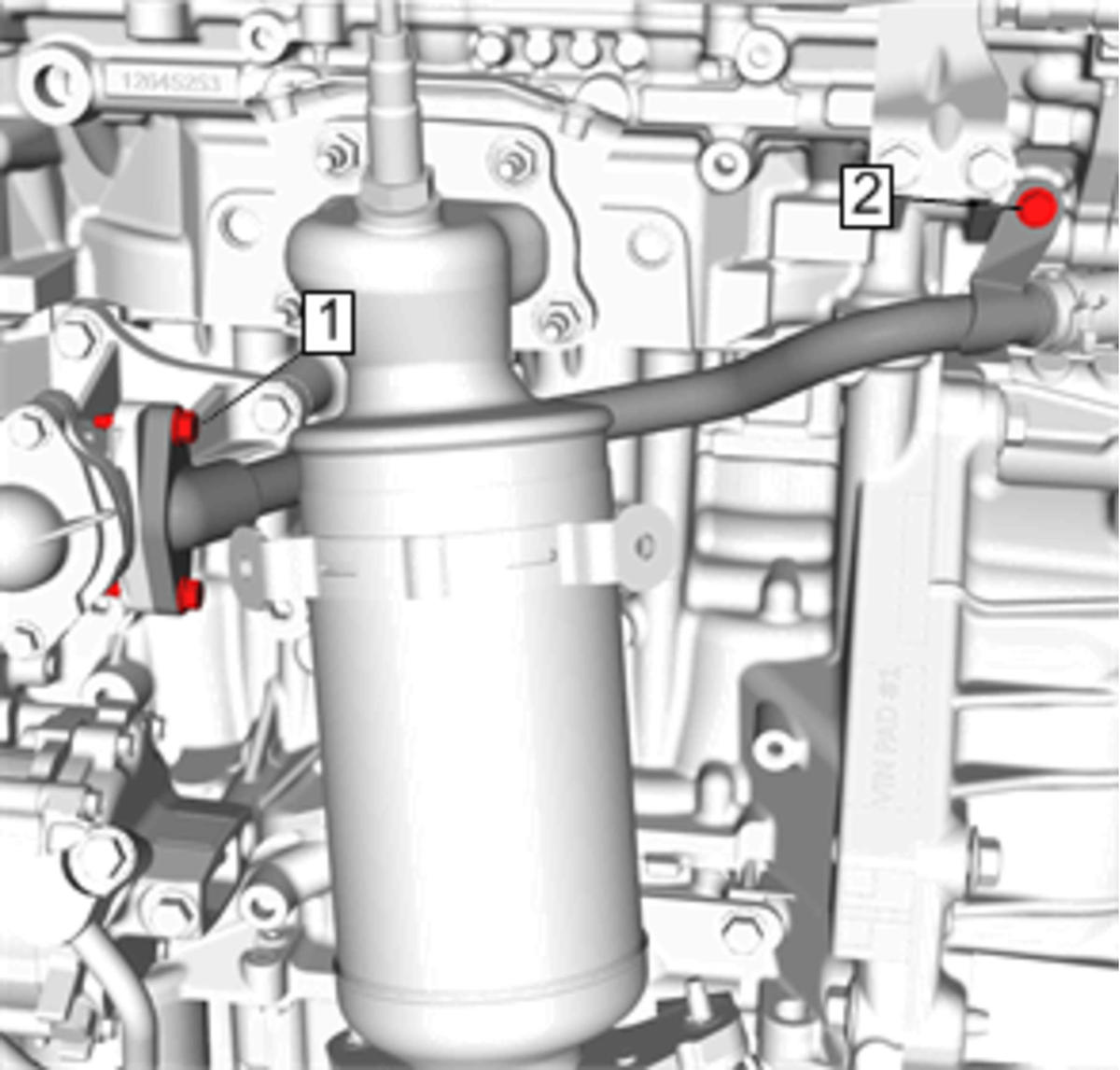

  8. Remove the thermostat bypass pipe bolts (1) and bracket bolt (2).
    Fig 3: Thermostat Bypass Pipe Bolts And Bracket Bolt
    GM4281936Courtesy of GENERAL MOTORS COMPANY

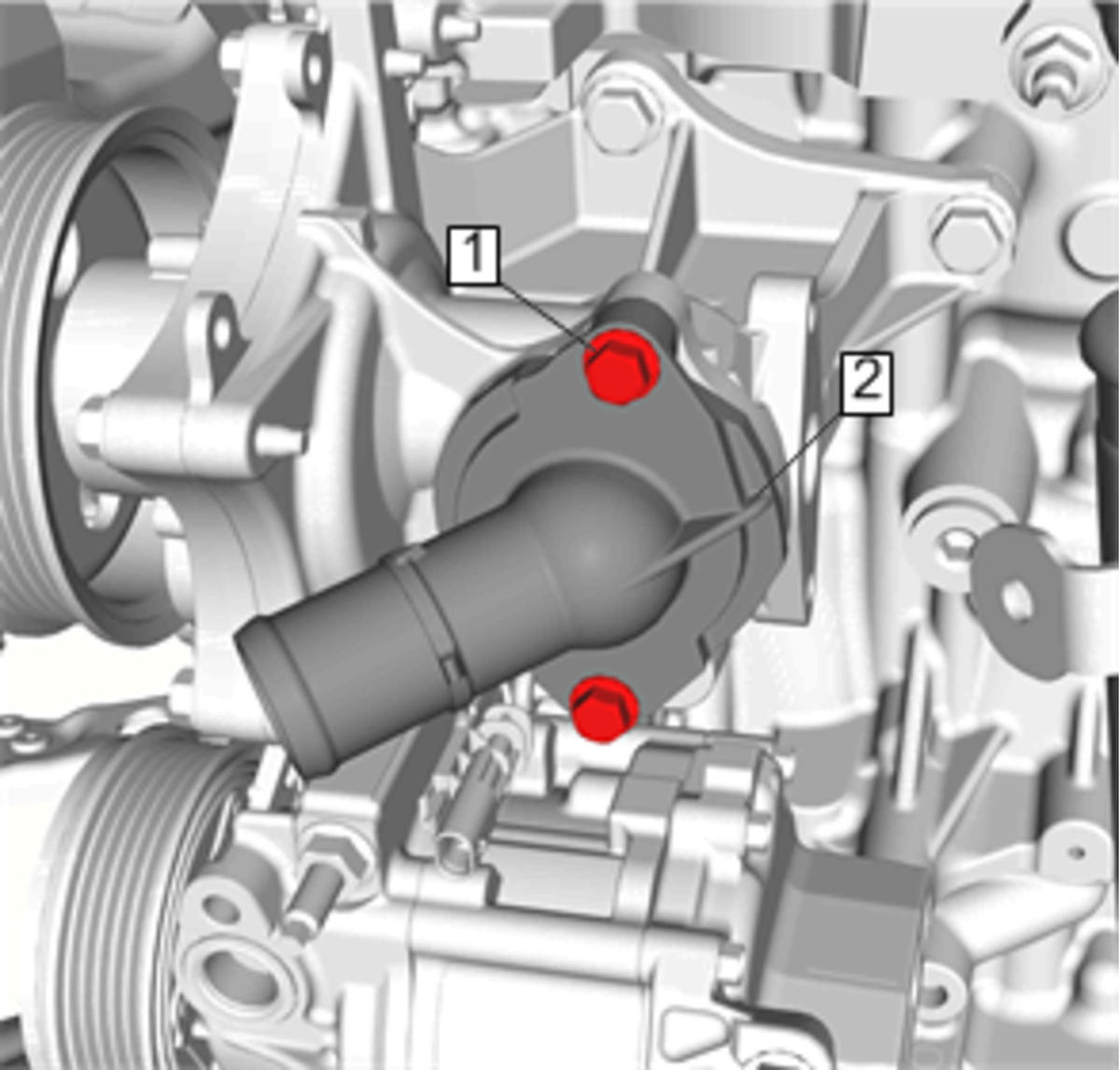

  9. Remove the engine coolant thermostat housing bolts (1).
    Fig 4: Engine Coolant Thermostat Housing and Bolts
    GM4281938Courtesy of GENERAL MOTORS COMPANY
  10. Remove the engine coolant thermostat housing (2).

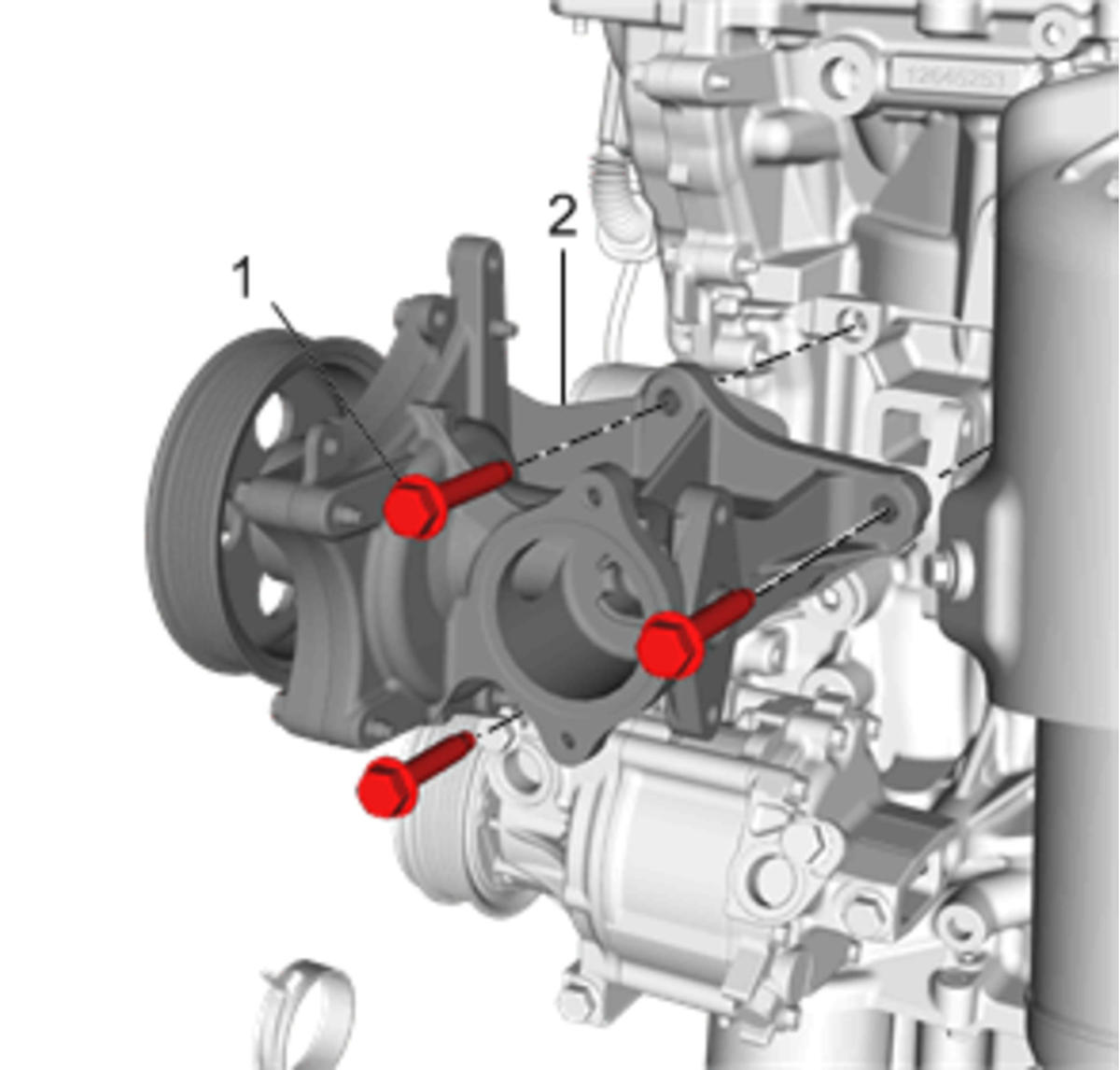

  11. Remove the 3 water pump bolts (1).
    Fig 5: Water Pump Assembly
    GM4230588Courtesy of GENERAL MOTORS COMPANY
  12. Remove the water pump assembly (2).
