Thermostat Bypass Hose Replacement (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

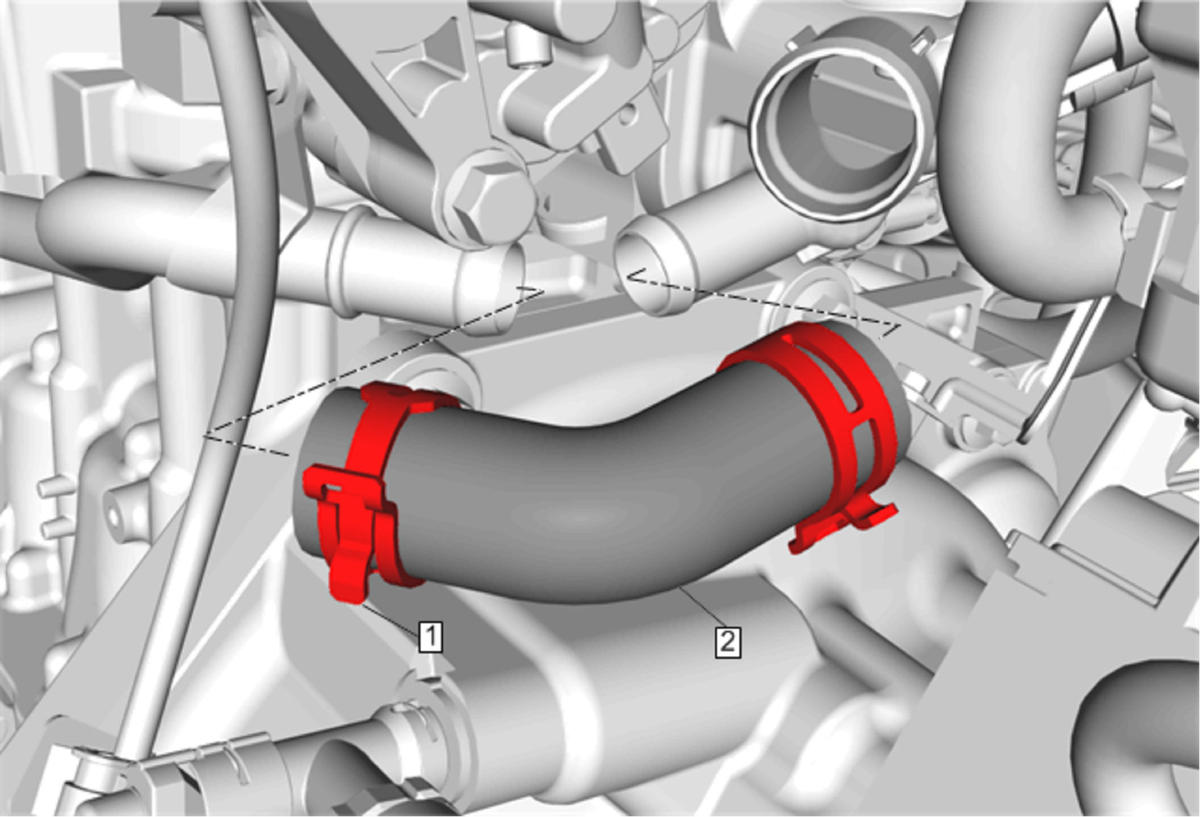

Fig 1: Thermostat Bypass Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: With a pressurized cooling system, the coolant temperature in the radiator can be considerably higher than the boiling point of the solution at atmospheric pressure. Removal of the surge tank cap, while the cooling system is hot and under high pressure, causes the solution to boil instantaneously with explosive force. This will cause the solution to spew out over the engine, the fenders and the person removing the cap. Serious bodily injury may result. Preliminary Procedure Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement . Remove the surge tank fixing bolts and set aside.
1	Hose Clamp (Qty: 2)
2	Thermostat Bypass Hose

Callout

Component Name

WARNING: With a pressurized cooling system, the coolant temperature in the radiator can be considerably higher than the boiling point of the solution at atmospheric pressure. Removal of the surge tank cap, while the cooling system is hot and under high pressure, causes the solution to boil instantaneously with explosive force. This will cause the solution to spew out over the engine, the fenders and the person removing the cap. Serious bodily injury may result.

Preliminary Procedure

Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement .
Remove the surge tank fixing bolts and set aside.

Hose Clamp (Qty: 2)

Thermostat Bypass Hose
