High Mount Stop and Cargo Lamp Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

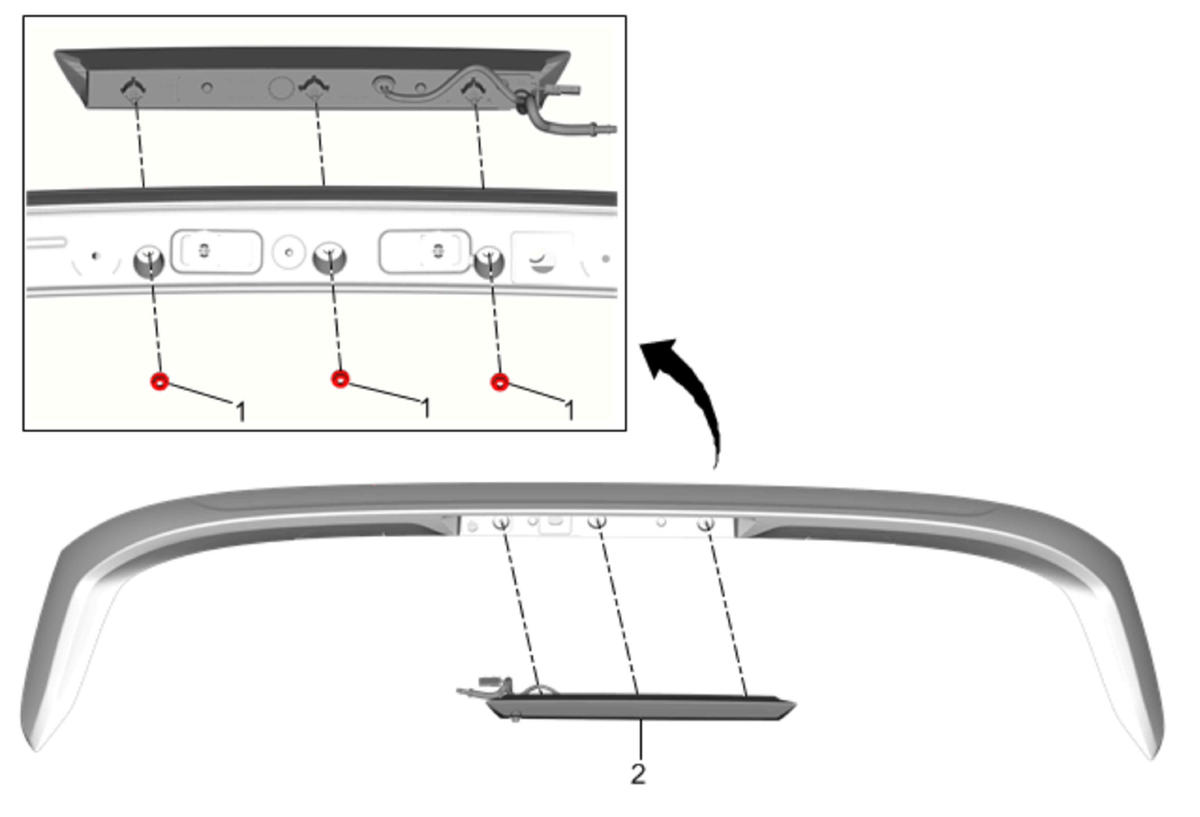

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear end spoiler. Refer to Rear End Spoiler Replacement . |
|
| 1 | High Mount Stop Lamp Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | High Mount Stop Lamp and Cargo Lamp Procedure Release the electrical connector and remove the lamp from the rear spoiler.
NOTE:
The lamp assembly is a light emitting diode (LED) and is serviced as an assembly. |
