Rear End Spoiler Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

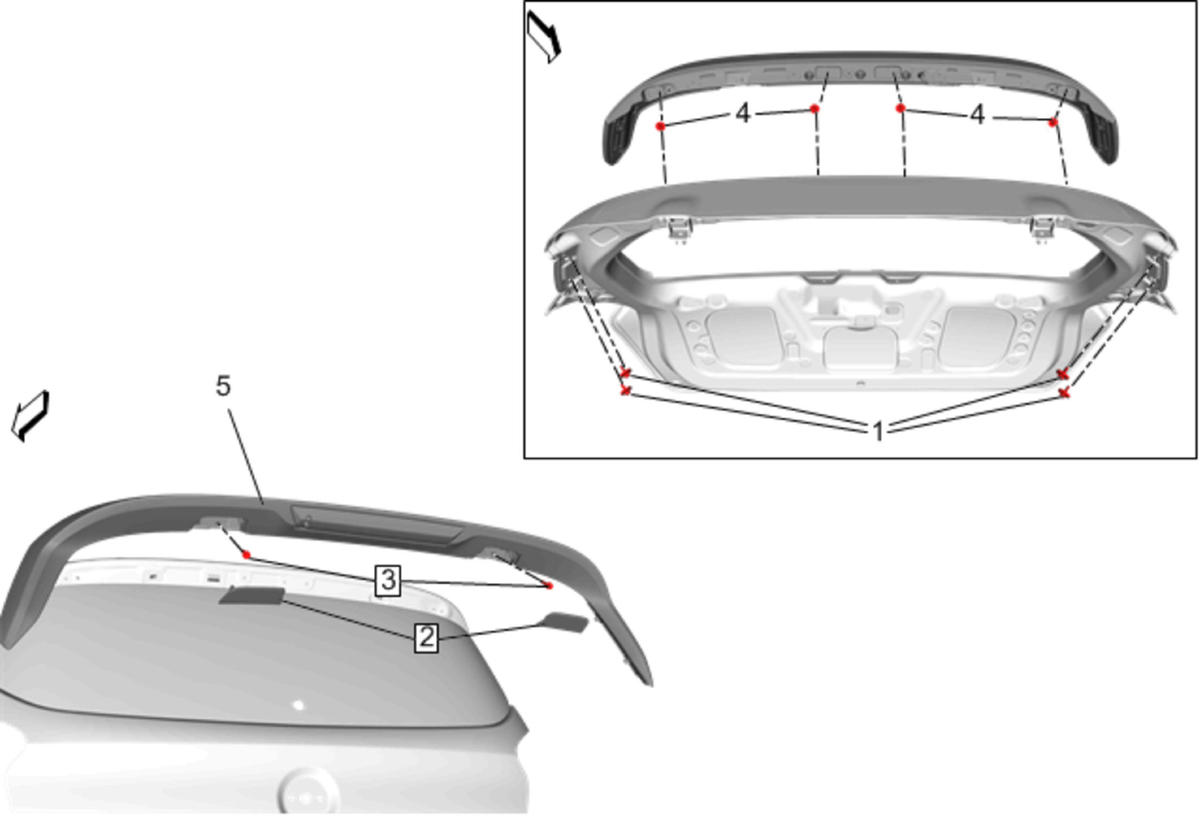

Fig 1: Rear End Spoiler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Rear End Spoiler Bolt - Inner (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Open the liftgate. Remove the bolts. Tighten 5 N.m (44 lb in)
2	Rear End Spoiler Bolt Cover NOTE: Use a plastic flat bladed tool to remove the cover.
3	Rear End Spoiler Bolt - Outer (Qty: 2) Tighten 5 N.m (44 lb in)
4	Rear End Spoiler Plastic Clip (Qty: 4)
5	Rear End Spoiler Procedure Disconnect the rear washer hose before removing the rear end spoiler. Disconnect the center high mount stop lamp wiring harness before removing the rear end spoiler.
