Headlamp Bulb Replacement (Projection/SBV)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

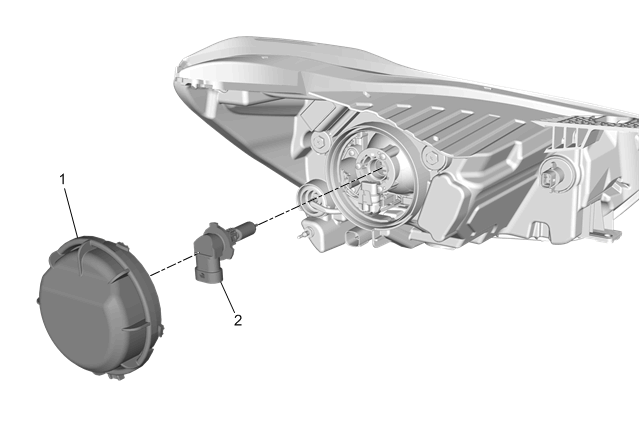

Fig 1: Headlamp Bulb (Projection/SBV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the headlamp assembly. Refer to Headlamp Replacement (Projection/SBV) .
1	Headlamp Bulb Dust Cover
2	Headlamp Bulb Procedure Disconnect electrical connector. Rotate headlamp bulb counter-clockwise and remove from the headlamp housing.

Callout

Component Name

Preliminary Procedure
Remove the headlamp assembly. Refer to Headlamp Replacement (Projection/SBV) .

Headlamp Bulb Dust Cover

Headlamp Bulb

Procedure

Disconnect electrical connector.
Rotate headlamp bulb counter-clockwise and remove from the headlamp housing.
