Front Bumper Lower Impact Bar Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

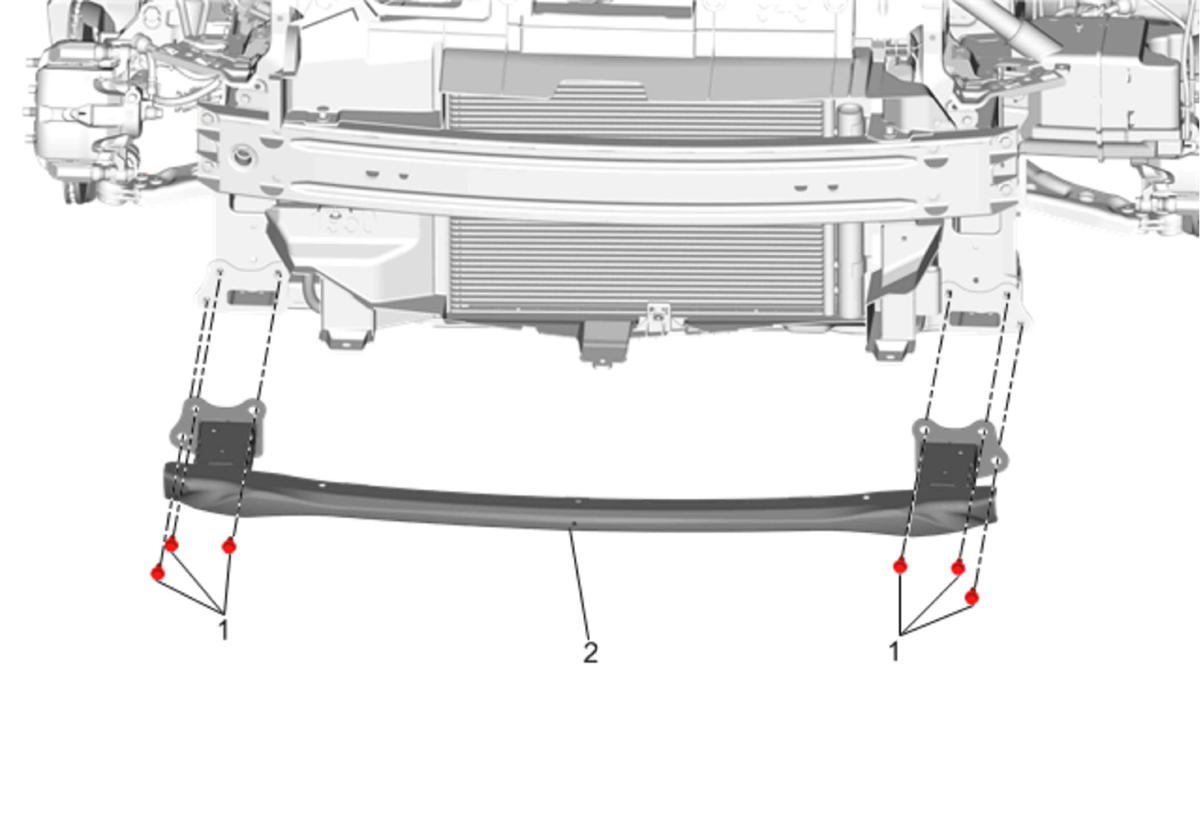

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Bumper Lower Impact Bar Bracket Bolt (Qty: 6)
CAUTION:
Refer to Fastener Caution
. Tighten 22 N.m (16 lb ft) |
| 2 | Front Bumper Lower Impact Bar |
