Front Bumper Lower Fascia Replacement (Active)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

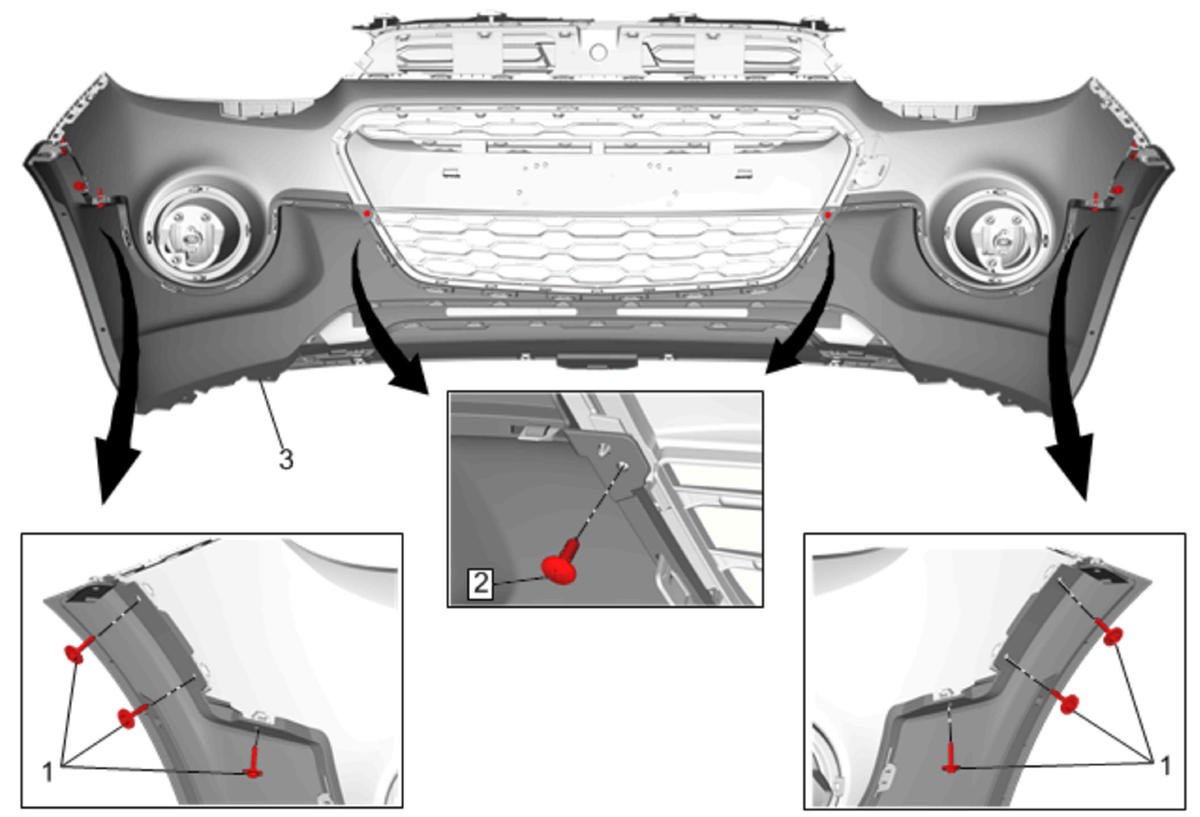

Fig 1: Front Bumper Lower Fascia (Active)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement . Remove the front bumper fascia skid plate. Refer to Front Bumper Fascia Skid Plate Replacement (Active) .
1	Front Bumper Fascia Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Radiator Grille Bolt (Qty: 2) Tighten 2 N.m (18 lb in)
3	Front Bumper Lower Fascia Procedure Use a small flat-bladed tool to release the retainer from the front bumper upper fascia. NOTE: Please be careful to remove the front bumper lower fascia, It can be easily damaged.
