Airbag Steering Wheel Module Coil Centering

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the following conditions before centering the steering wheel inflatable restraint module coil:

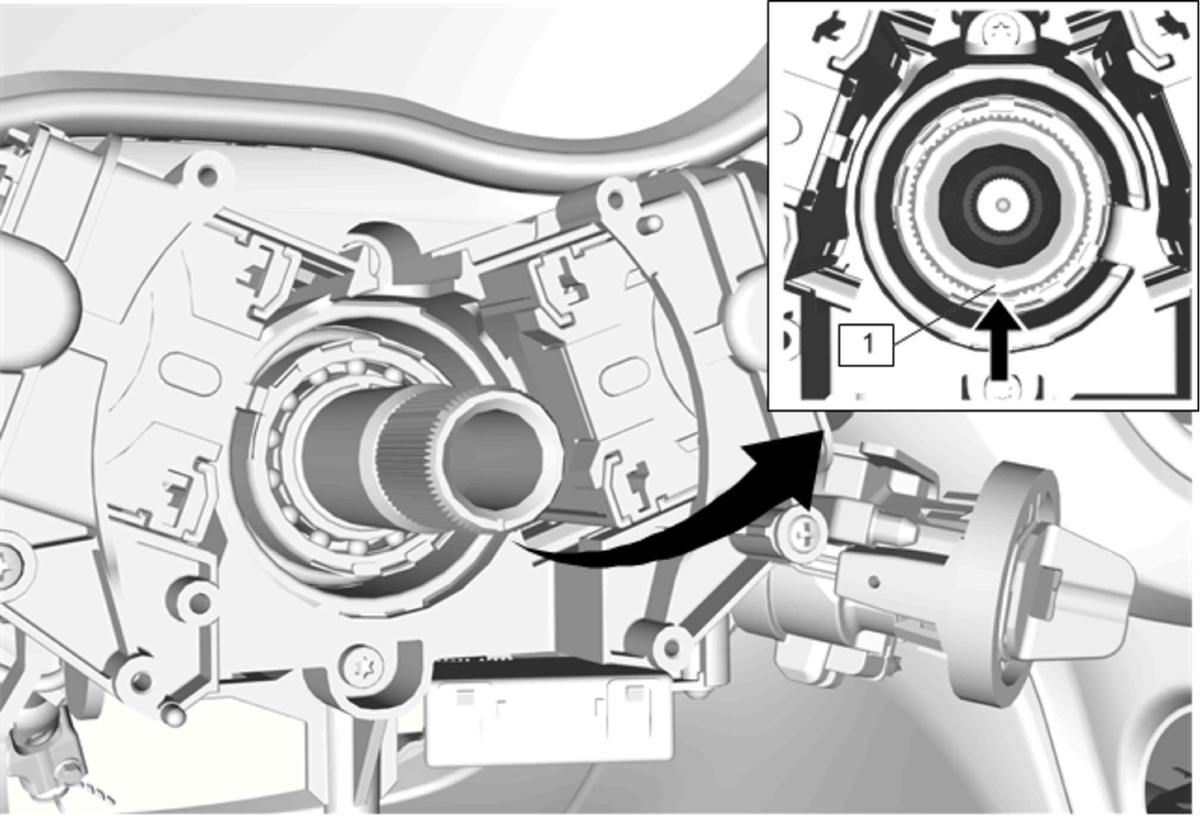

    Fig 1: Centering Mark Of Steering Shaft At 6 O'clock Position
    GM4053767Courtesy of GENERAL MOTORS COMPANY
    CAUTION: The new SIR coil assembly will be centered. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction.
    • The wheels on the vehicle are straight ahead.
    • The centering mark (1) of the steering shaft is in the 6 o'clock position.
  2. Turn the lobe of the coil clockwise until the coil ribbon stops. Do not force.
  3. Turn the lobe of the coil counterclockwise approximately 3 turns to the Neutral position.
  4. Properly align until the arrow faces the right lower bolt. This indicates the CENTER position.

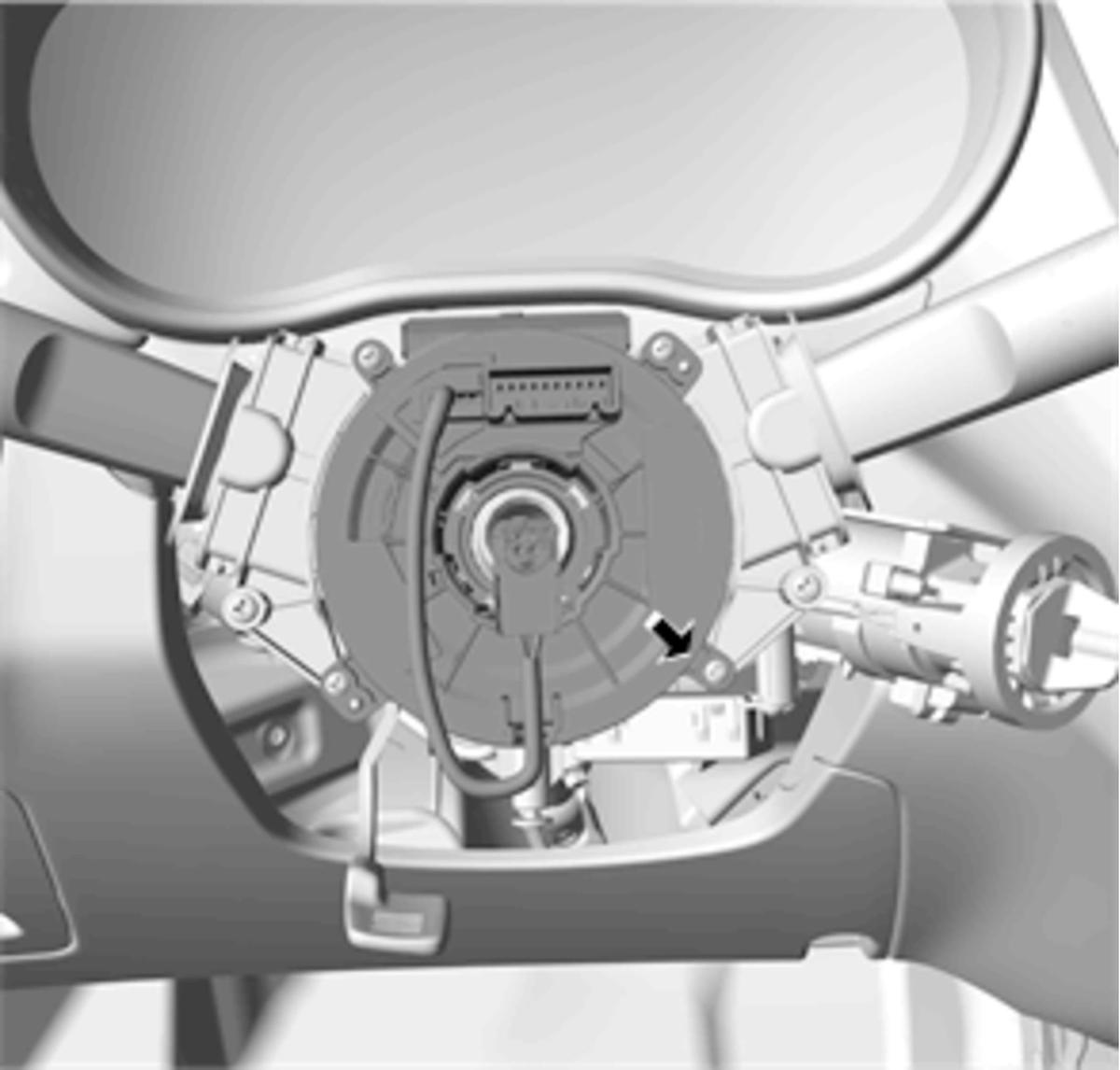

    Fig 2: Aligning Arrow Facing Right Lower Bolt Indicates Center Position
    GM4053768Courtesy of GENERAL MOTORS COMPANY
