Rear Seat Outboard Seat Back Airbag Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

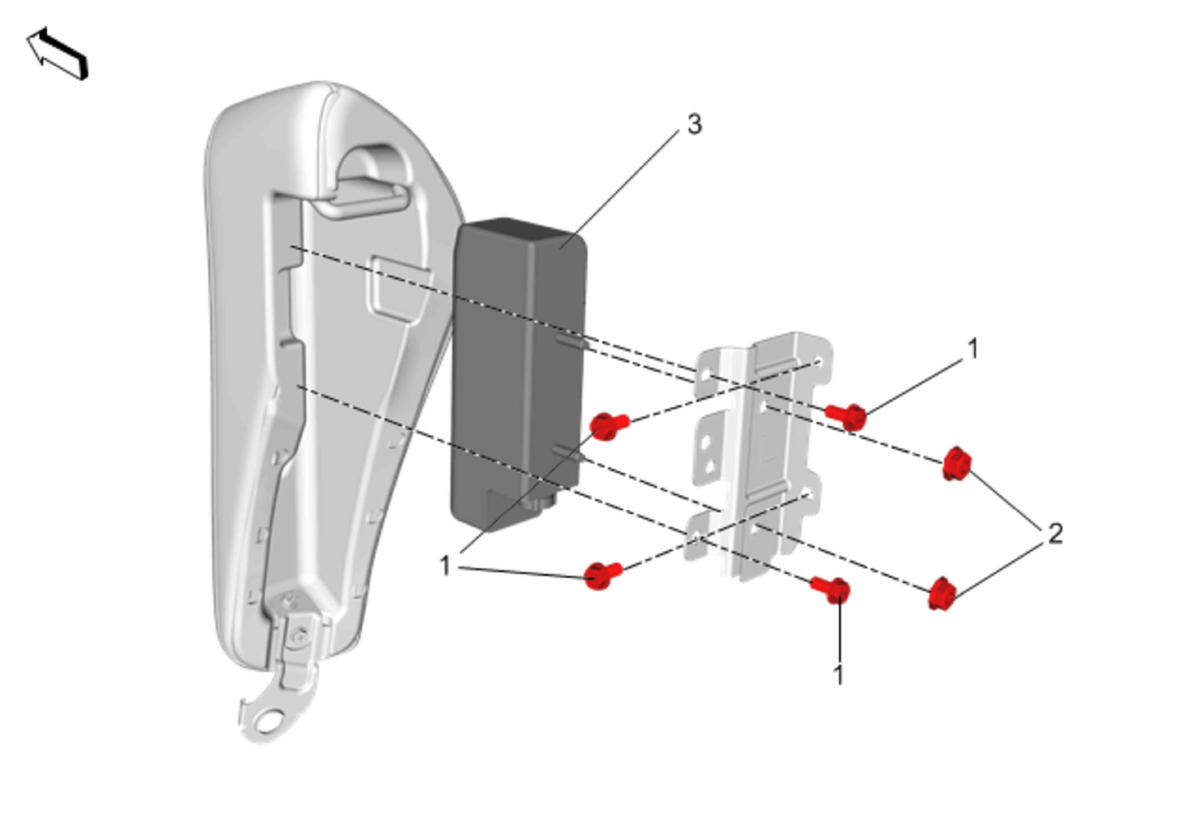

Fig 1: Rear Seat Side Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system, if equipped. Refer to SIR Disabling and Enabling . Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement .
1	Rear Seat Side Inflatable Restraint Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Seat Side Inflatable Restraint Module Nut (Qty: 2) Tighten 4.5 N.m (40 lb in)
3	Rear Seat Side Inflatable Restraint Module Procedure Take the cotton fabric that covers module off. Remove the connector position assurance (CPA) from the module electrical connector. Disconnect the electrical connector.
