Rear Seat Back Bolster Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

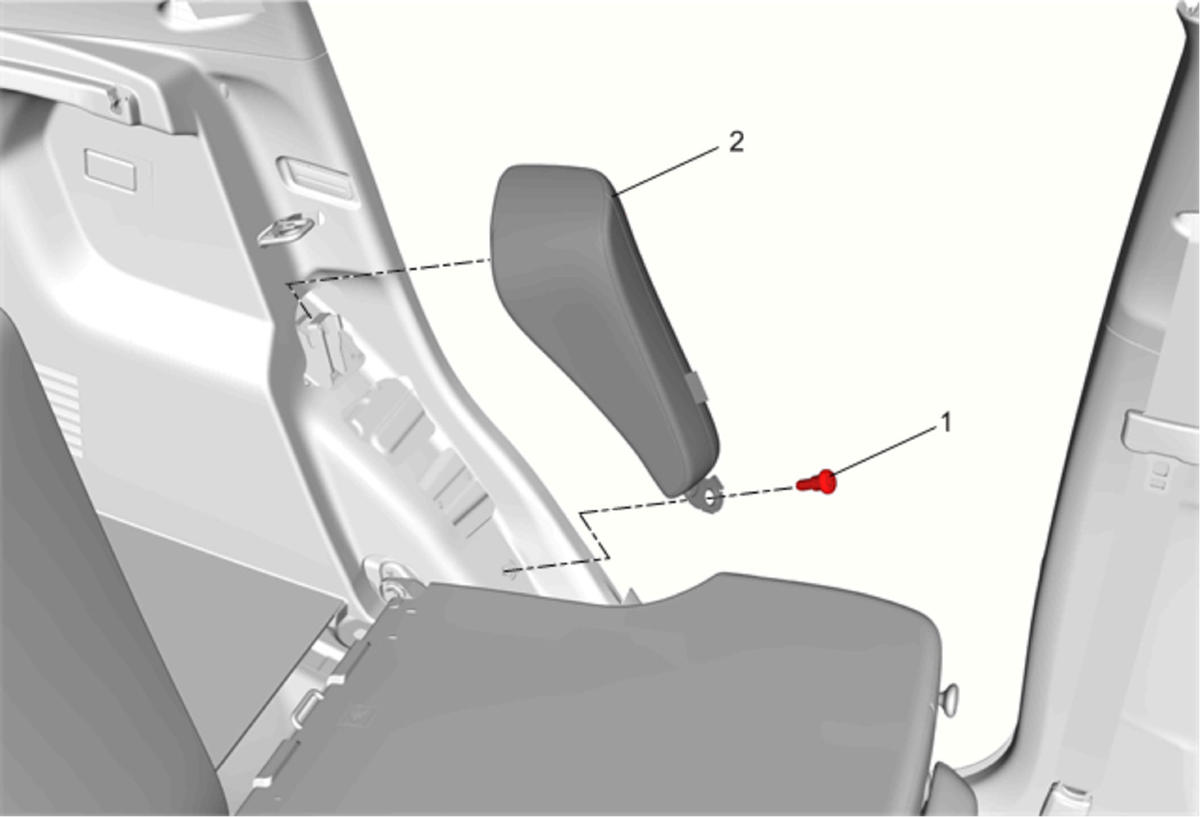

Fig 1: Rear Seat Back Bolster
GM4140952Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Belt Anchor Plate Bolt
CAUTION: Refer to Fastener Caution .

Tighten
40 N.m (30 lb ft)
2 Rear Seat Back Cushion Bolster
WARNING: Refer to SIR Warning .

Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Fold rear seat back cushion down.
  3. Pull the seat back cushion bolster up to remove it from the rear seat armrest bracket.
  4. Disconnect the electrical connector.
