Rear Side Door Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

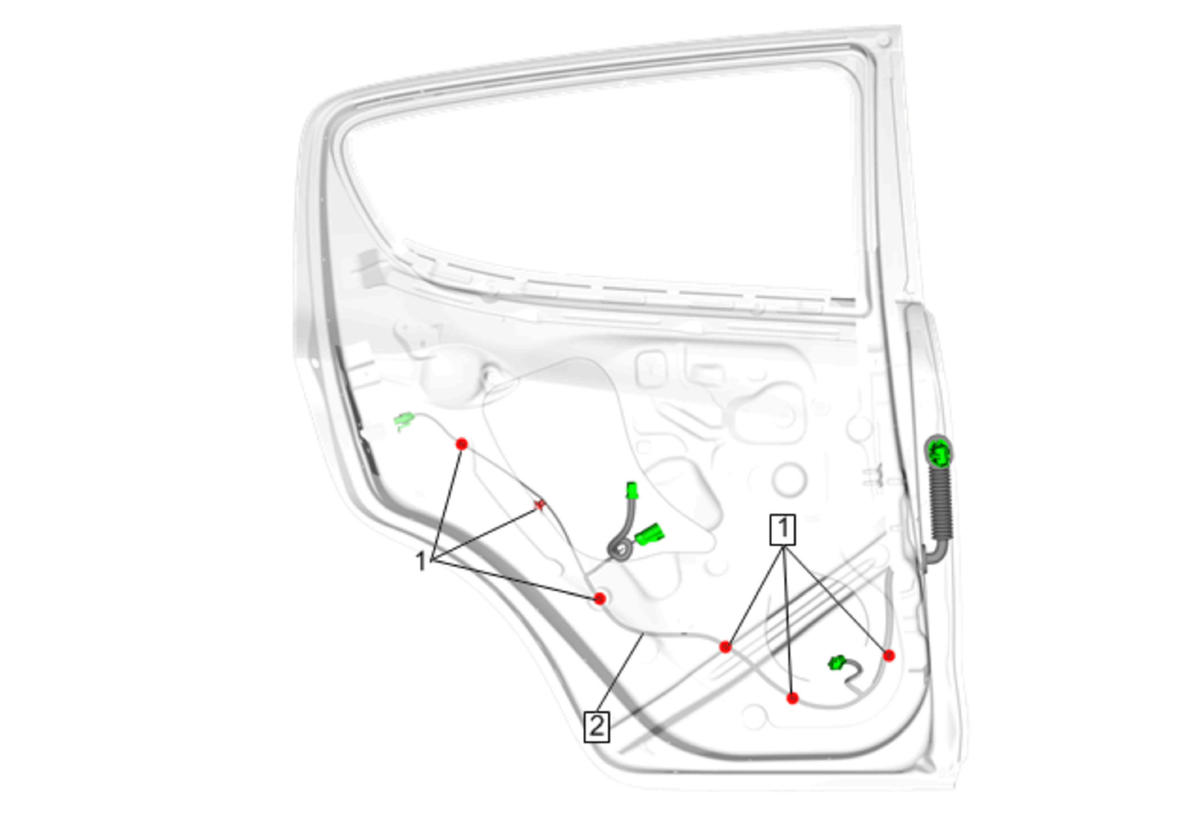

Fig 1: Rear Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door water deflector. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Rear Side Door Wiring Harness Retainer (Qty: 6)
2	Rear Side Door Wiring Harness Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the rear side door water deflector.
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .

Rear Side Door Wiring Harness Retainer (Qty: 6)

Rear Side Door Wiring Harness
Procedure
Disconnect the electrical connector.
