Rear Side Door Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

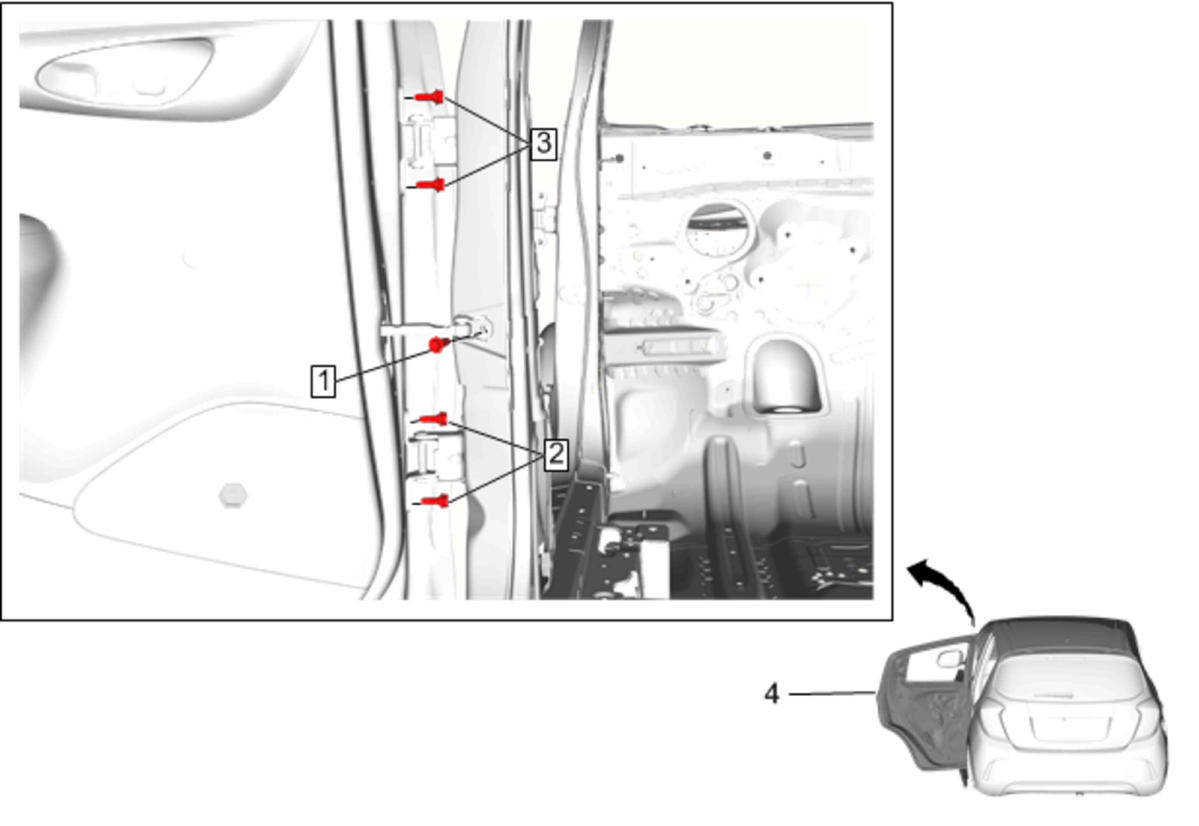

Fig 1: Rear Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Rear Side Door Lower Hinge Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
3	Rear Side Door Upper Hinge Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
4	Procedure Transfer all of the internal components. Remove the rear side door electric connector Adjust the rear side door as needed. Refer to Rear Side Door Adjustment .
