Rear Side Door Adjustment

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

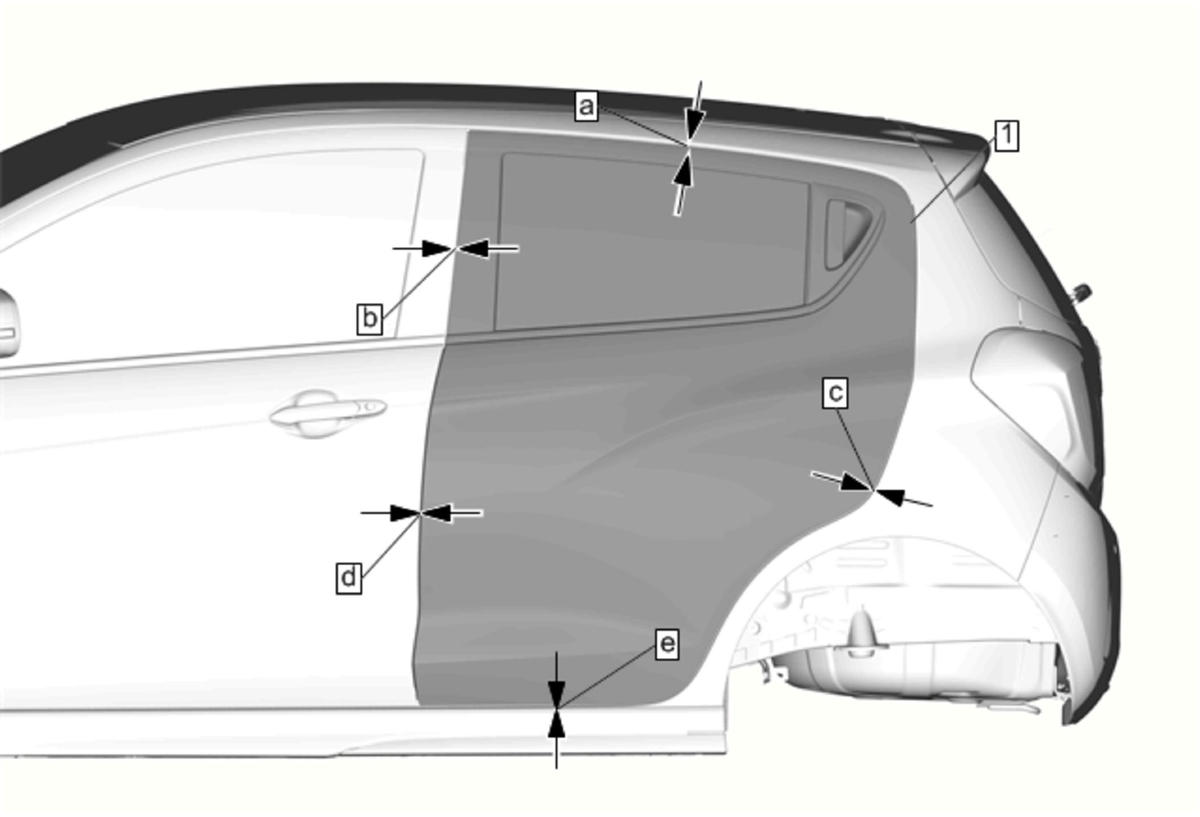

Fig 1: Rear Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door CAUTION: Refer to Fastener Caution . Procedure Loosen the 4 rear door hinge bolts to adjust the rear door. Adjust the rear door in order to obtain an even gap between the rear door and the body side outer, the quarter outer panel, the rocker panel and the front side door and so that the rear door is flush with the body side outer, the quarter outer panel, the rocker panel and the front side door. Adjustment Rear side door to body side outer (a) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in) Rear side door to front side door (b) 3.5 mm ± 1.0 mm (0.14 in ± 0.04 in) Rear side door to quarter outer panel (c) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in) Rear side door to front side door (d) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in) Rear side door to rocker panel (e) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in) Tighten 28 N.m (21 lb ft)

Callout

Component Name

Rear Side Door

CAUTION:

Refer to Fastener Caution .

Procedure

Loosen the 4 rear door hinge bolts to adjust the rear door.
Adjust the rear door in order to obtain an even gap between the rear door and the body side outer, the quarter outer panel, the rocker panel and the front side door and so that the rear door is flush with the body side outer, the quarter outer panel, the rocker panel and the front side door.

Adjustment

Rear side door to body side outer (a) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
Rear side door to front side door (b) 3.5 mm ± 1.0 mm (0.14 in ± 0.04 in)
Rear side door to quarter outer panel (c) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
Rear side door to front side door (d) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
Rear side door to rocker panel (e) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in)

Tighten
28 N.m (21 lb ft)
