Headlamp Mount Panel Bracket Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

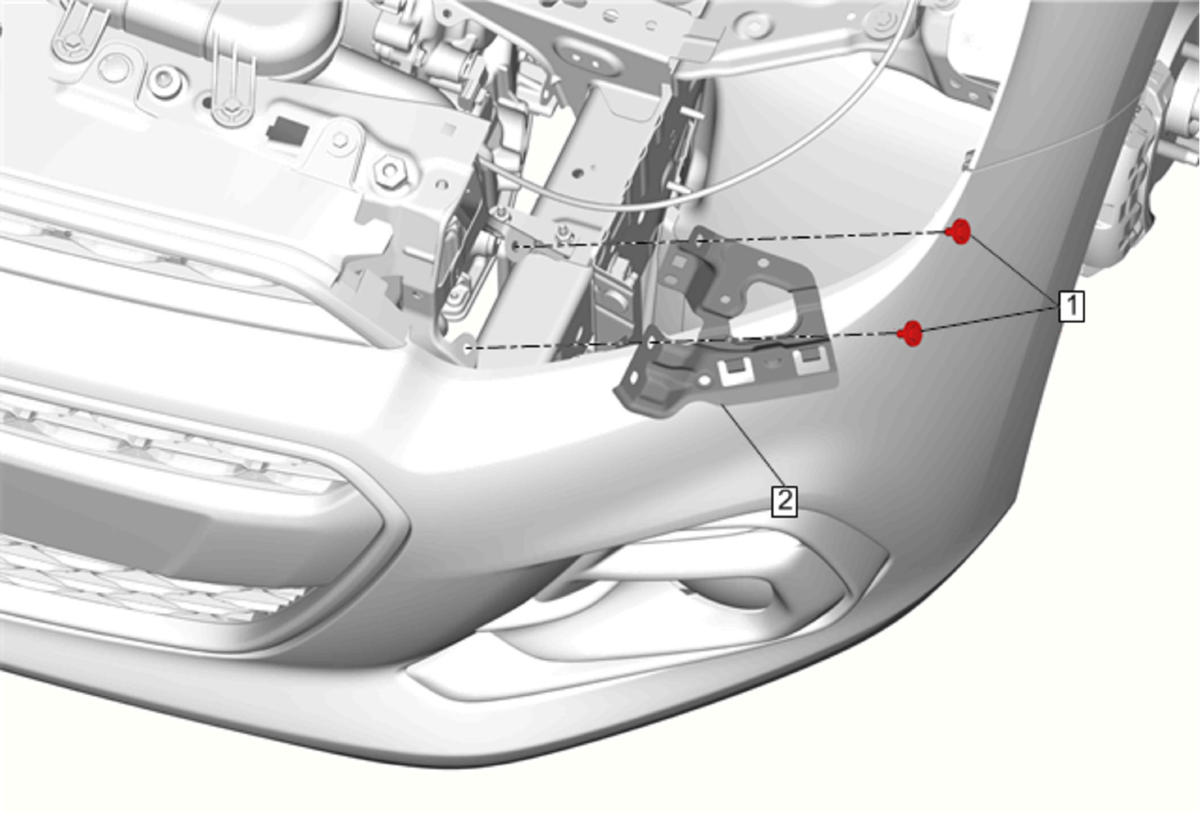

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left or right headlamp, as needed. Refer to Headlamp Replacement (Projection/SBV)Headlamp Replacement (BASE/SBM) . |
|
| 1 | Headlamp Mount Panel Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Headlamp Mount Panel Bracket |
