Front Side Door Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

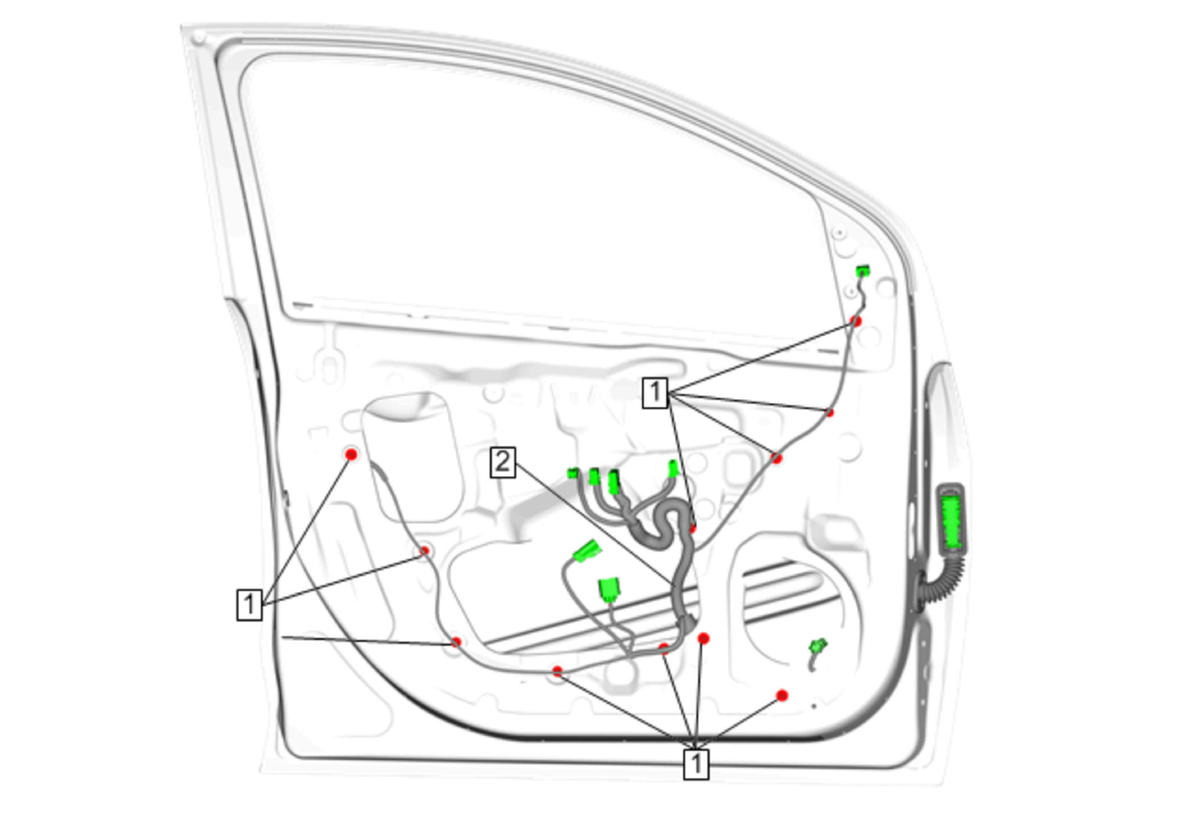

Fig 1: Front Side Door Wiring Harness
GM4025193Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door water deflector.
  3. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Front Side Door Wiring Harness Retainer (Qty: 11)
2 Front Side Door Wiring Harness
Procedure
Disconnect the electrical connector.
