Front Side Door Weatherstrip Replacement - Door Side

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

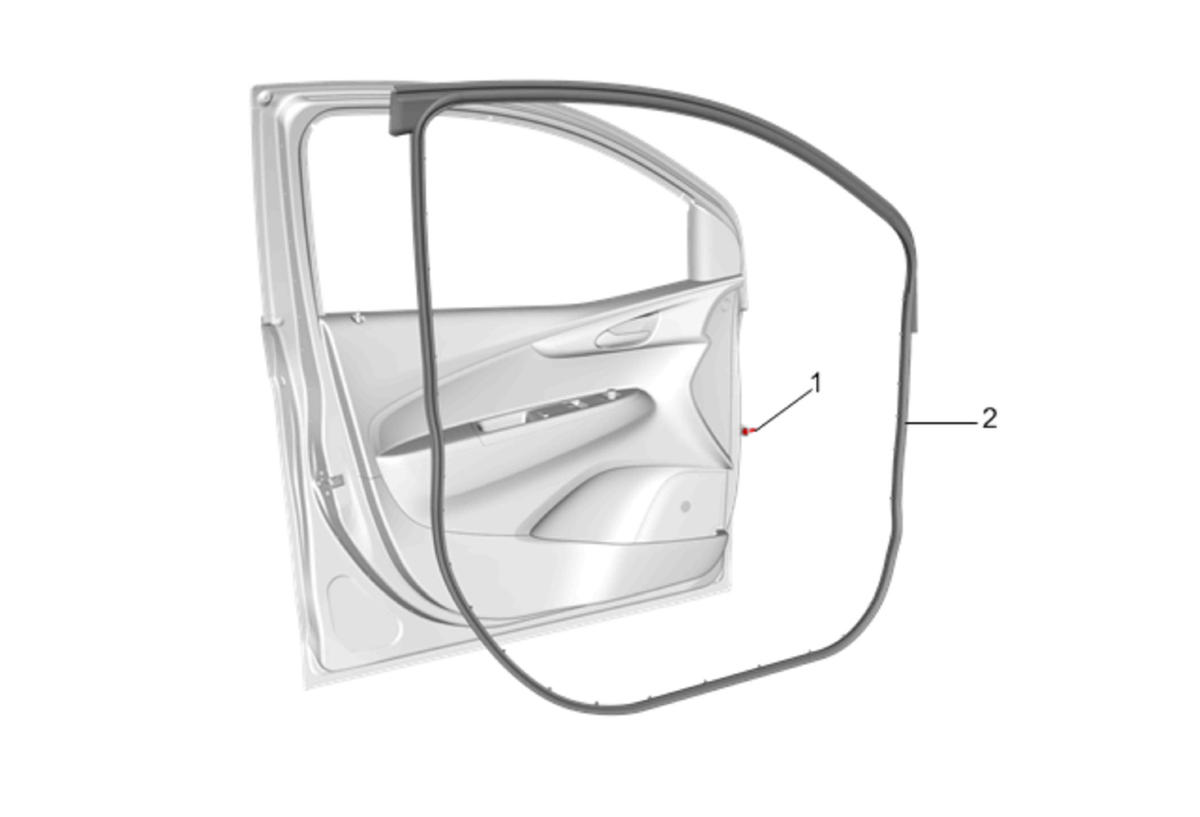

Fig 1: Front Side Door Weatherstrip - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the front side door check link bolt from the body side only. Refer to Front Side Door Check Link Replacement . Tighten 28 N.m (21 lb ft)
2	Front Side Door Weatherstrip Procedure Open the front side door to the fully open position. Use a suitable tool, remove the push-in retainer from around the door. Ensure that the weatherstrip is fully seated in the door frame retainer. Verify proper door operation. NOTE: Water test the door area after replacing the door weatherstrip to ensure no leaks.

Callout

Component Name

Front Side Door Check Link Bolt

CAUTION: Refer to Fastener Caution .

Procedure
Remove the front side door check link bolt from the body side only. Refer to Front Side Door Check Link Replacement .
Tighten
28 N.m (21 lb ft)

Front Side Door Weatherstrip

Procedure

Open the front side door to the fully open position.
Use a suitable tool, remove the push-in retainer from around the door.
Ensure that the weatherstrip is fully seated in the door frame retainer.
Verify proper door operation.

NOTE: Water test the door area after replacing the door weatherstrip to ensure no leaks.
