Front Side Door Check Link Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

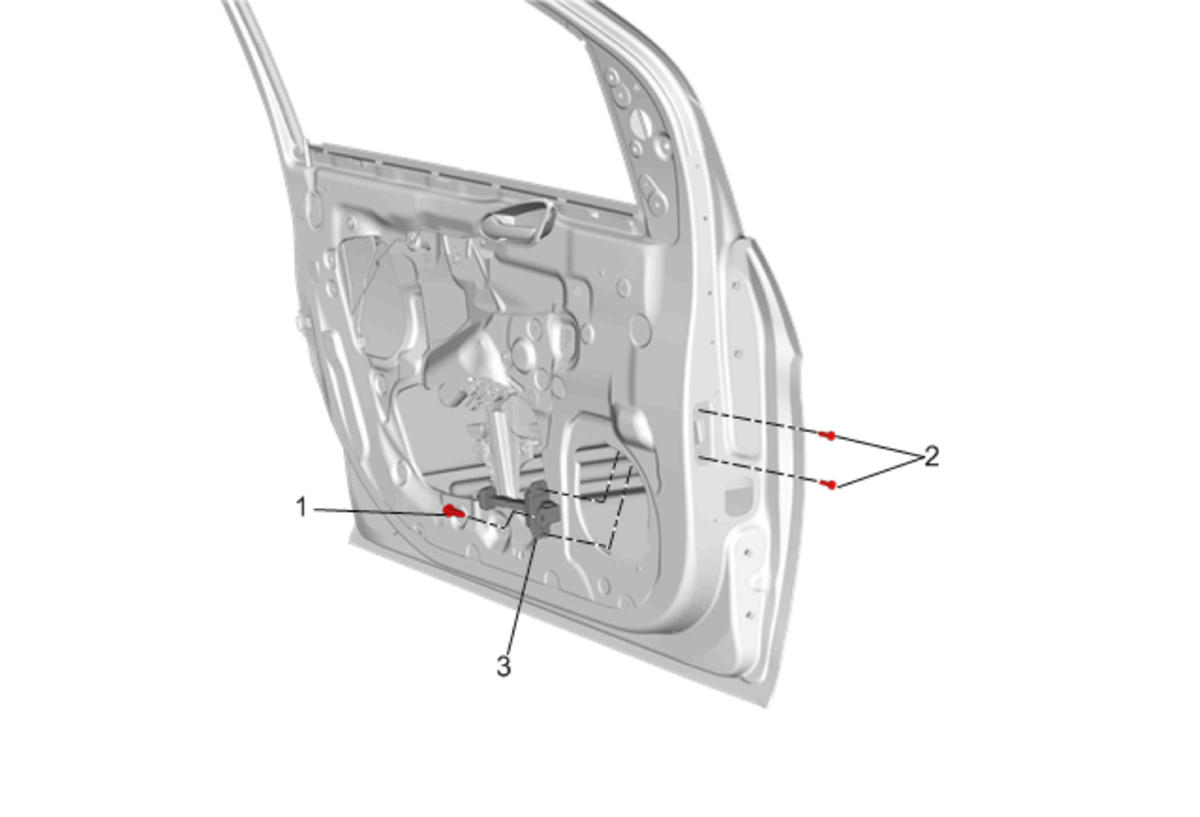

Fig 1: Front Side Door Check Link

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the window in the full up position. Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the front speaker. Refer to Radio Front Side Door Speaker Replacement . Remove the water deflector.
1	Front Side Door Check Link Bolt to Body CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front Side Door Check Link Bolt (Qty: 2) Tighten 9 N.m (80 lb in)
3	Front Side Door Check Link Assembly
